Removal And Installation: Notes

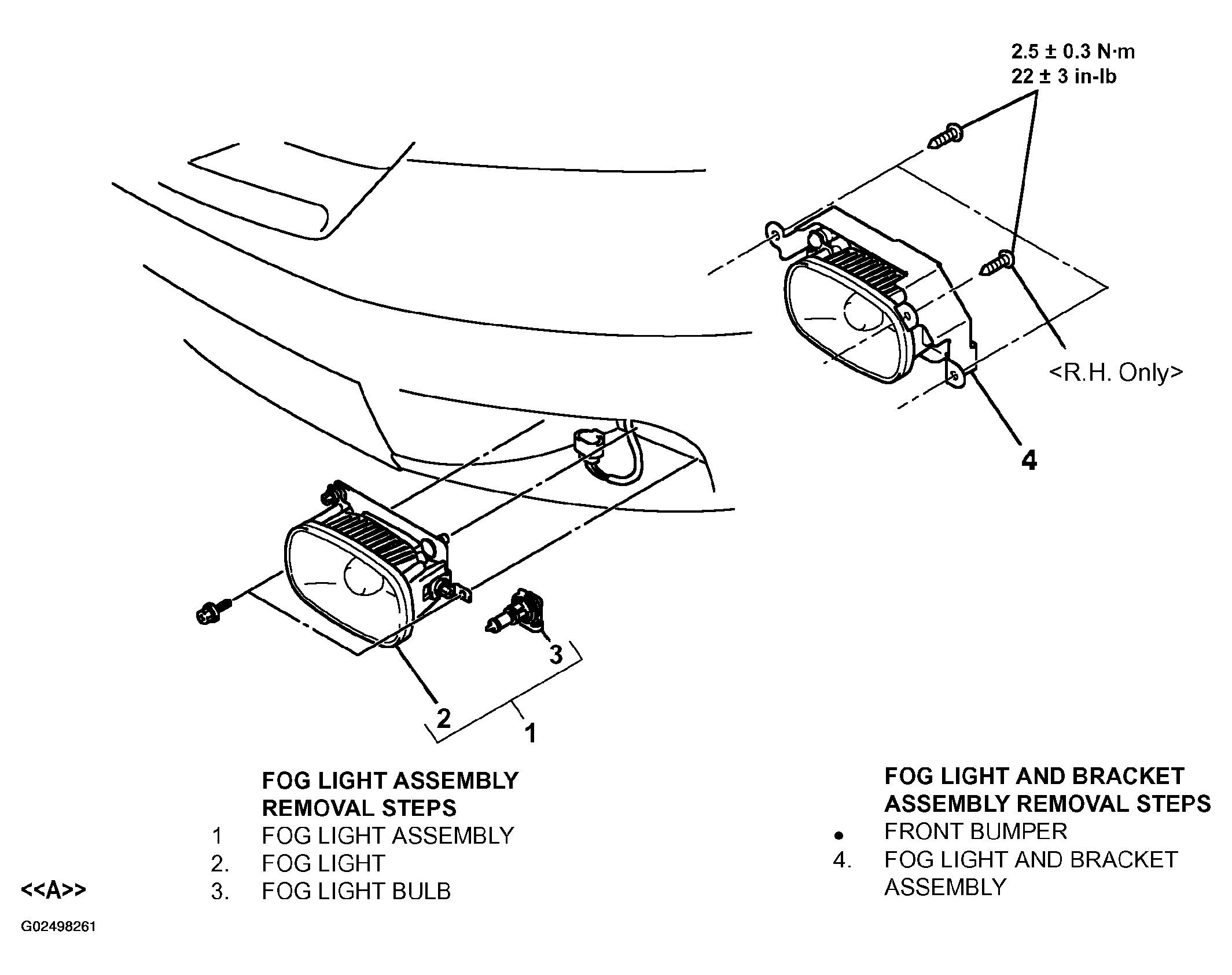

Fig 1: Removing/Installing Fog Light

G02498261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
