Home >> Mitsubishi >> 2005 >> Outlander XLS, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Body >> Fender >> Fender >> Removal And Installation >> Notes

Removal And Installation: Notes

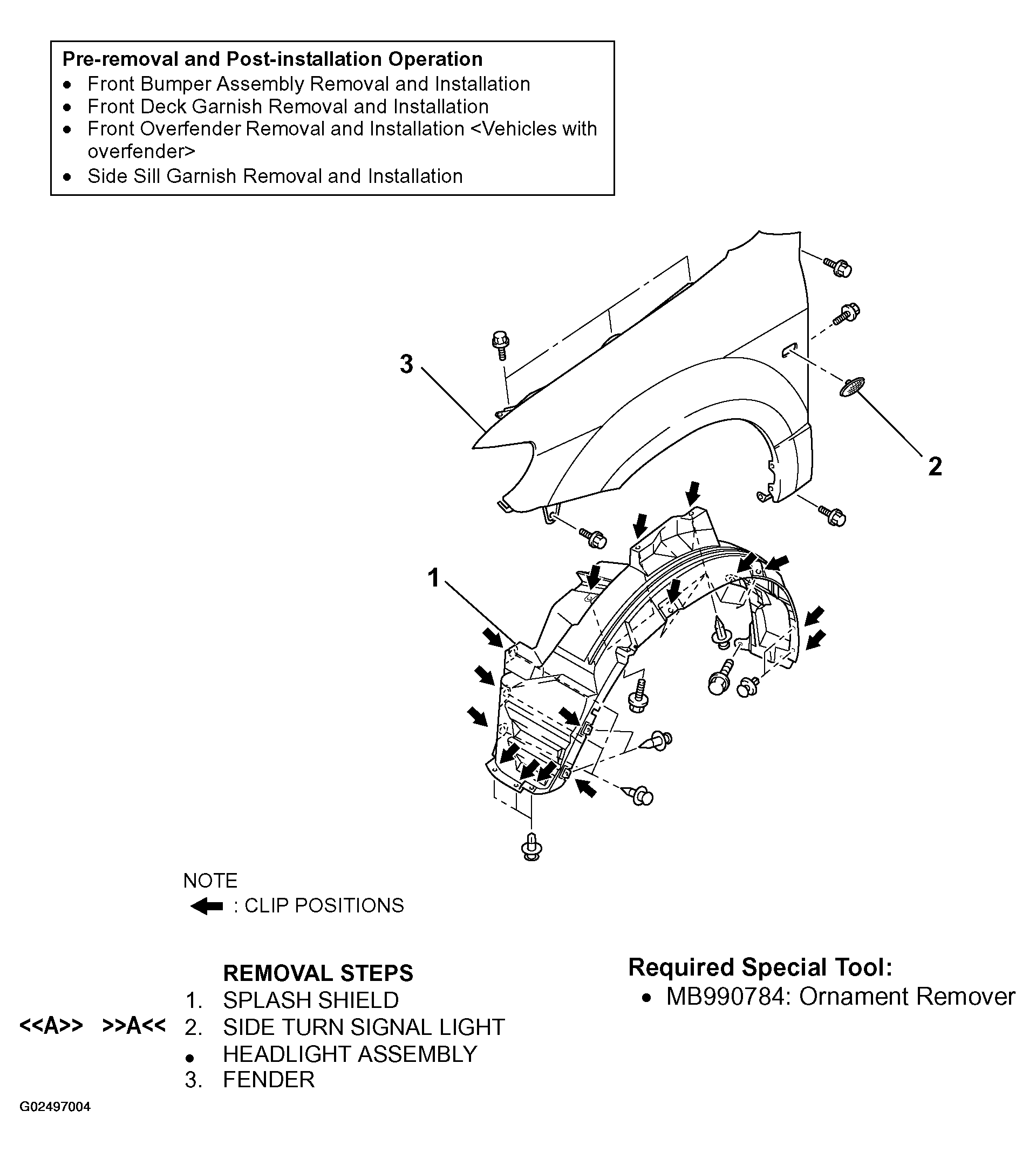

Fig 1: Identifying Removing/Installing Fender
G02497004Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
