Disassembly And Assembly

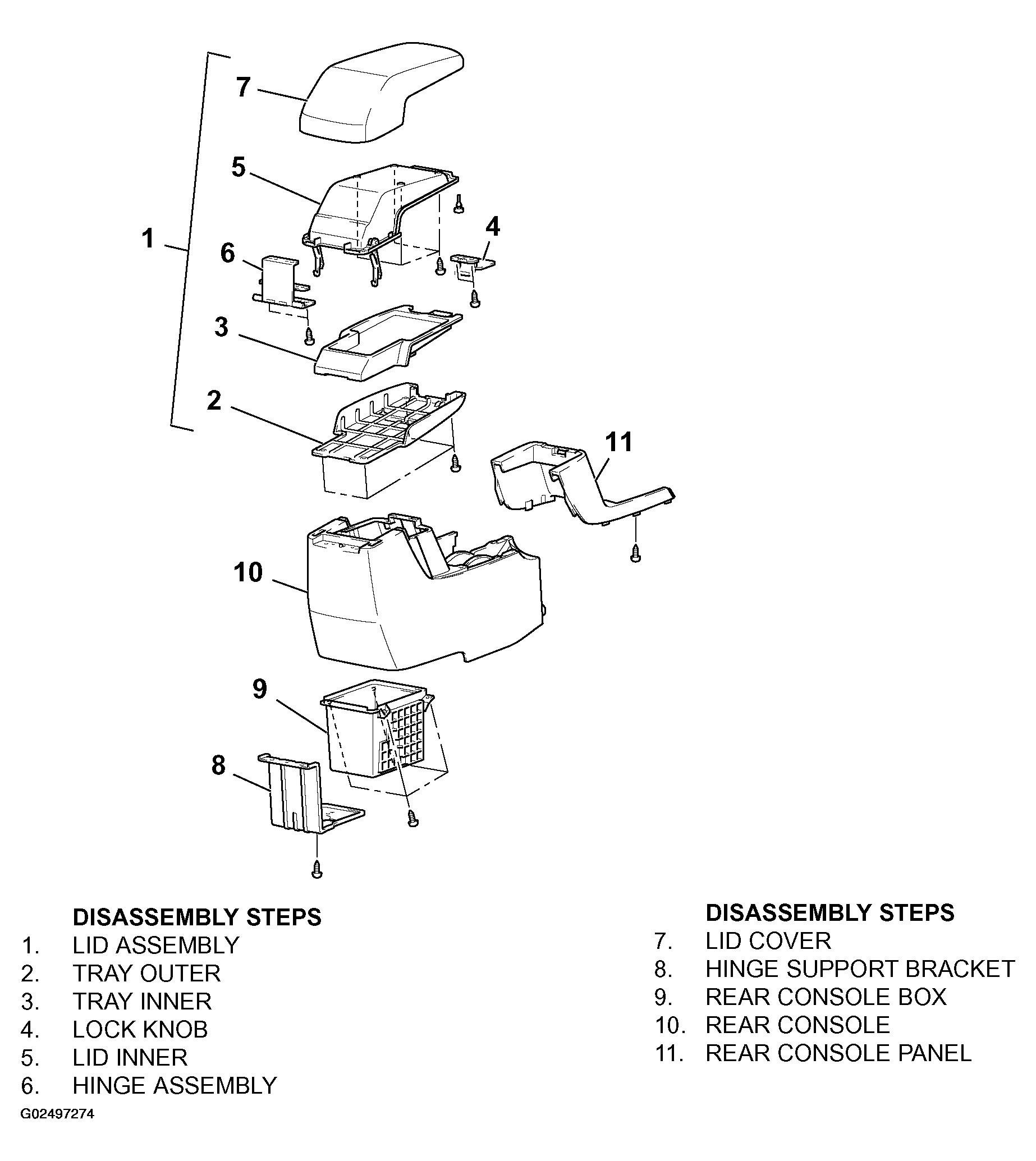

Fig 1: Identifying Floor Console Assembly Components

G02497274

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
