Service Specifications

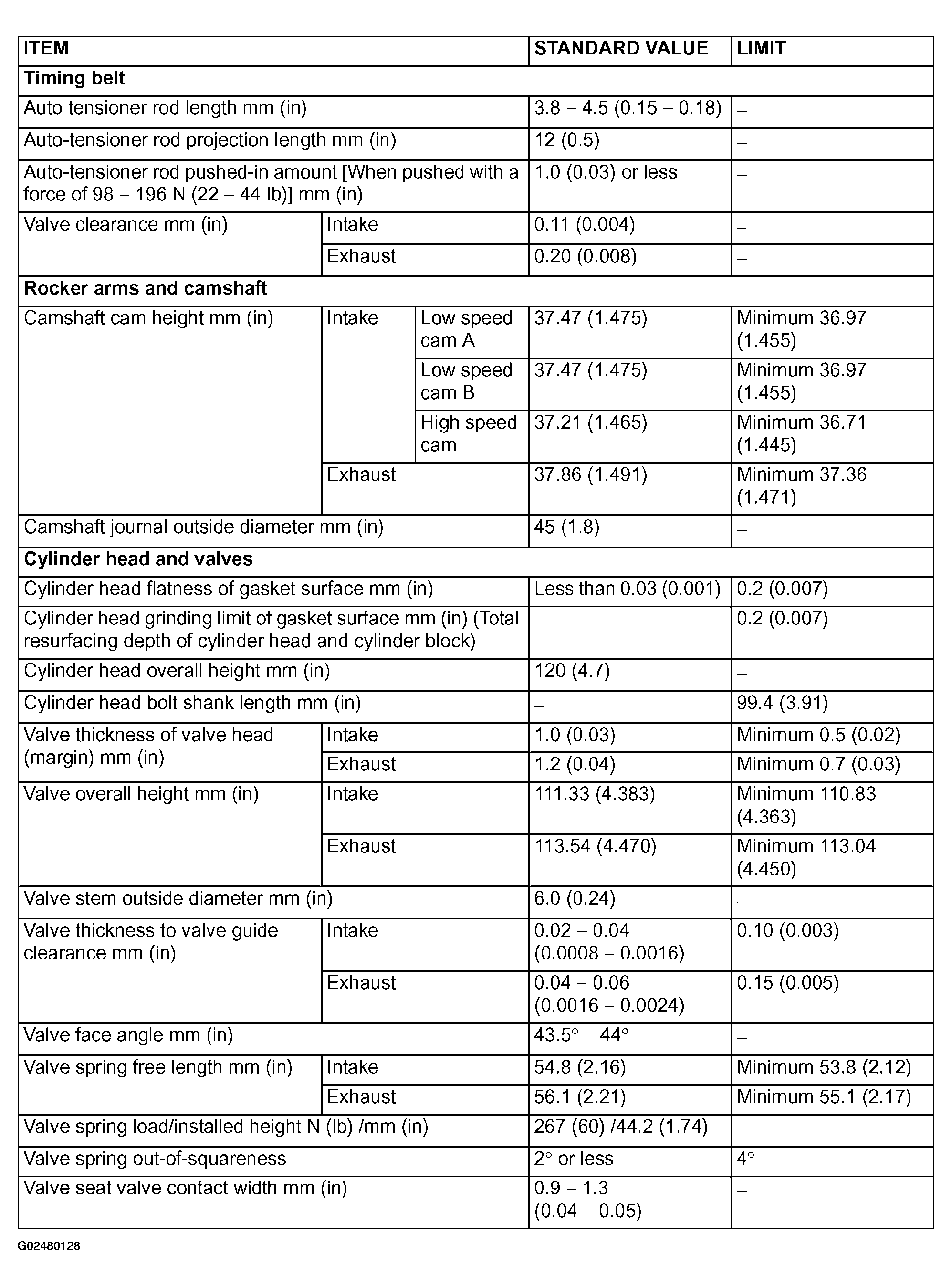

Fig 1: Service Specifications Chart (1 Of 3)
G02480128Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

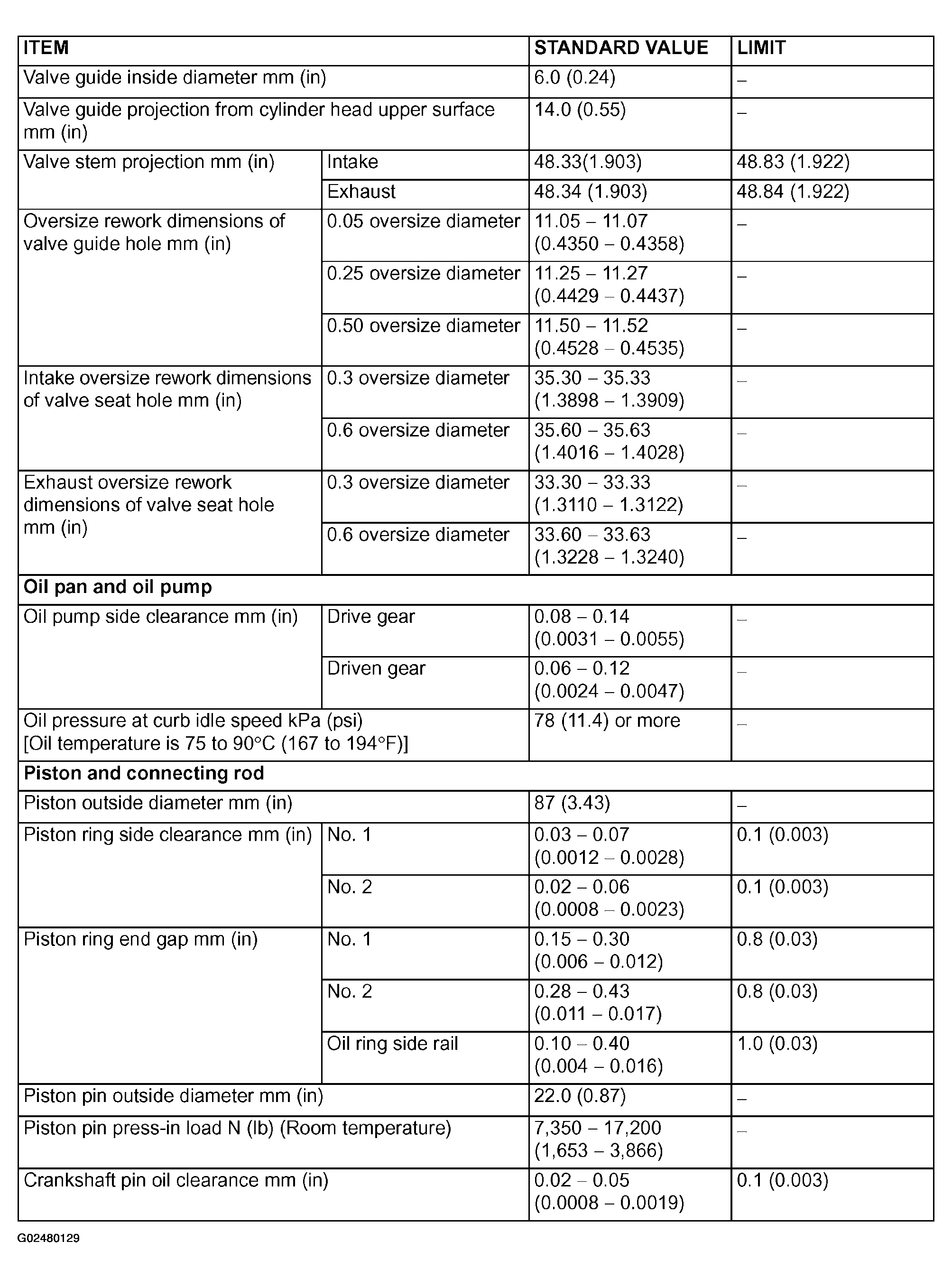

Fig 2: Service Specifications Chart (2 Of 3)
G02480129Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

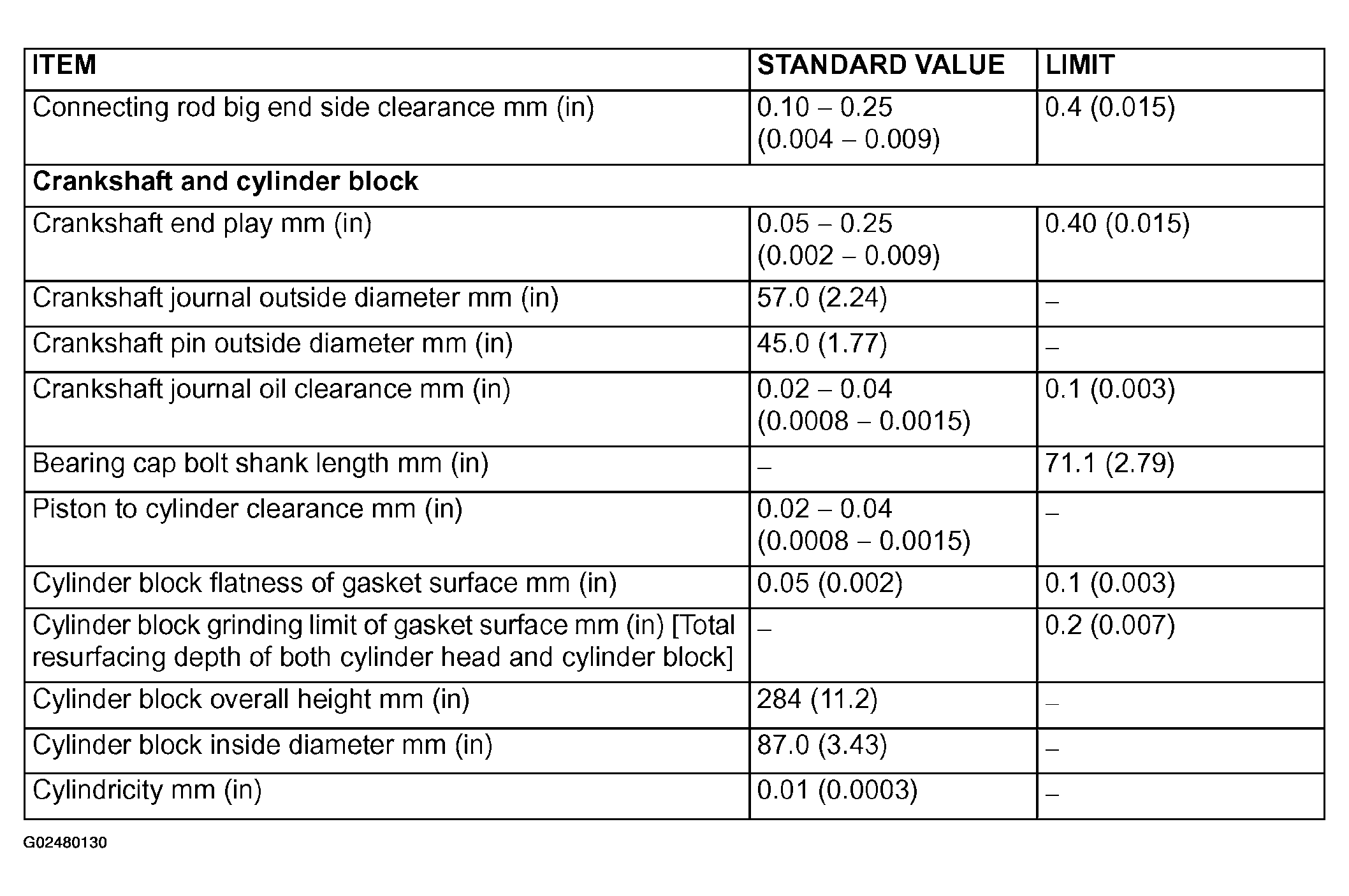

Fig 3: Service Specifications Chart (3 Of 3)
G02480130Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
