Mitsubishi
>>
2005
>>
Outlander Limited, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Starter Motor Assembly
>>
Removal And Installation
>>
Notes
Removal And Installation: Notes

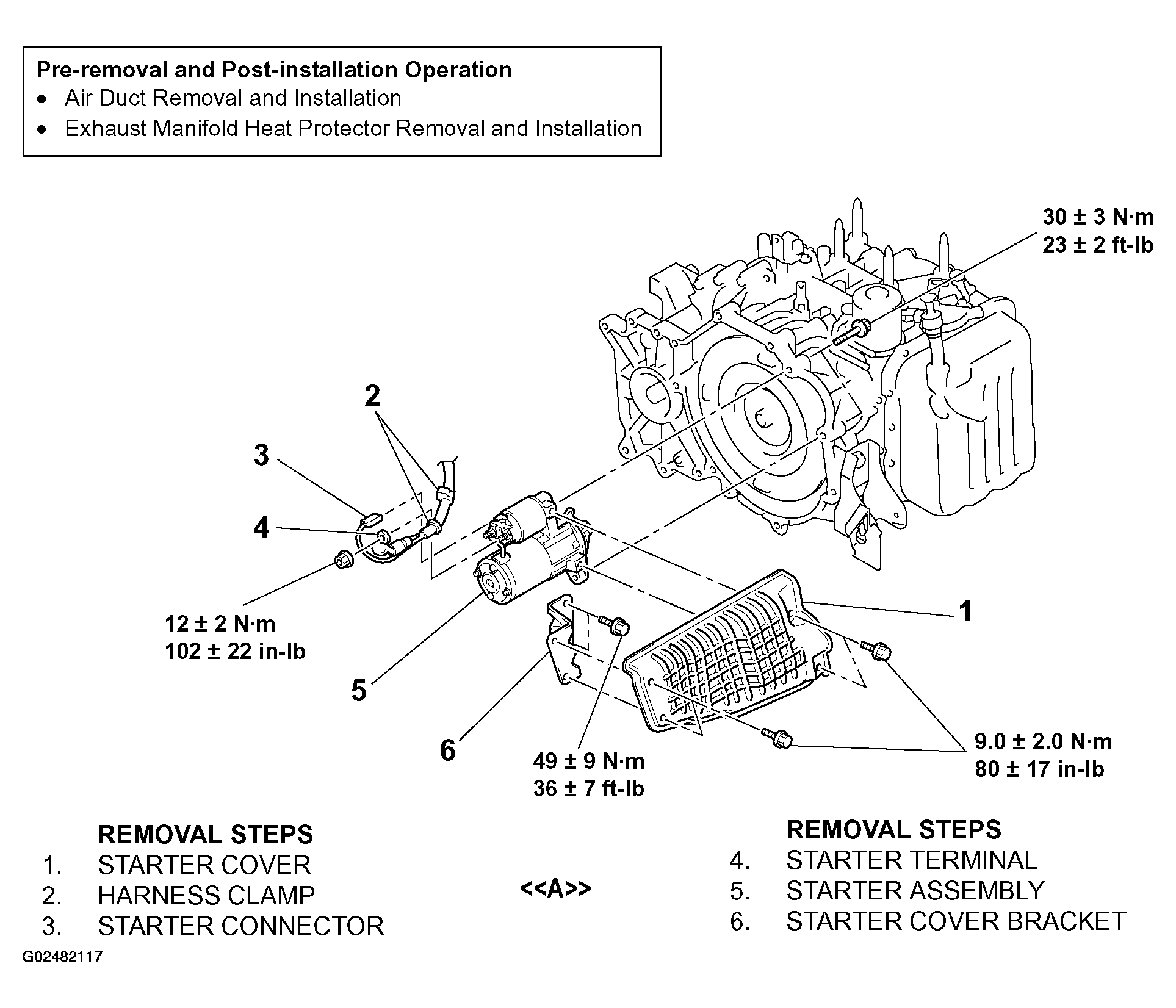

Fig 1: Removing / Installation Of Starter Motor Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
