Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Chassis Electrical
>>
Combination Meter Assembly And Vehicle Speed Sensor
>>
Removal And Installation
Removal And Installation

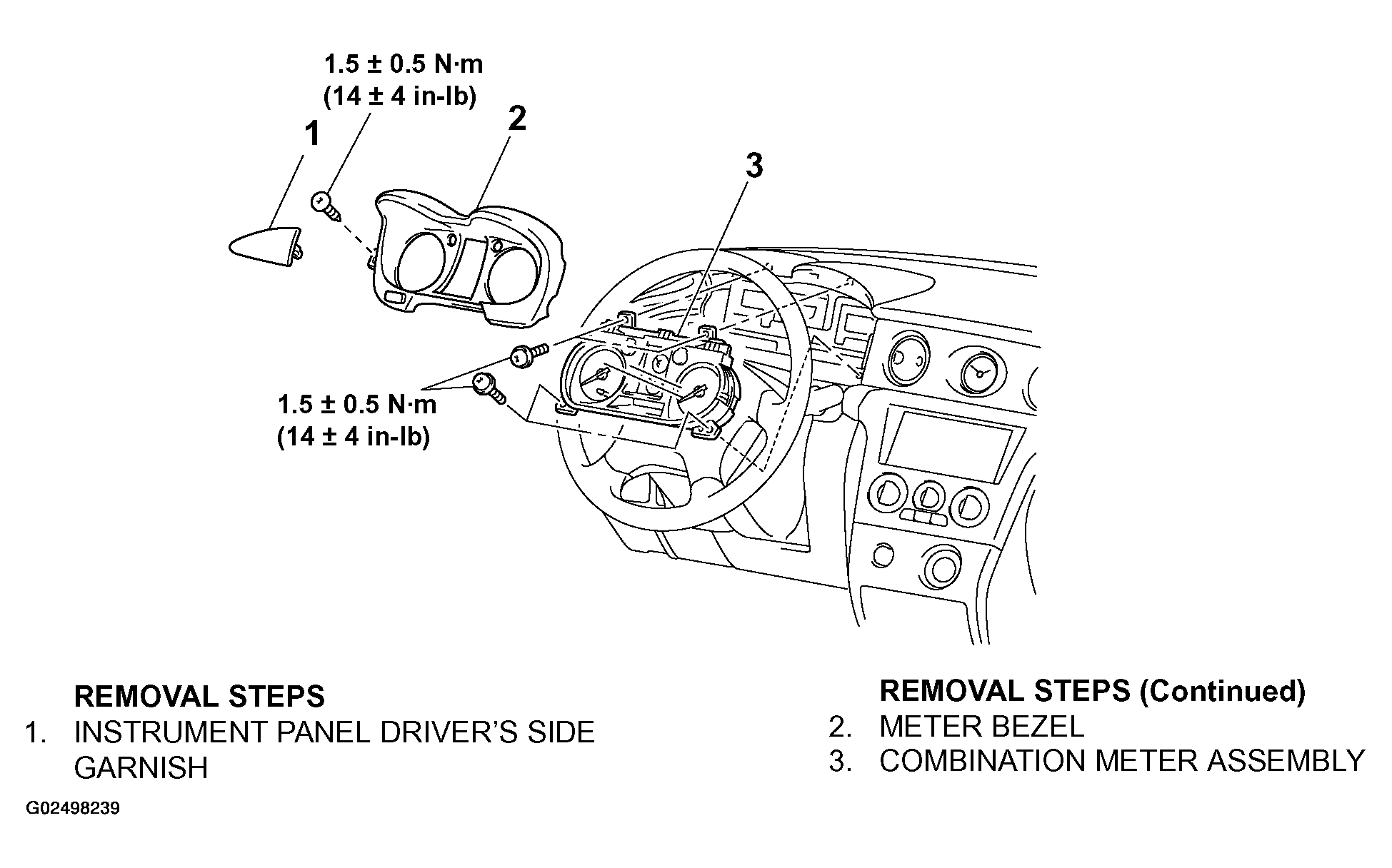

Fig 1: Removing/Installing Combination Meter Assembly And Vehicle Speed Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
