Fuel Level Sensor Float Height

Move the float and measure height A at point "F" (highest) and B at point "E" (lowest) with the float arm touching stopper.
1. Standard value:
  - A: 35.4 mm (1.39 inches)
  - B: 186.7 mm (7.35 inches)
Adjust the float arm to the standard value, then go to the thermistor check.

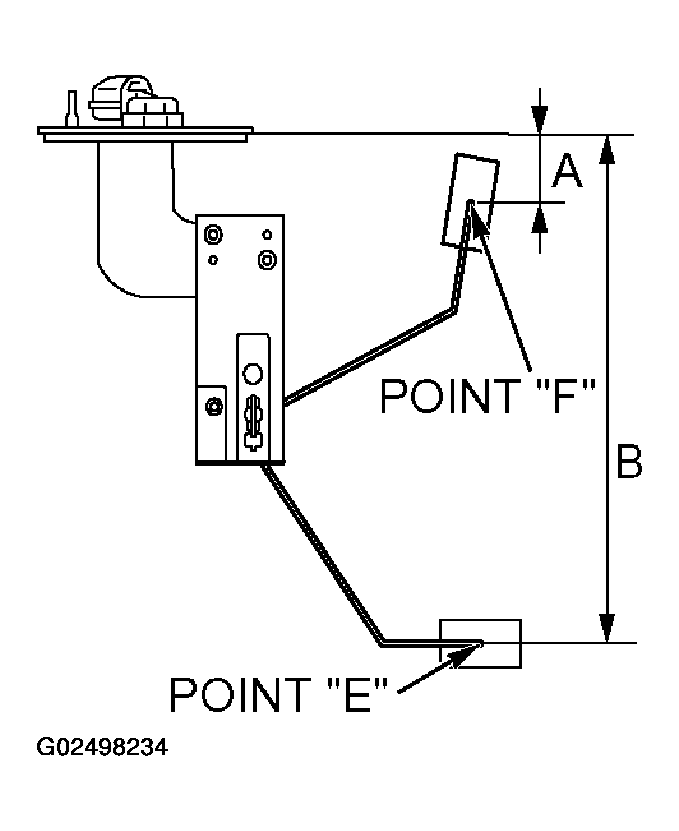

Fig 1: Measuring Fuel Level Sensor Float Height
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
