Disassembly And Assembly: Notes

< W5M42 >

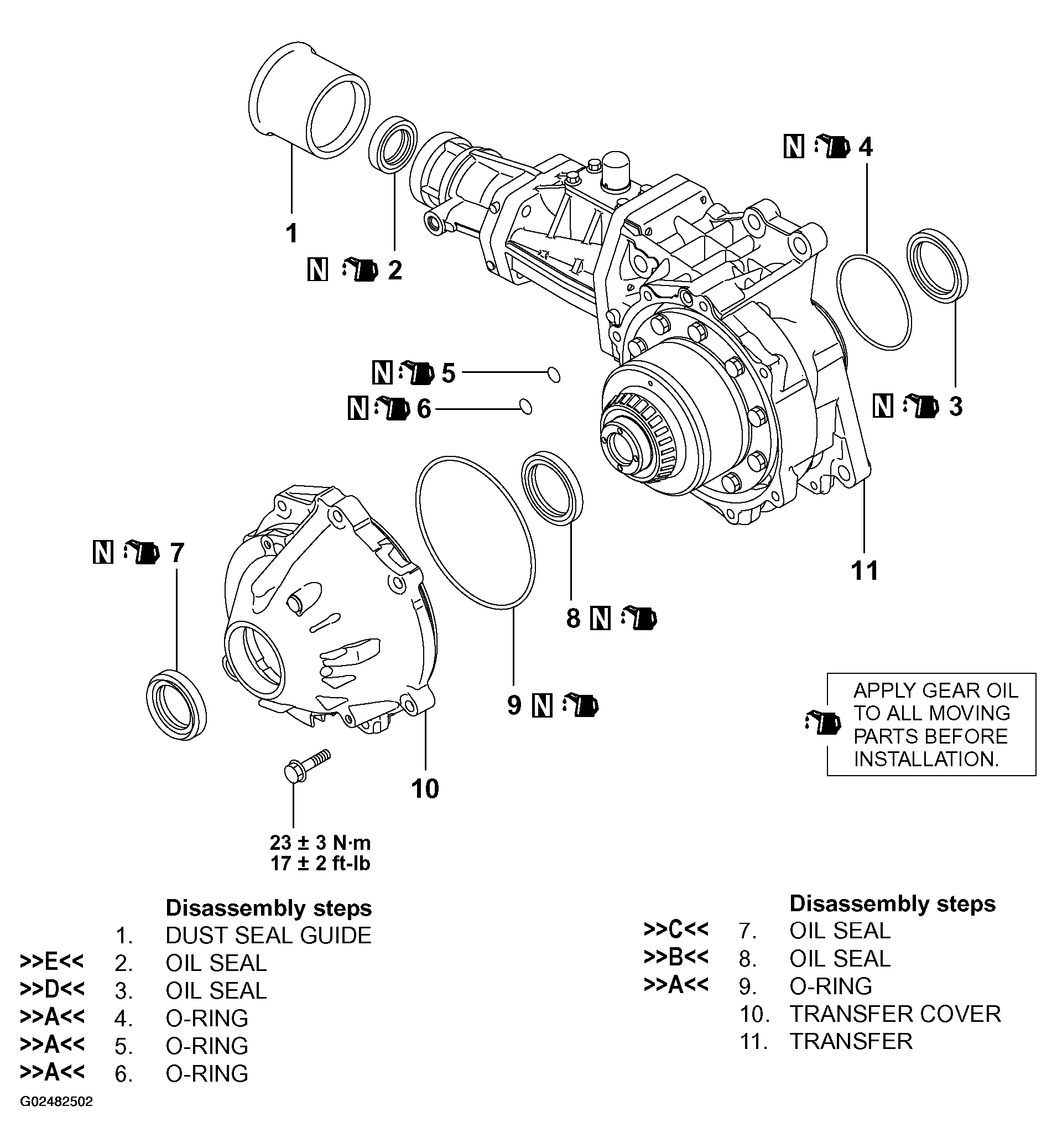

Fig 1: Disassembling/Assembling Transfer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MB990887: Ring
• MB990891: Bushing Remover Installer Base
• MB990933: Bushing Remover Installer Base
• MB990937: Installer Adapter
• MB990938: Installer Adapter
• MB998800: Oil Seal Installer
