Disassembly And Assembly: Notes

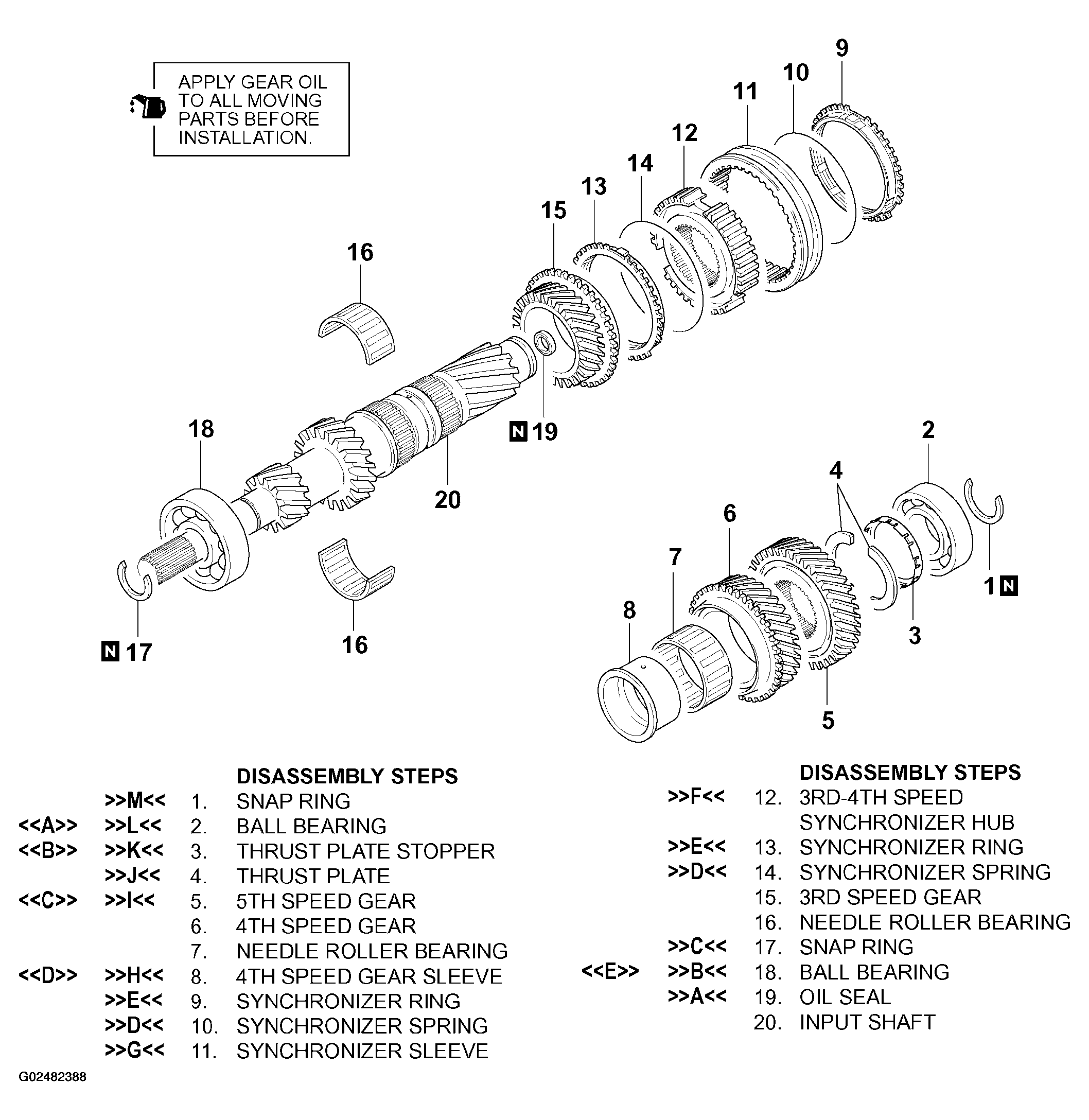

Fig 1: Disassembling/Assembling Input Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998801: Bearing Remover
• MD998812: Installer Cap
• MD998813: Installer-100
• MD998816: Installer Adapter (30)
• MD998818: Installer Adapter (38)
• MD998824: Installer Adapter (50)
• MD998825: Installer Adapter (52)
