Home
>>
Mitsubishi
>>
2005
>>
Outlander LS, FWD, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Manual Trans
>>
On-Vehicle Service
>>
Transaxle Control
>>
Shift Lever Assembly
>>
Disassembly And Assembly
Disassembly And Assembly

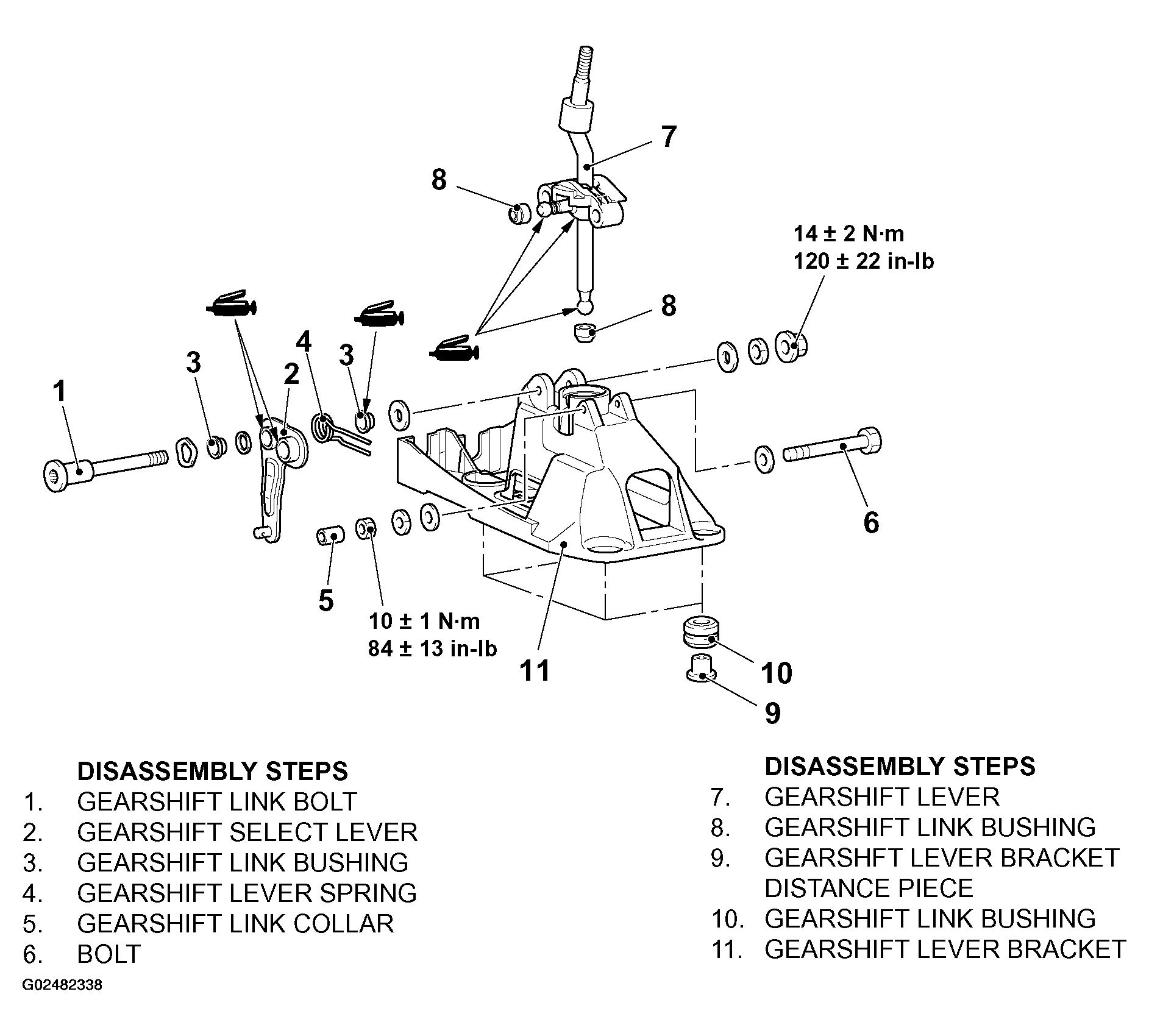

Fig 1: Exploded View Of Shift Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
