For vehicles with CAN, when DTC which influences the transmission data is set to the ECU which sends the data, DTC could be set to the ECU which receives and controls the transmission data. The following illustrations show the relativity of DTC between ECUs. In addition, the alphabet shows the following DTC.

A: TCL - DTC No. U1120 (Refer to DIAGNOSTIC TROUBLE CODE CHART ).
B: Air conditioning - DTC No. U1120 (Refer to DIAGNOSTIC TROUBLE CODE CHART ).
C: ASC - DTC No. U1433 (Refer to DIAGNOSTIC TROUBLE CODE CHART ).
D: TCL - DTC No. U1400 (Refer to DIAGNOSTIC TROUBLE CODE CHART ).
E: ASC - DTC No. C1506 (Refer to DIAGNOSTIC TROUBLE CODE CHART ).
F: Multi-center display - DTC No. 022 (Refer to DIAGNOSTIC TROUBLE CODE CHART ).
G: ASC - DTC No. C1397 (Refer to DIAGNOSTIC TROUBLE CODE CHART ).

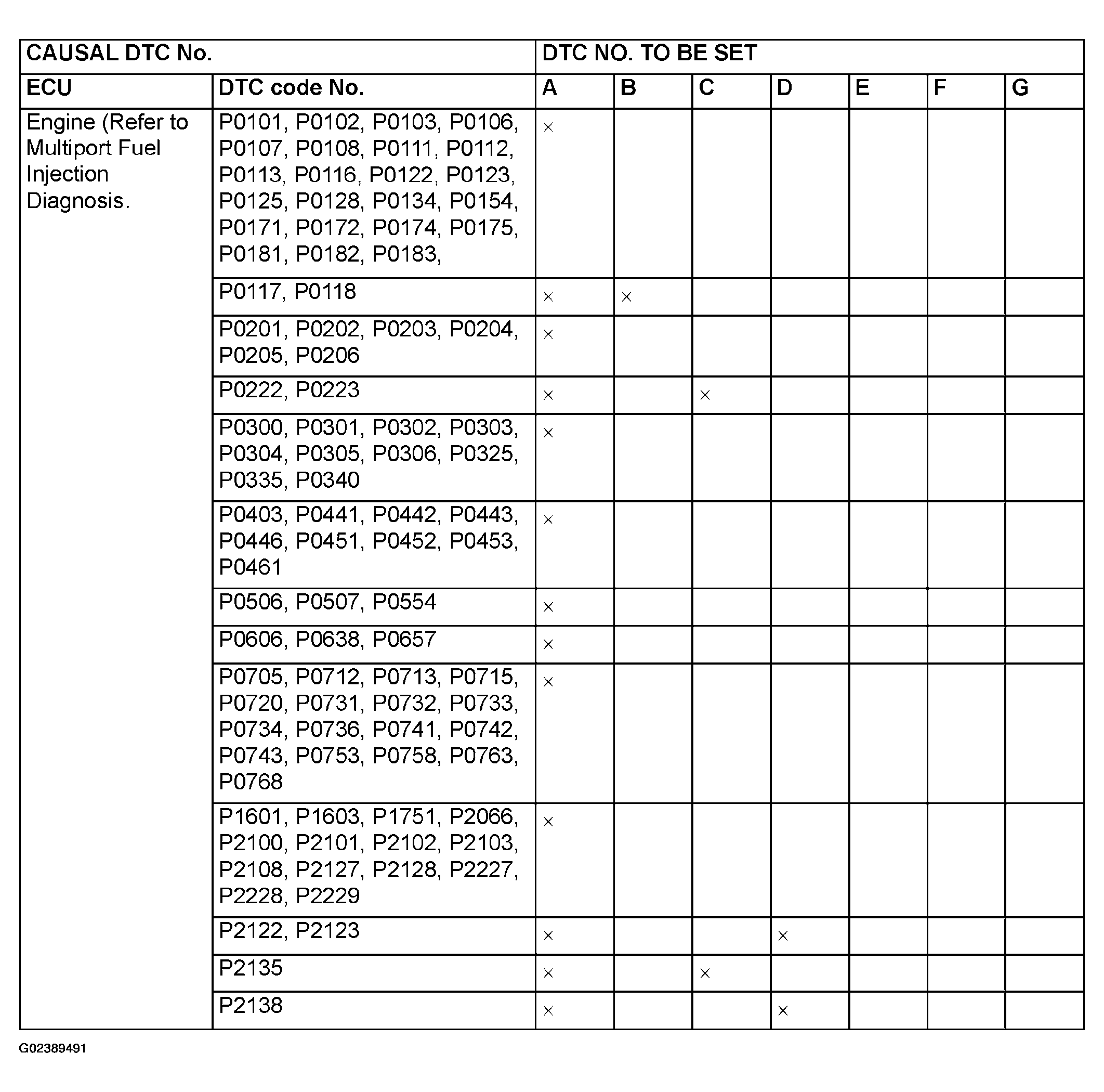

Fig 1: DTC Chart (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

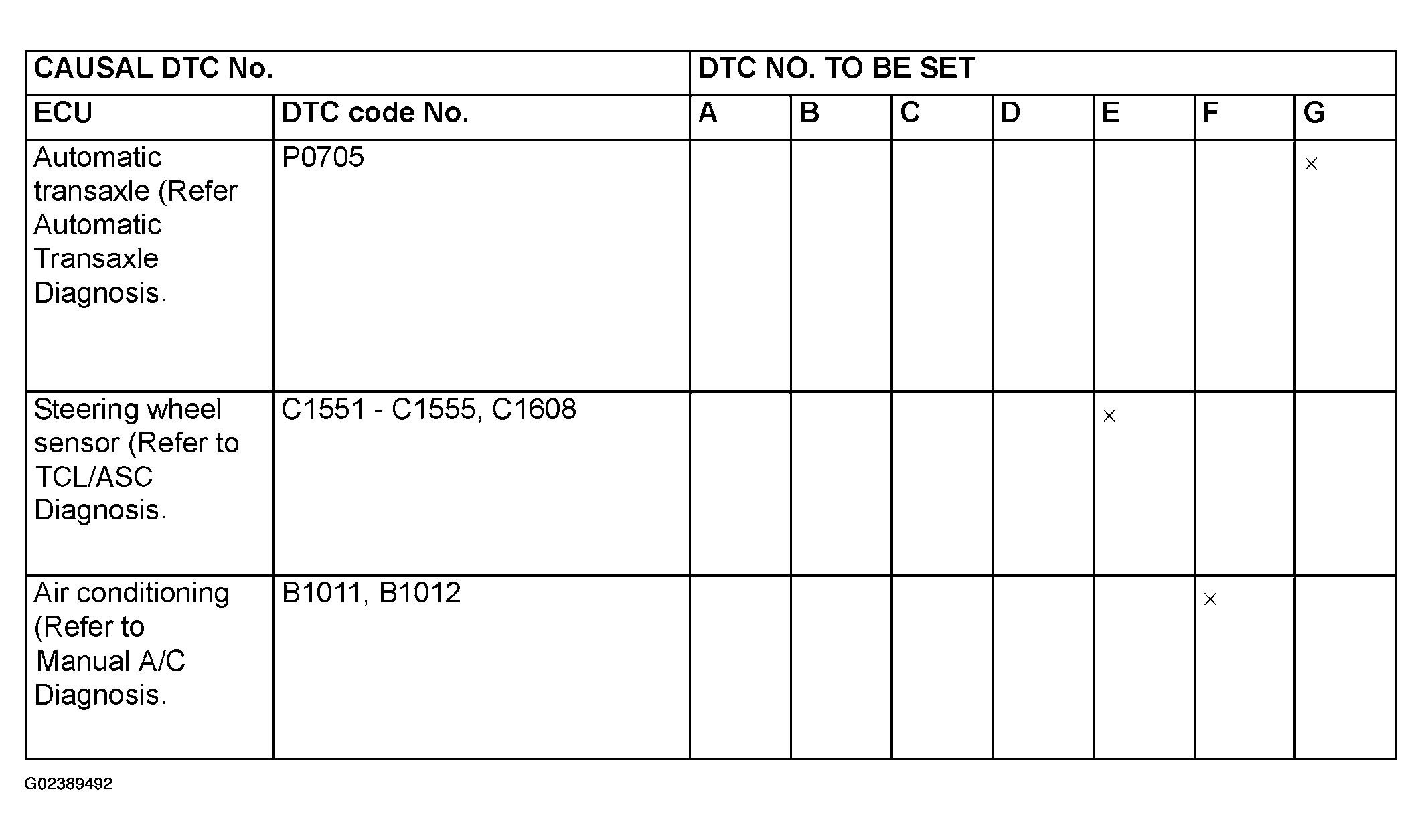

Fig 2: DTC Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
