Hub Bolt Replacement

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

MB990767: Front Hub and Flange Yoke Holder
MB991618: Hub Bolt Remover

Remove the caliper assembly and suspend it with wire so that it does not fall.
Remove the brake disc.
Use special tool MB991618 to remove the hub bolts.

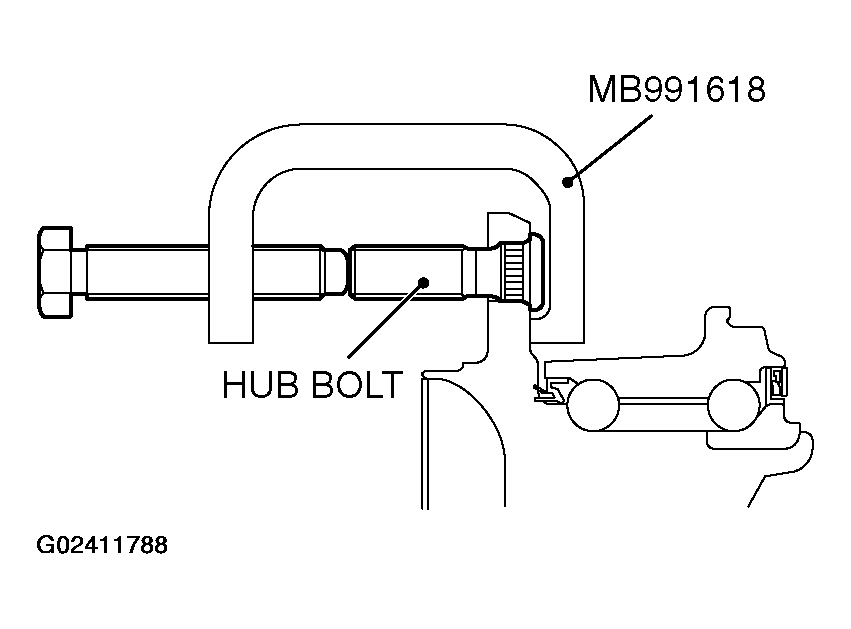

Fig 1: Removing Hub Bolts
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the plain washer to the new hub bolt, and install the bolt with a nut while holding the hub with special tool MB990767.

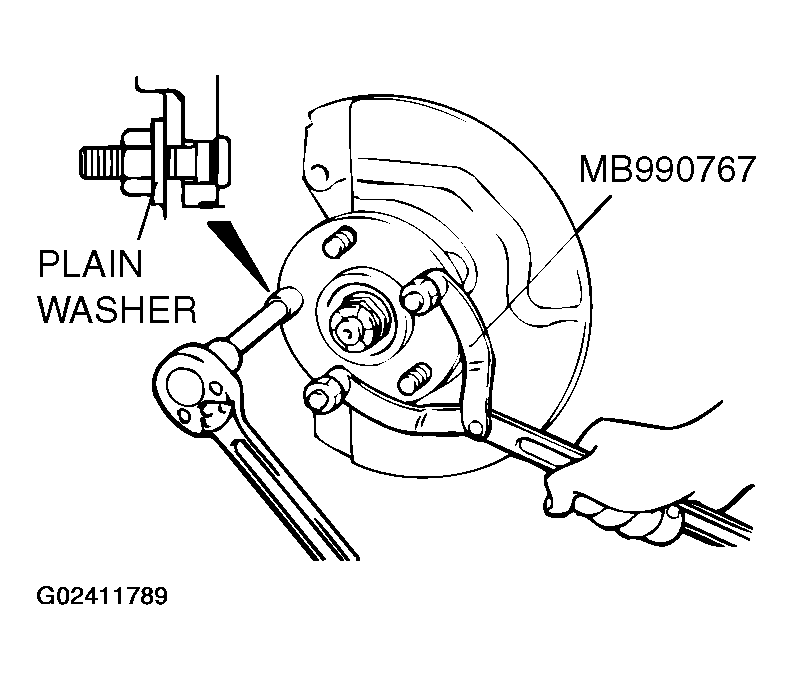

Fig 2: Installing Plain Washer To Hub Bolt
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the brake disc, caliper assembly and tighten the caliper assembly mounting bolts to the specified torque 90 +/- 10 N.m (67 +/- 7 ft-lb).
