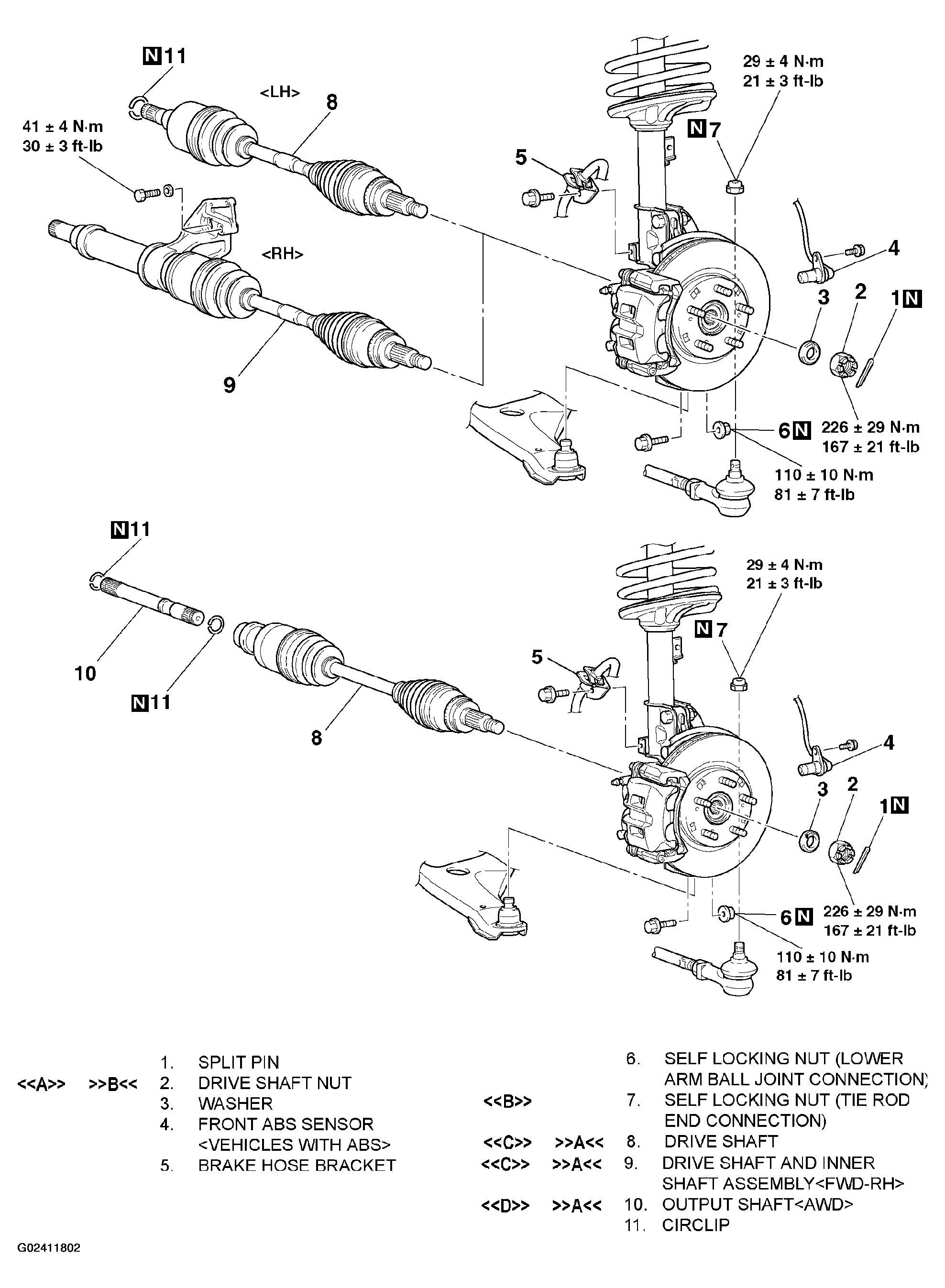

Removal And Installation: Notes
WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- For vehicles with ABS, do not strike the ABS rotors installed to the BJ outer race of drive shaft against other parts when removing or installing the drive shaft. Otherwise the ABS rotors will be damaged.
- For vehicles with ABS, be careful not to strike the pole piece at the tip of the front ABS sensor with tools during servicing work.
Required Special Tools:
- MB990767: Front Hub and Flange Yoke Holder
- MB991897: Ball Joint Remover
- MB990242: Puller Shaft
- MB990244: Puller Bar
- MB991354: Puller Body
- MB991017: Front Hub Remover and Installer
- MB991000 (MB990998): Spacer
- MB991721: Slide Hammer
