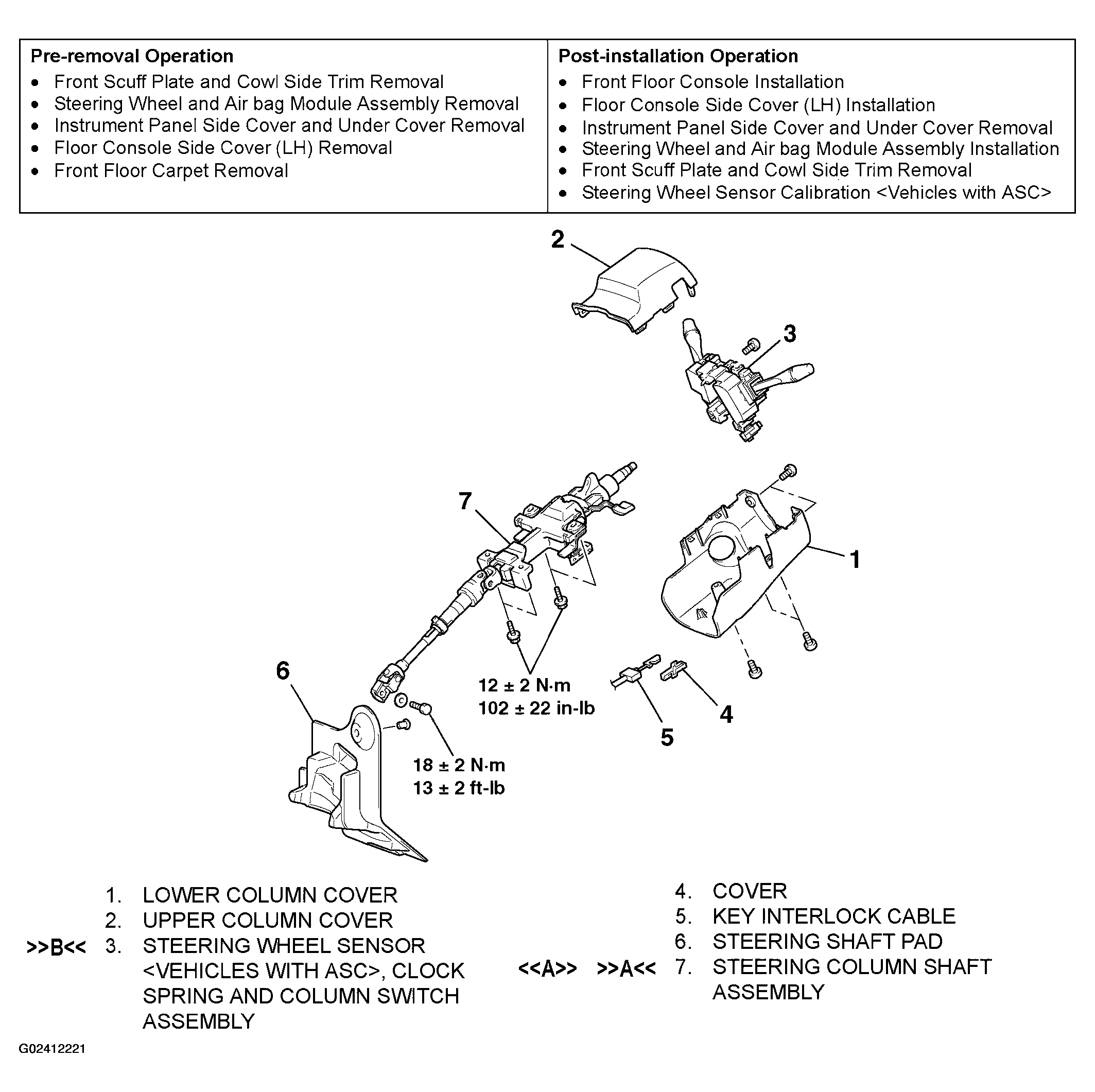

Removal And Installation: Notes
WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Before removing the steering wheel and air bag module assembly, refer to SERVICE PRECAUTIONS
and AIR BAG MODULE AND CLOCK SPRING
.
CAUTION:
On vehicles with ASC, always carry out steering wheel sensor calibration after the steering shaft has been installed (Refer to STEERING WHEEL SENSOR CALIBRATION
).
This is necessary because the TCL/ASC-ECU should update the steering neutral point.
