Removal And Installation: Notes

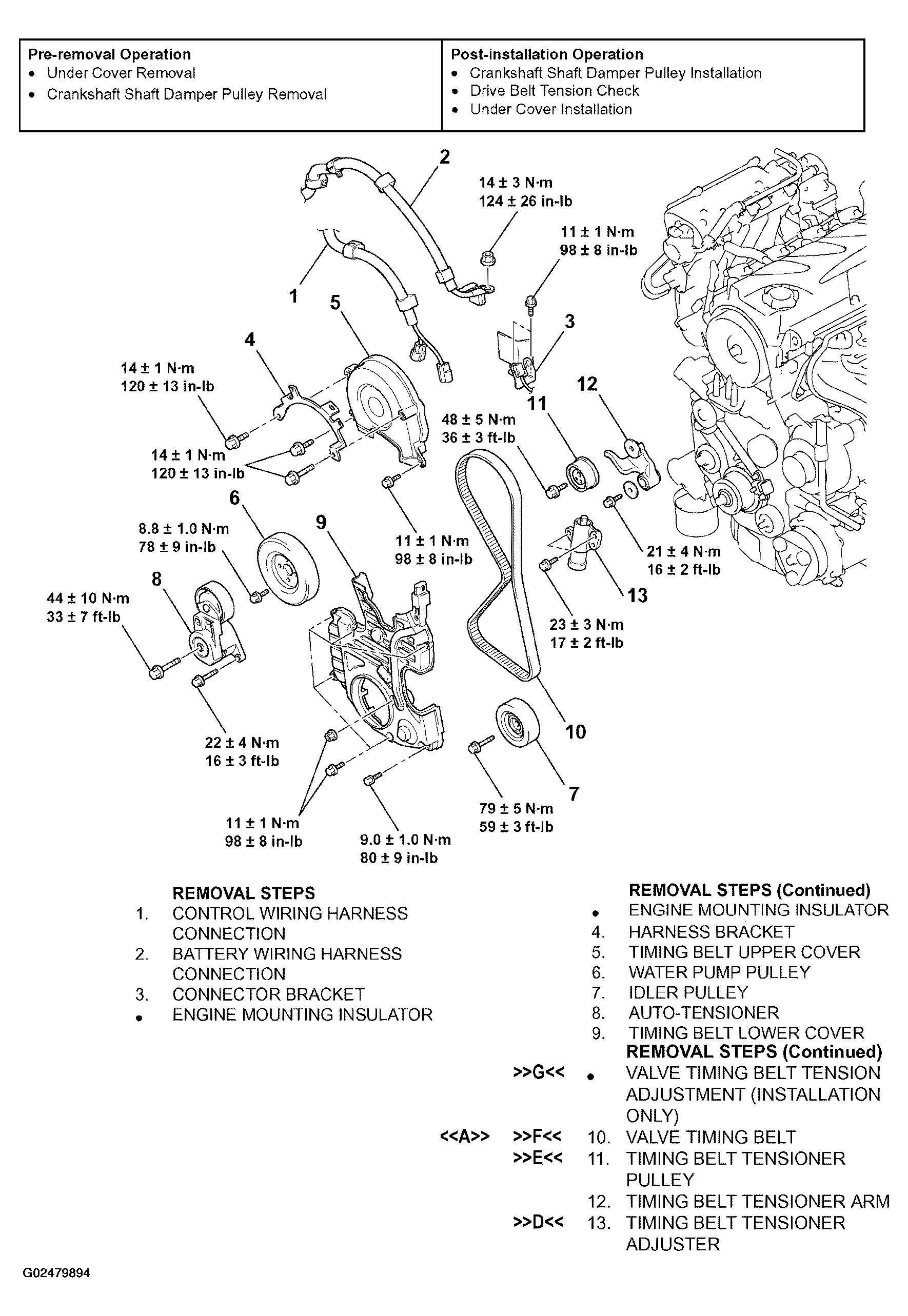

Fig 1: Removing Timing Belt (1 Of 2)
G02479894Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

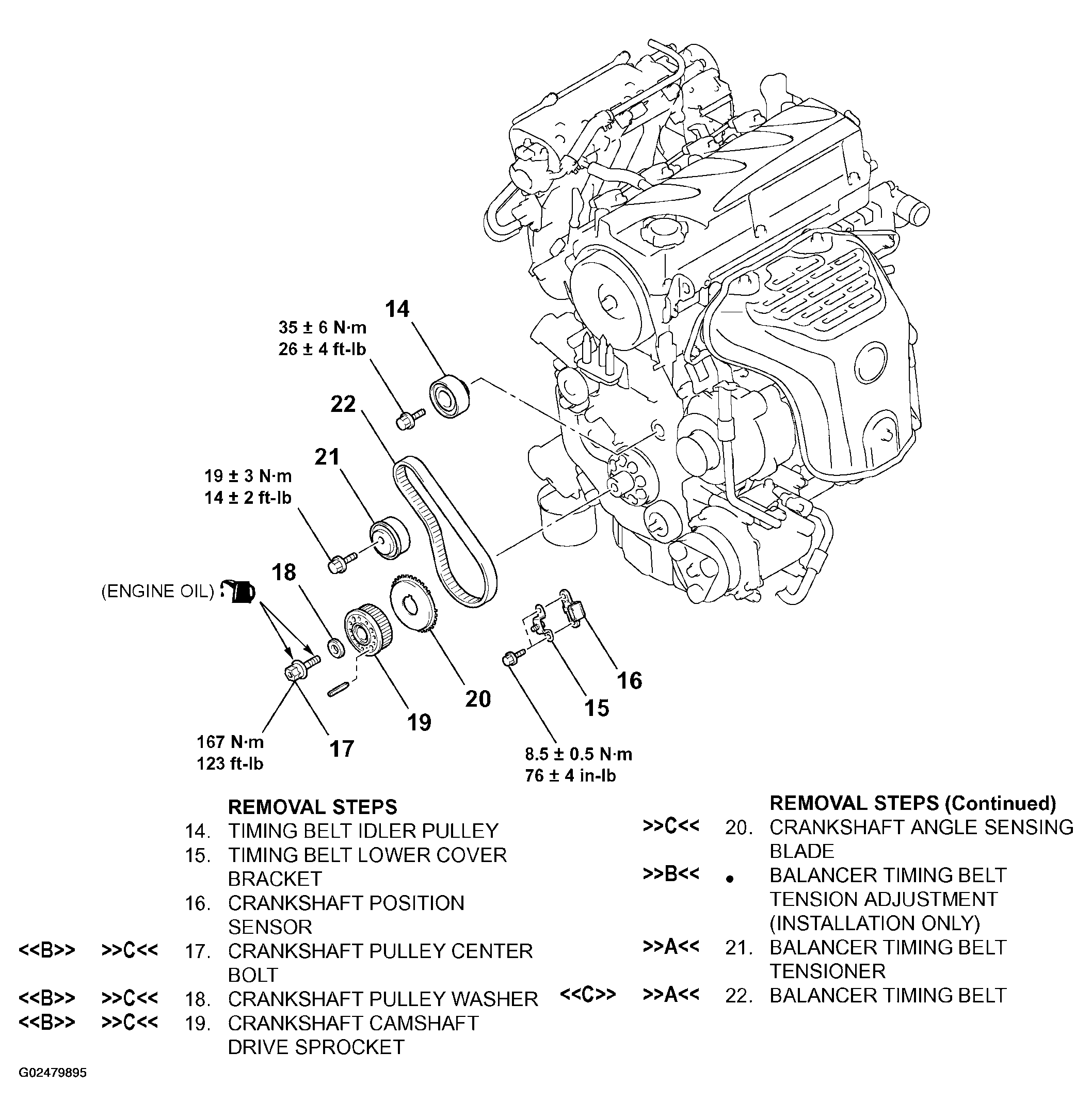

Fig 2: Removing Timing Belt (2 Of 2)
G02479895Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
