On-Vehicle Service: General Description

The 4G69 (2.4L) engine is an in-line four cylinder engine. The cylinder numbers are assigned as 1 - 2 - 3 - 4 from the front of the engine (timing belt side). This engine is fired in the order of the 1, 3, 4 and 2 cylinders.

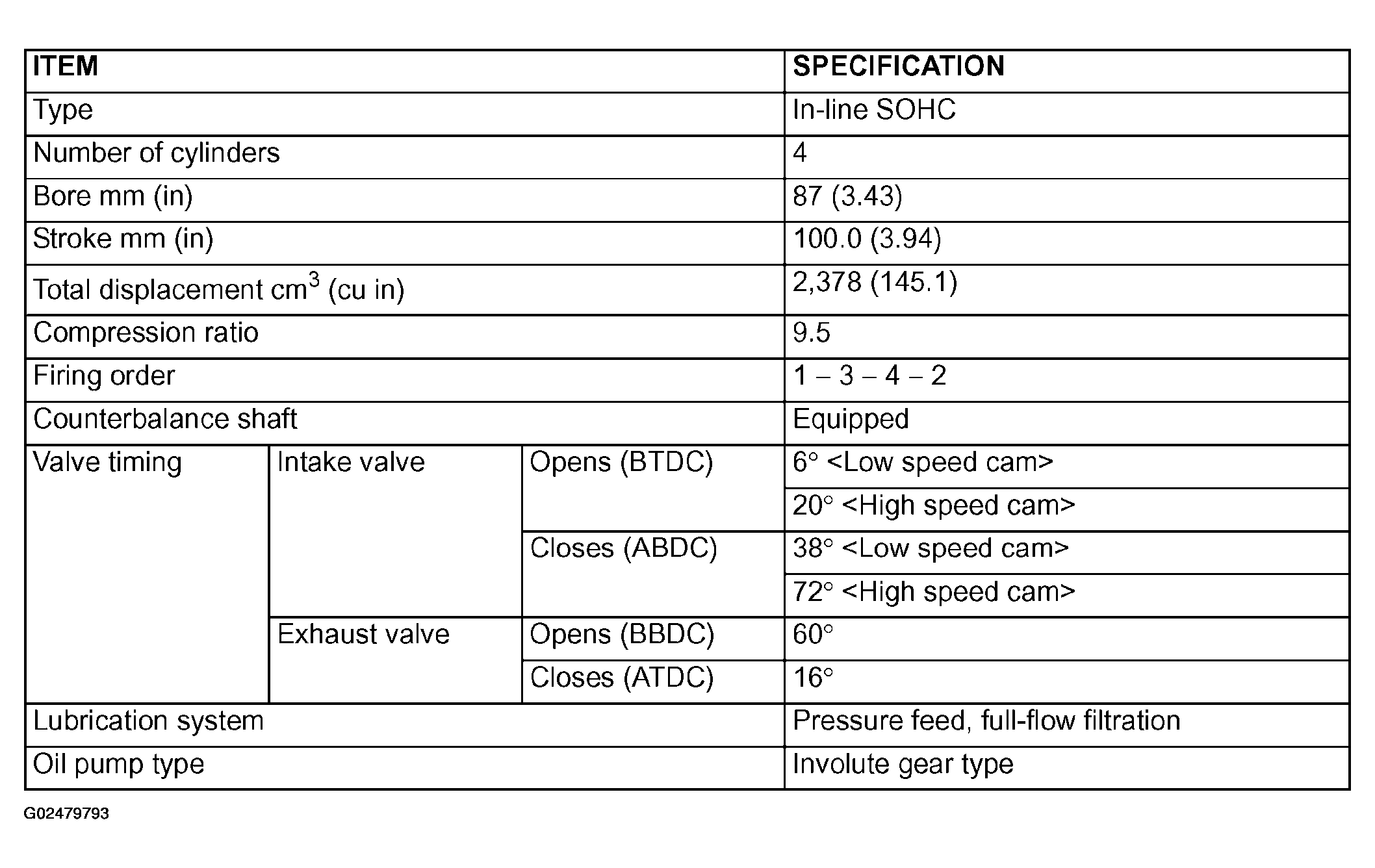

Fig 1: Item And Specification Reference Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
