Home >> Mitsubishi >> 2005 >> Outlander LS, AWD, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Body >> Sunroof Assembly >> Sunroof Assembly >> Removal And Installation >> Notes

Removal And Installation: Notes

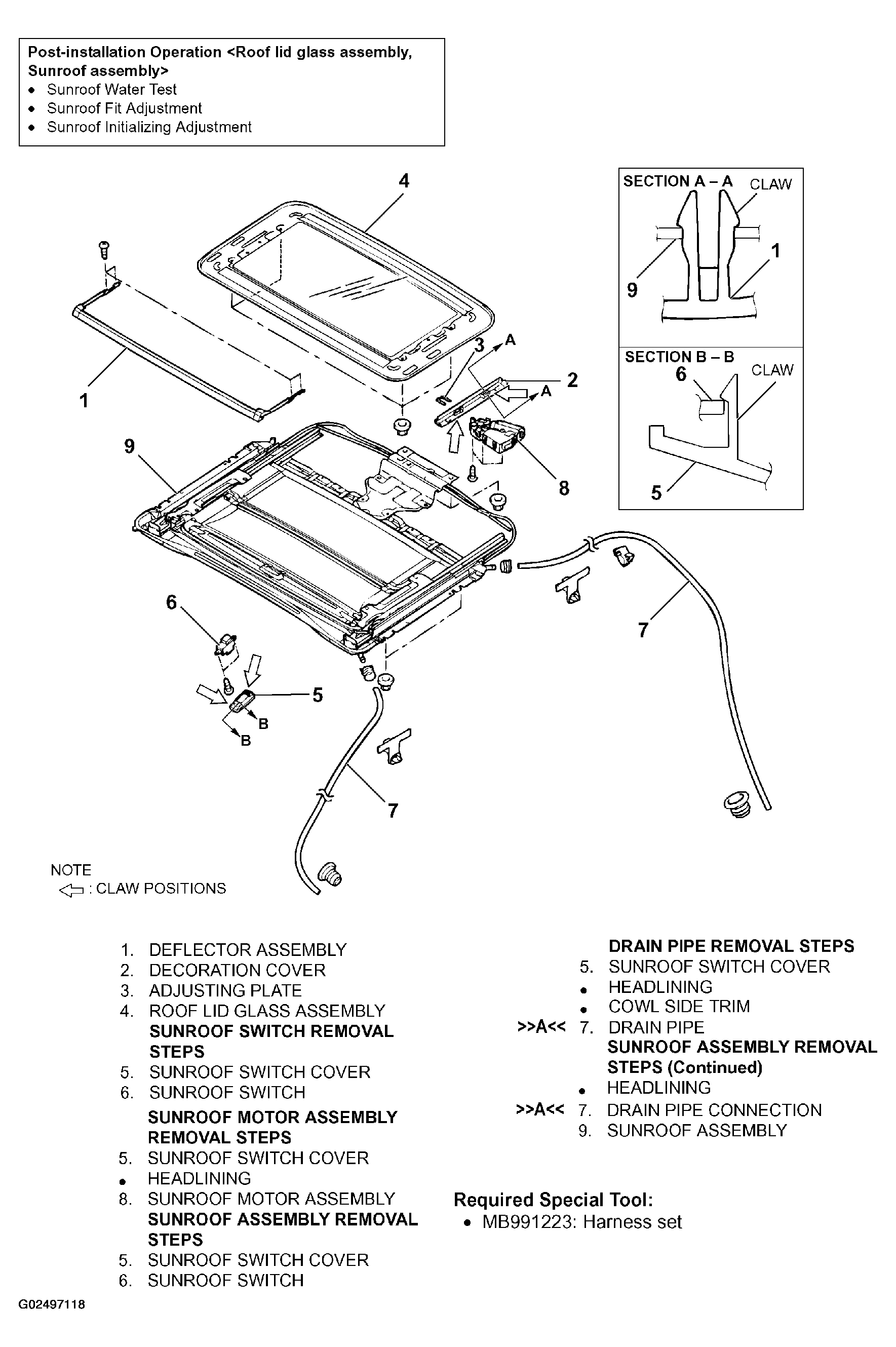

Fig 1: Removing/Installing Sunroof Assembly
G02497118Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
