Disassembly And Assembly: Notes

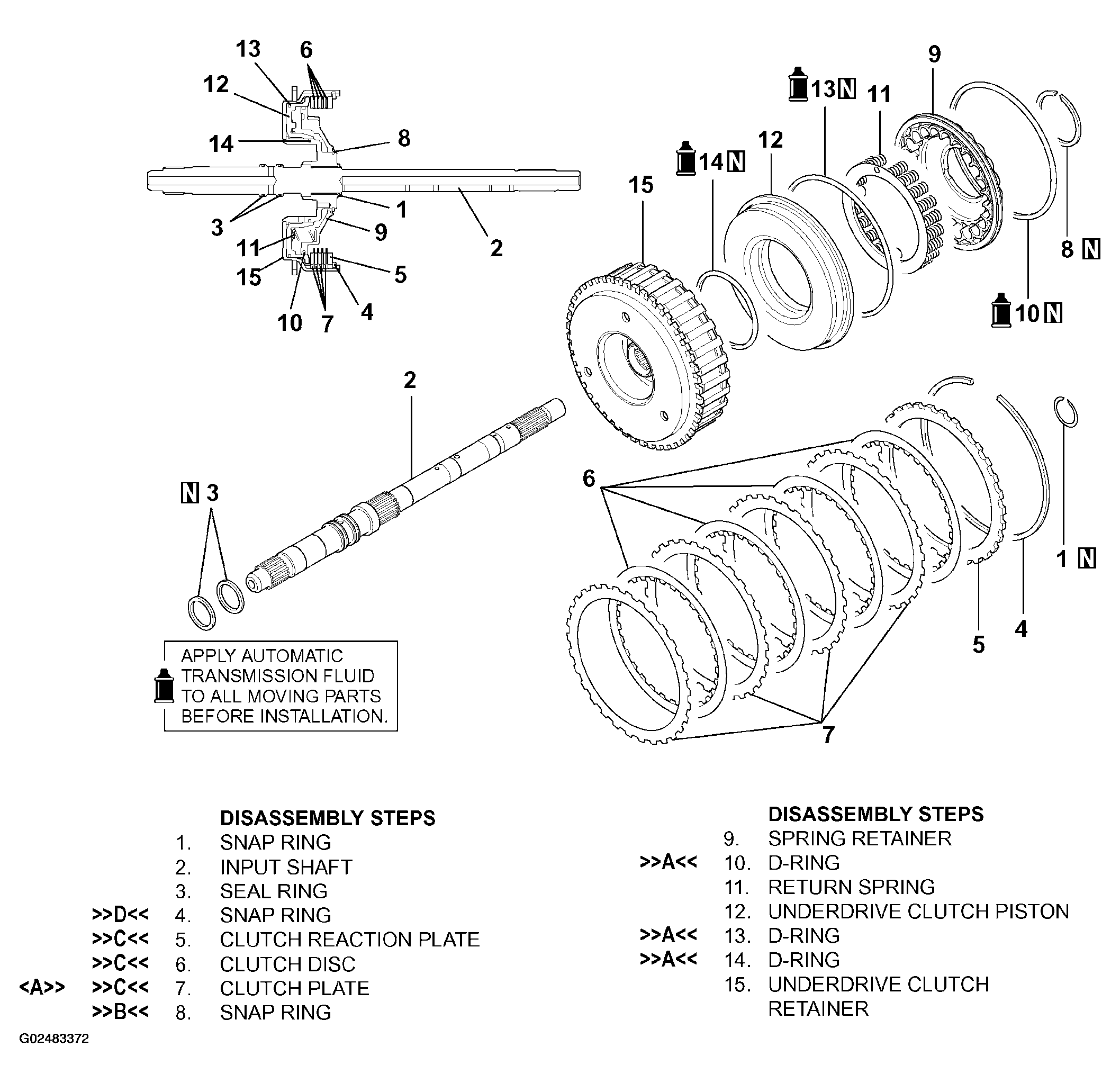

Fig 1: Disassembling/Assembling Underdrive Clutch And Input Shaft
G02483372Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
