Home >> Mitsubishi >> 2005 >> Outlander LS, AWD, Automatic >> Repair and Diagnosis >> Steering >> Power Steering >> Steering Gear Shaft Assembly >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

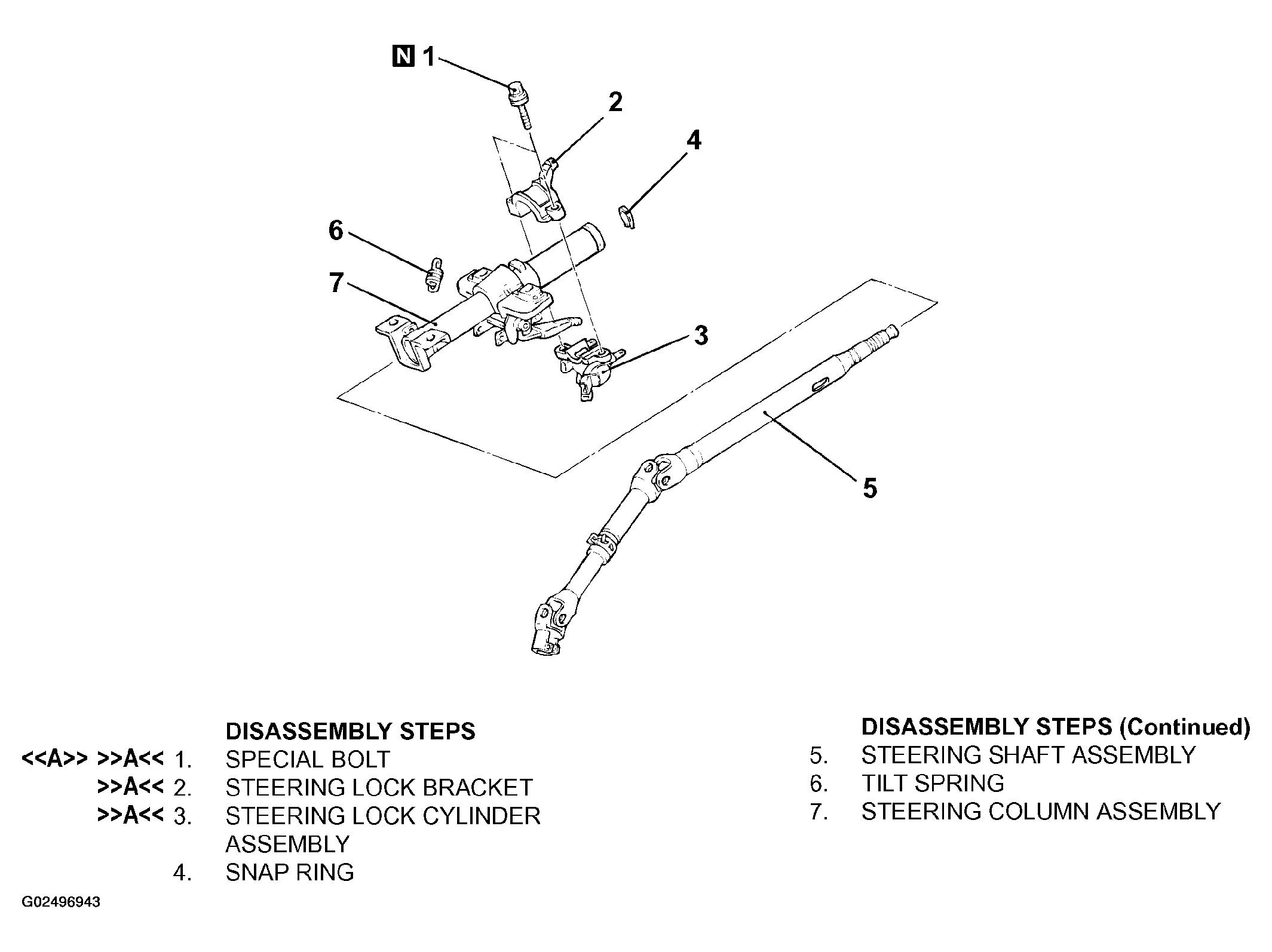

Fig 1: Removing/Installing Steering Gear Shaft Assembly

G02496943

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
