Outlander LS, AWD, Automatic
>>
Repair and Diagnosis
>>
Restraints
>>
Passive Restraints
>>
Interior
>>
Floor Console Assembly
>>
Removal And Installation
Removal And Installation

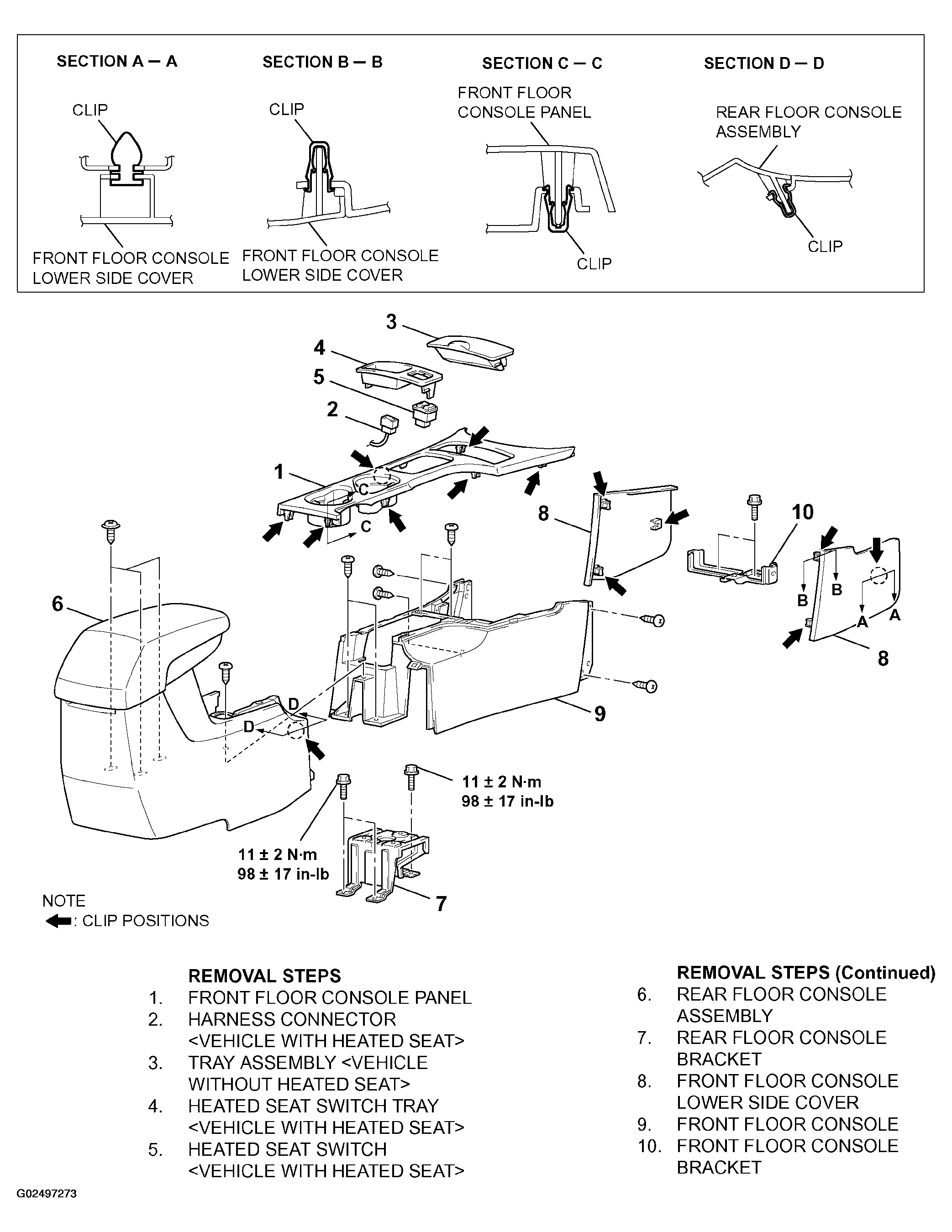

Fig 1: Removing/Installing Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
