Home >> Mitsubishi >> 2005 >> Outlander LS, AWD, Automatic >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Door Trim >> Removal And Installation >> Notes

Removal And Installation: Notes

< FRONT DOOR TRIM >

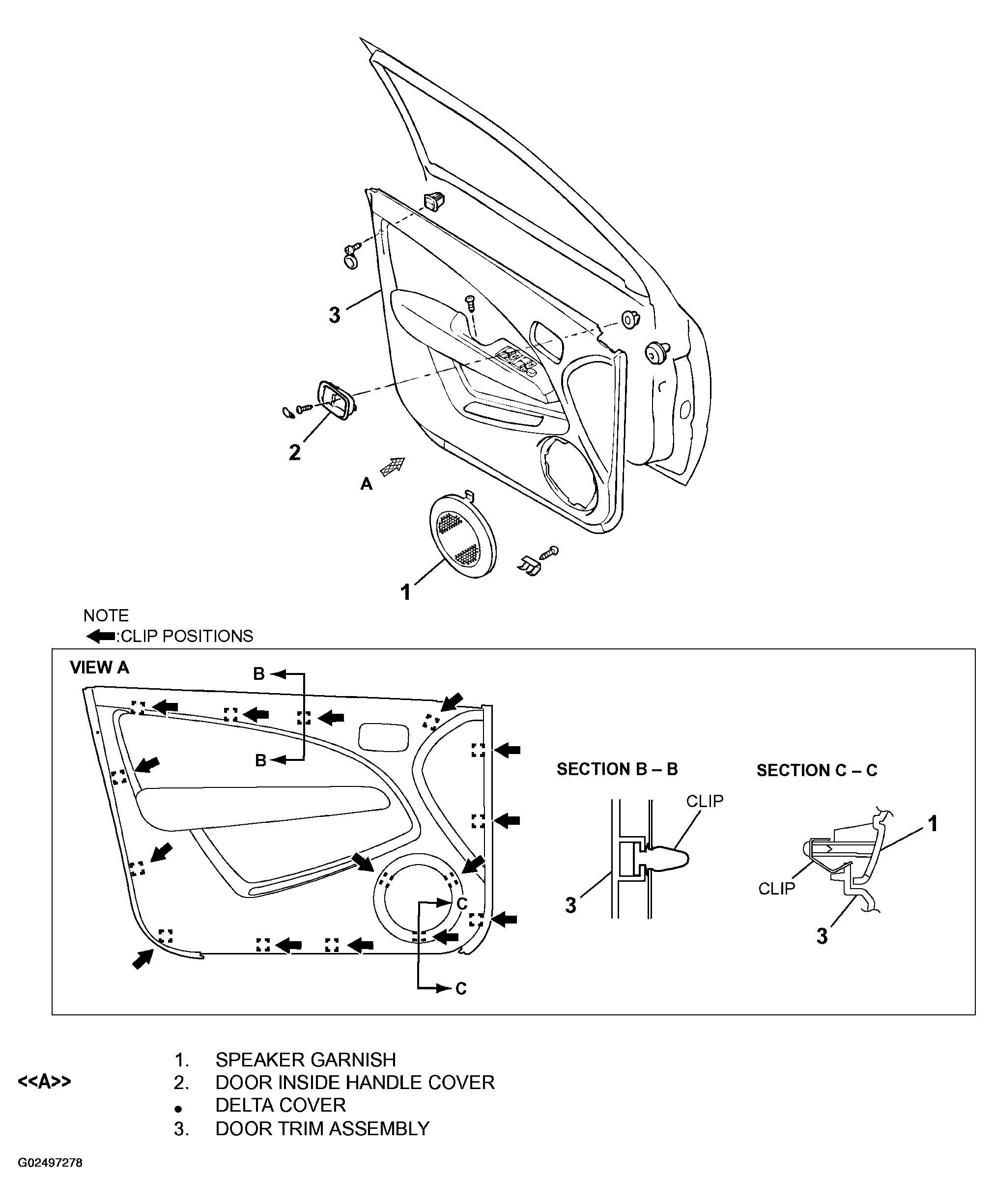

Fig 1: Removing/Installing Door Trim (Front Door Trim)
G02497278Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:

< REAR DOOR TRIM >

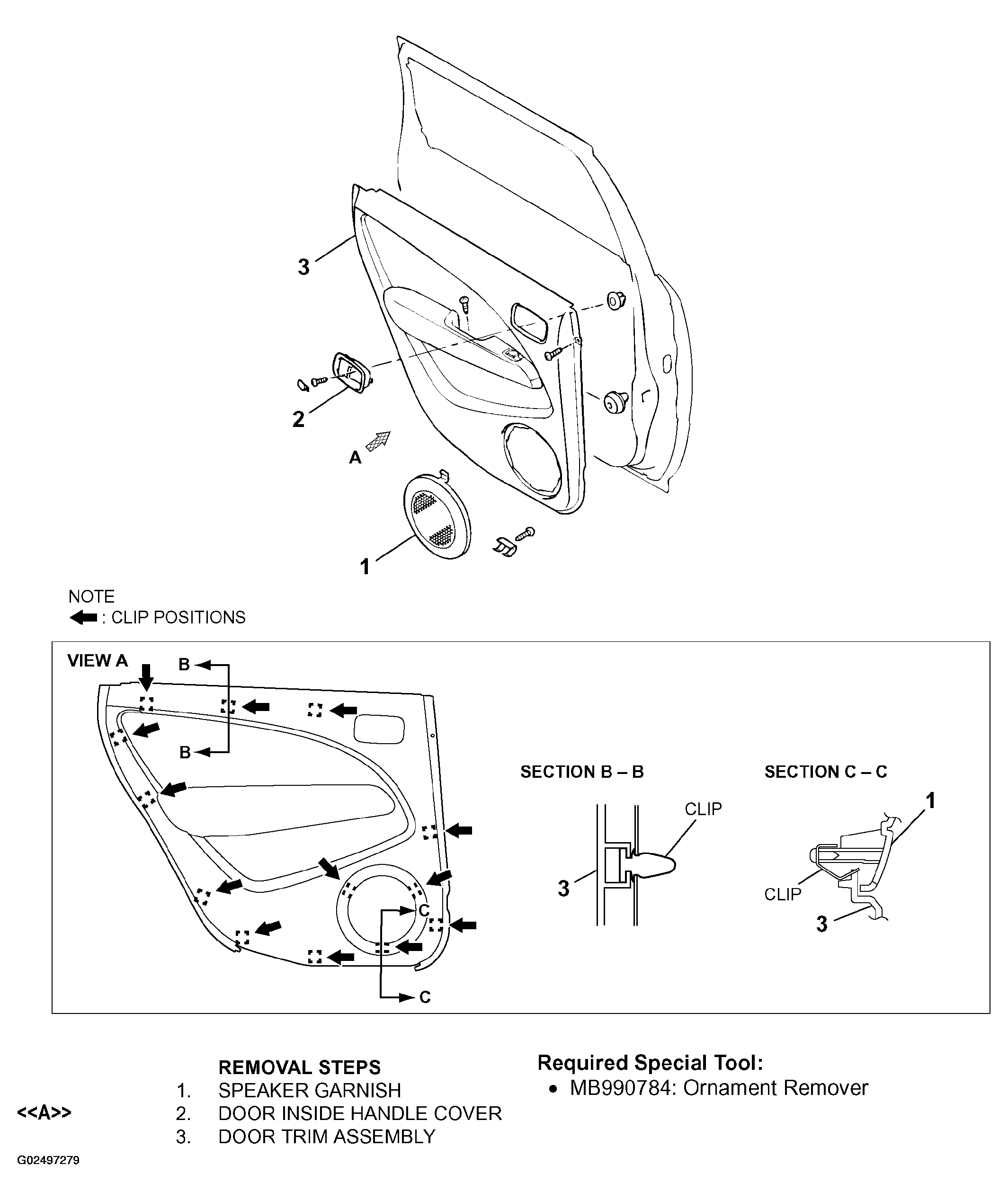

Fig 2: Removing/Installing Door Trim (Rear Door Trim)
G02497279Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
