Liftgate Latch Check

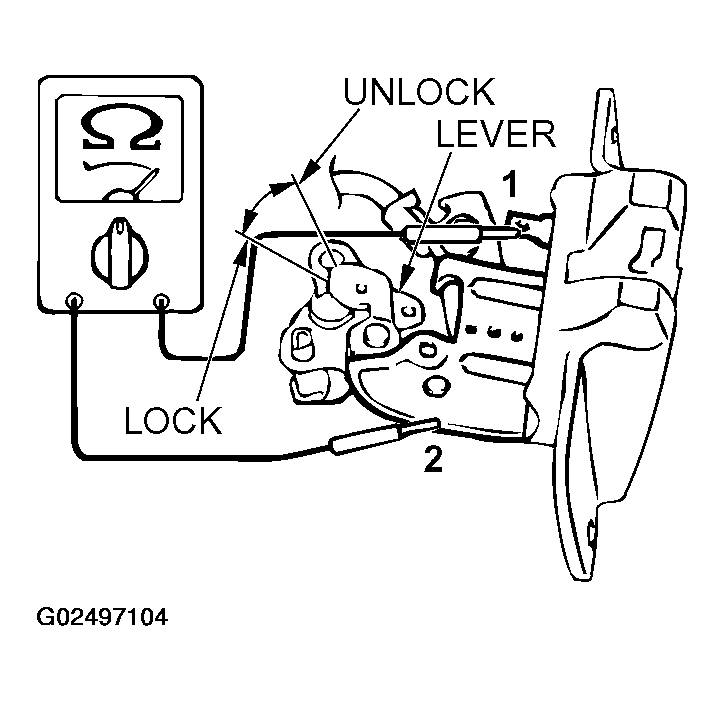

Fig 1: Checking Liftgate Latch
G02497104Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
TESTER CONNECTION SPECIFIED CONDITION

LEVER POSITION TESTER CONNECTION SPECIFIED CONDITION
At the "LOCK" position 1 - 2(Ground) Open circuit
At the "UNLOCK" position 1 - 2(Ground) Less than 2 ohms
