Defogger Relay Check

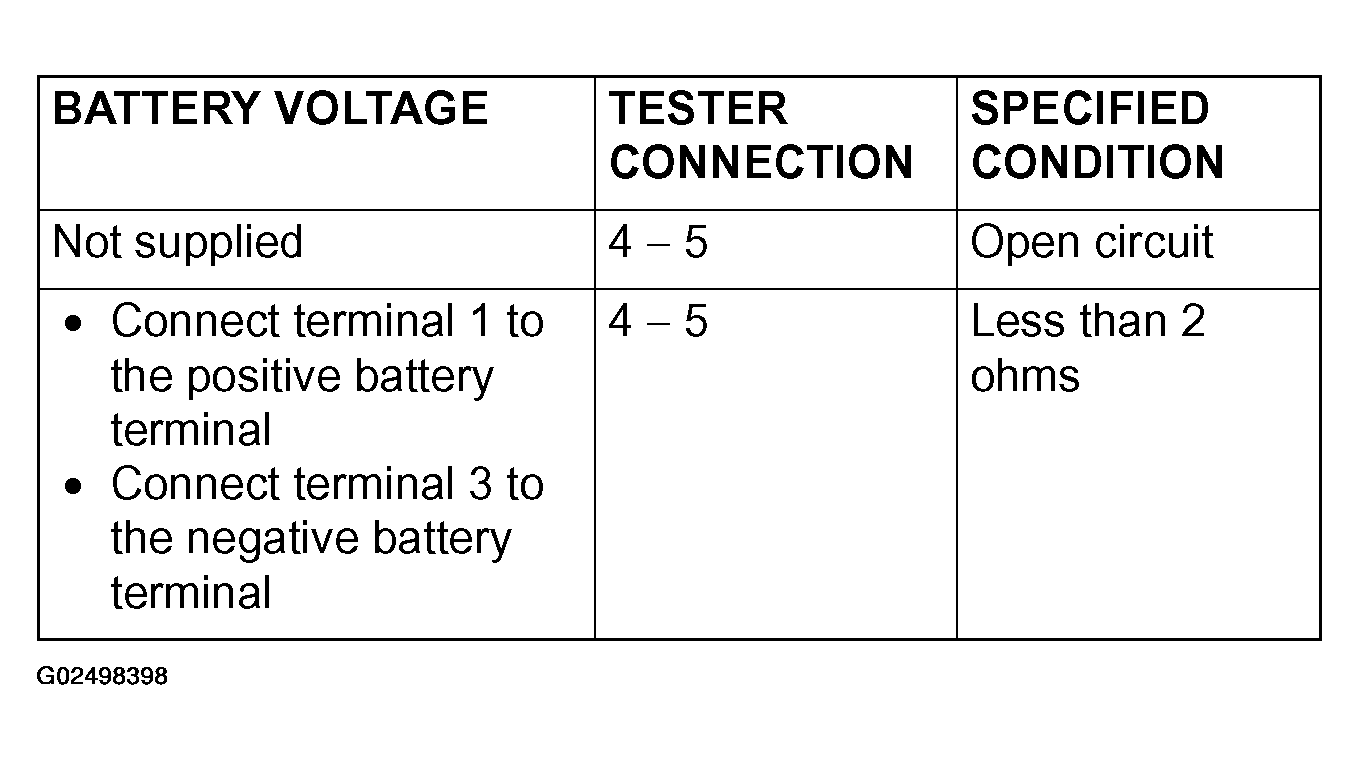

Fig 1: Tester Connection And Condition Reference
G02498398Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

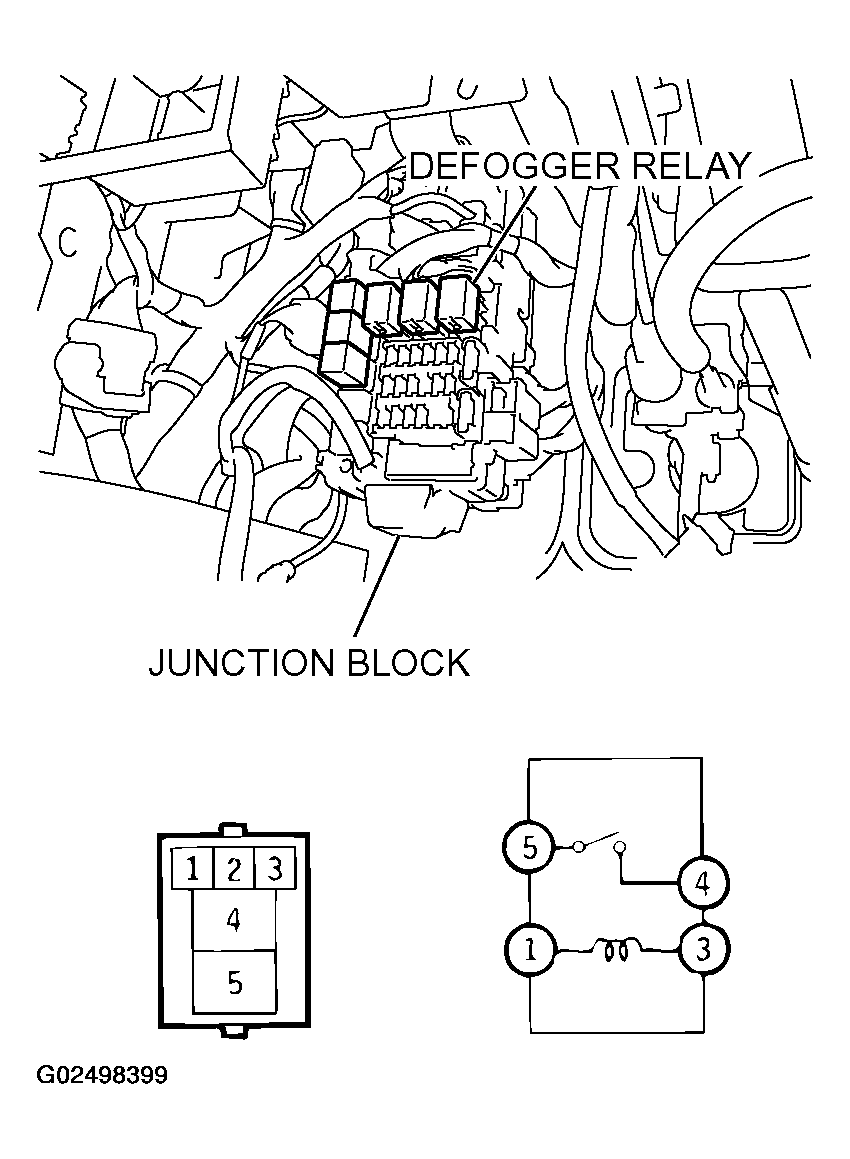

Fig 2: Identifying Defogger Relay Location
G02498399Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
