Removal And Installation: Notes

WARNING:
  • Before removal of the air bag module, refer to SRS SERVICE PRECAUTIONS and AIR BAG MODULE (S) AND CLOCK SPRING .
  • When removing and installing the steering wheel, do not let it bump against the air bag module.

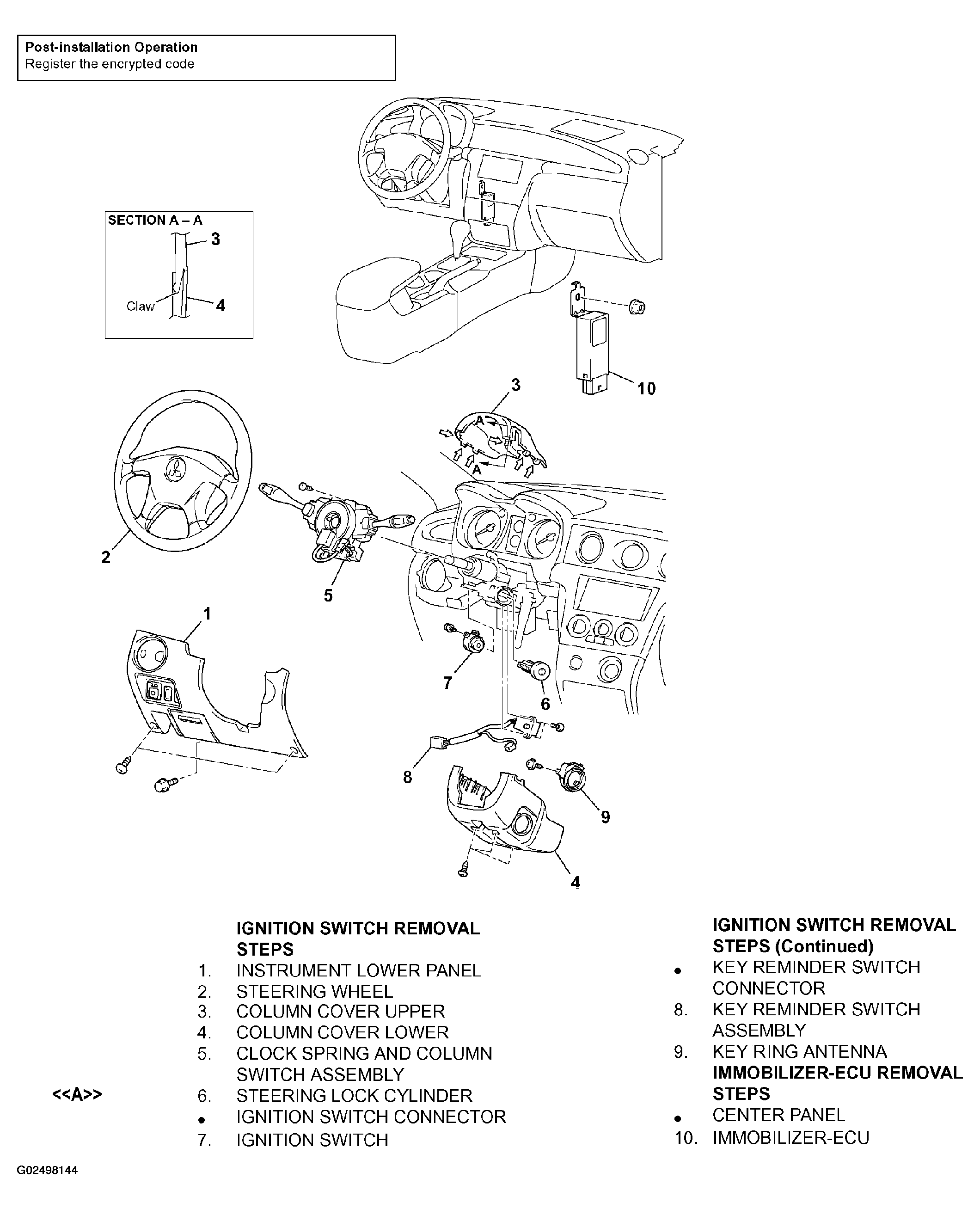

    Fig 1: Removing/Installing Ignition Switch
    G02498144Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
