Disassembly And Assembly: Notes

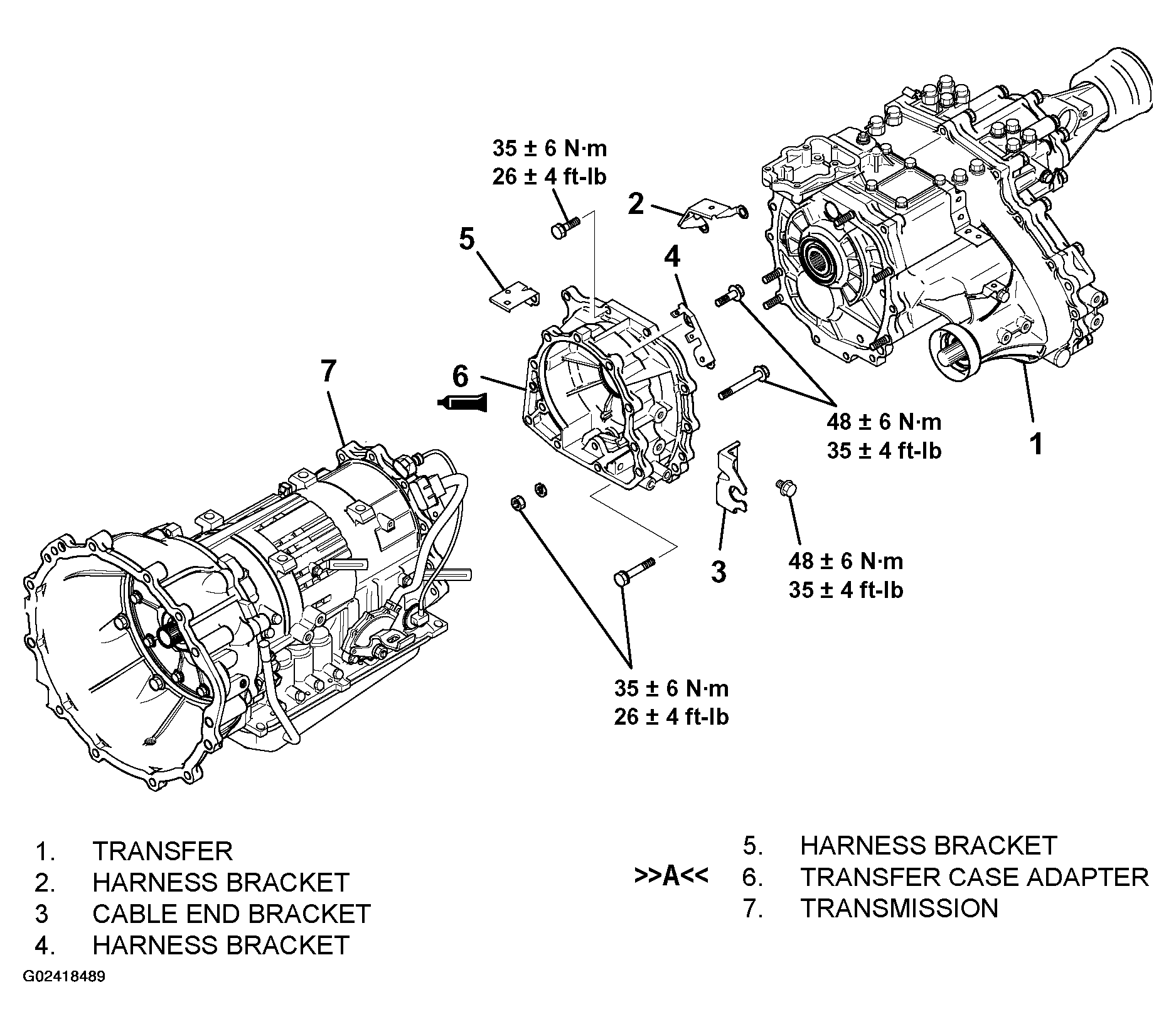

Fig 1: Removing & Installing Transmission And Transfer

G02418489

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
