Special Tools

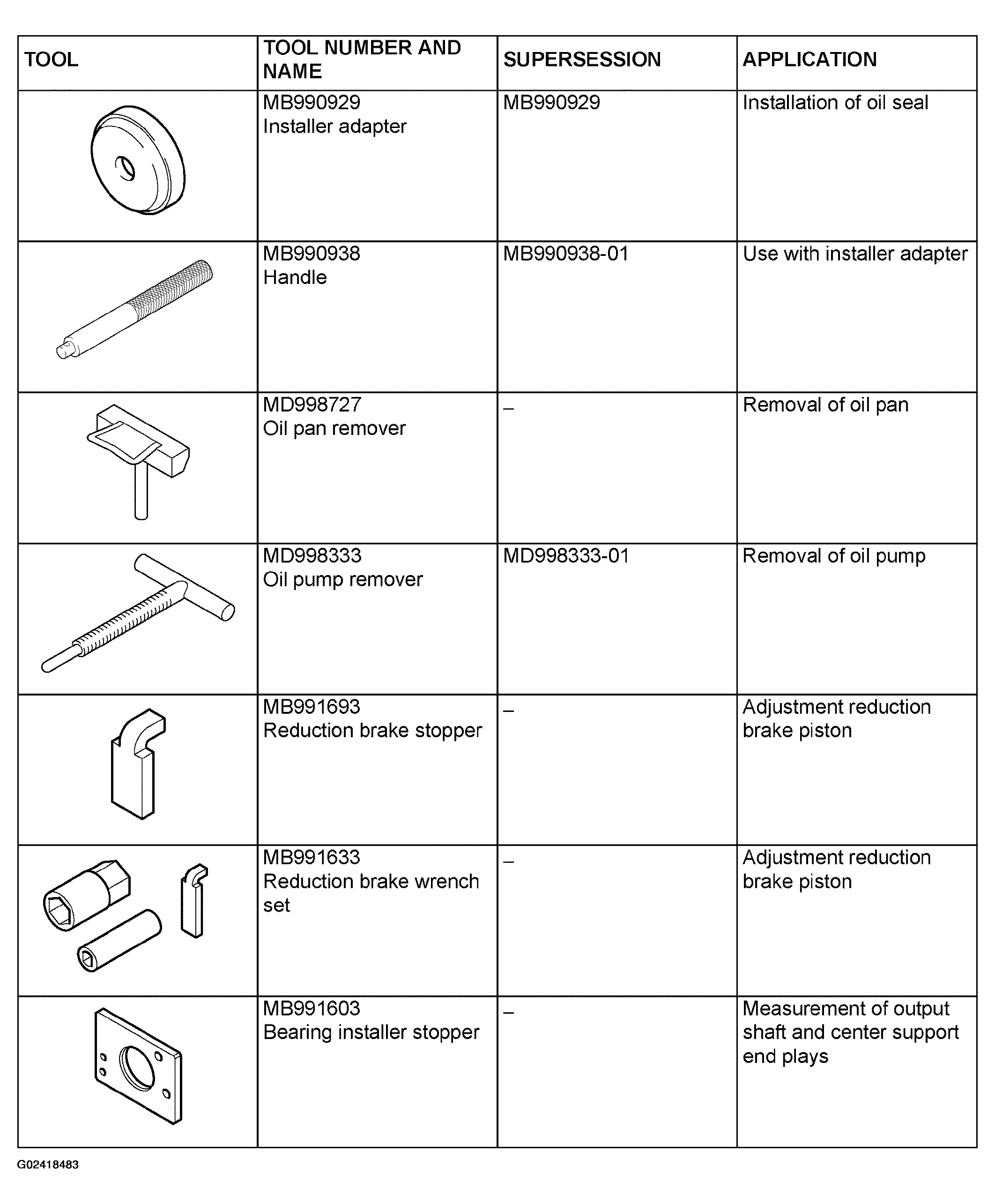

Fig 1: Identifying Special Tools (1 Of 6)

G02418483

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

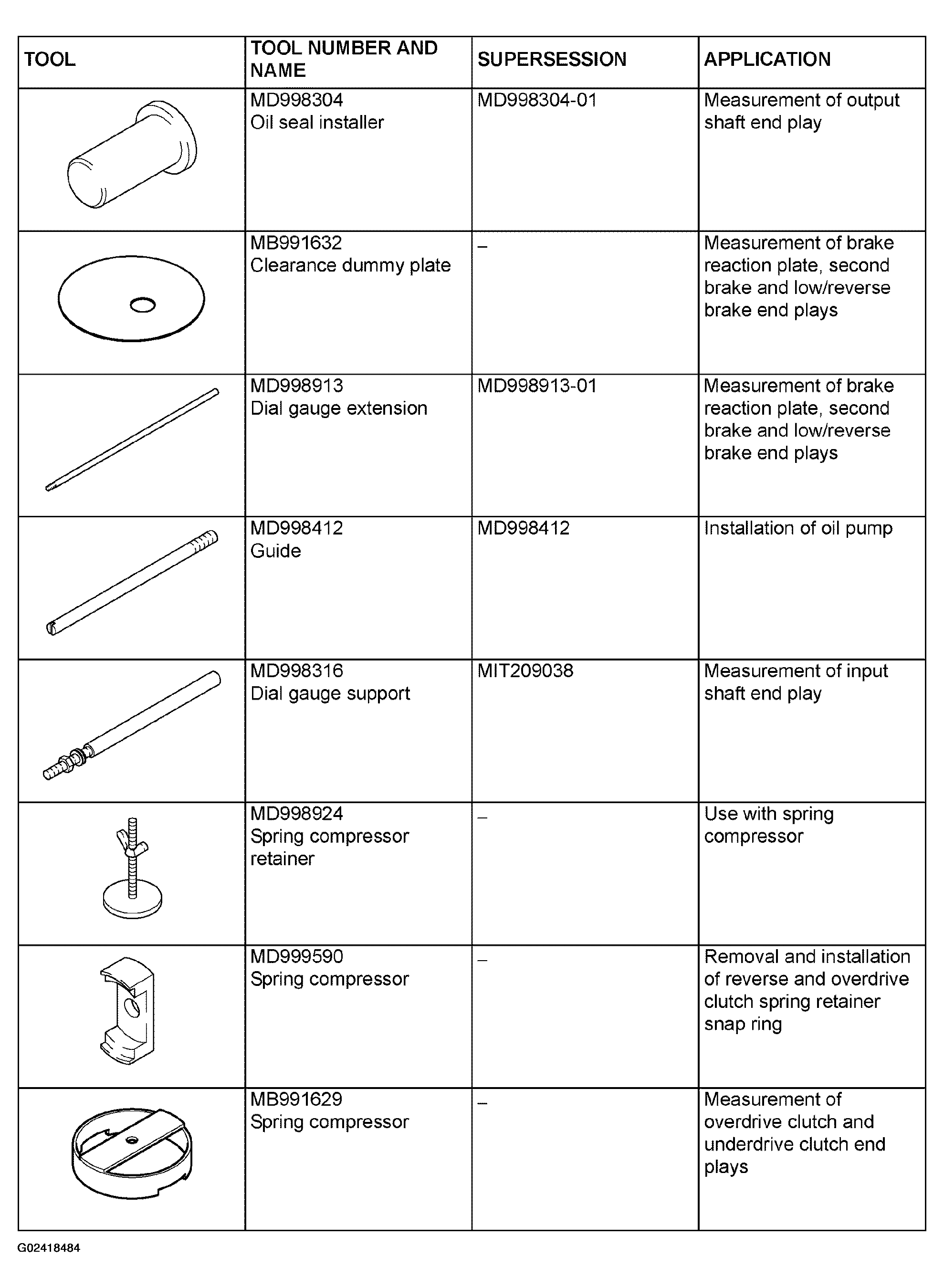

Fig 2: Identifying Special Tools (2 Of 6)

G02418484

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

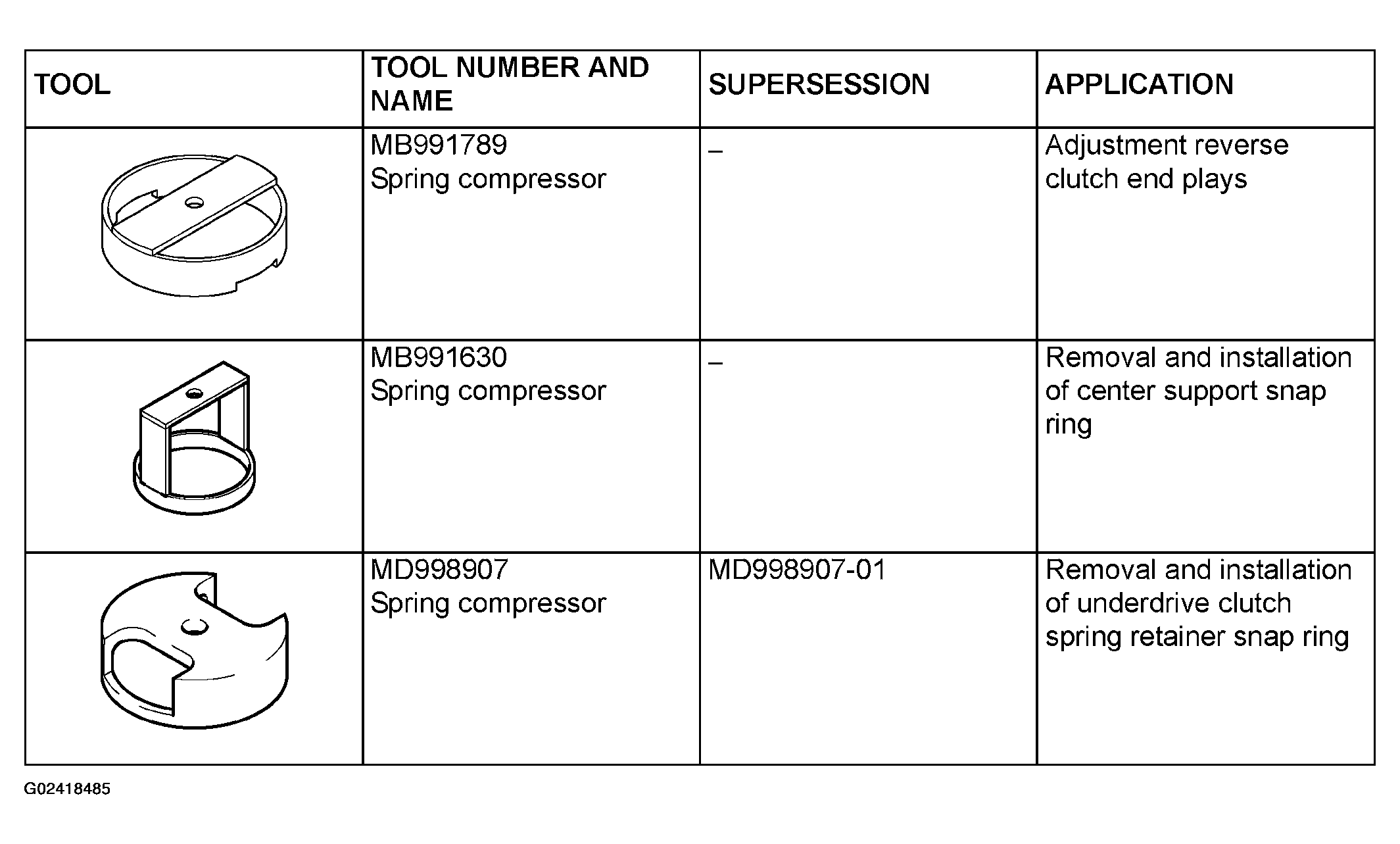

Fig 3: Identifying Special Tools (3 Of 6)

G02418485

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

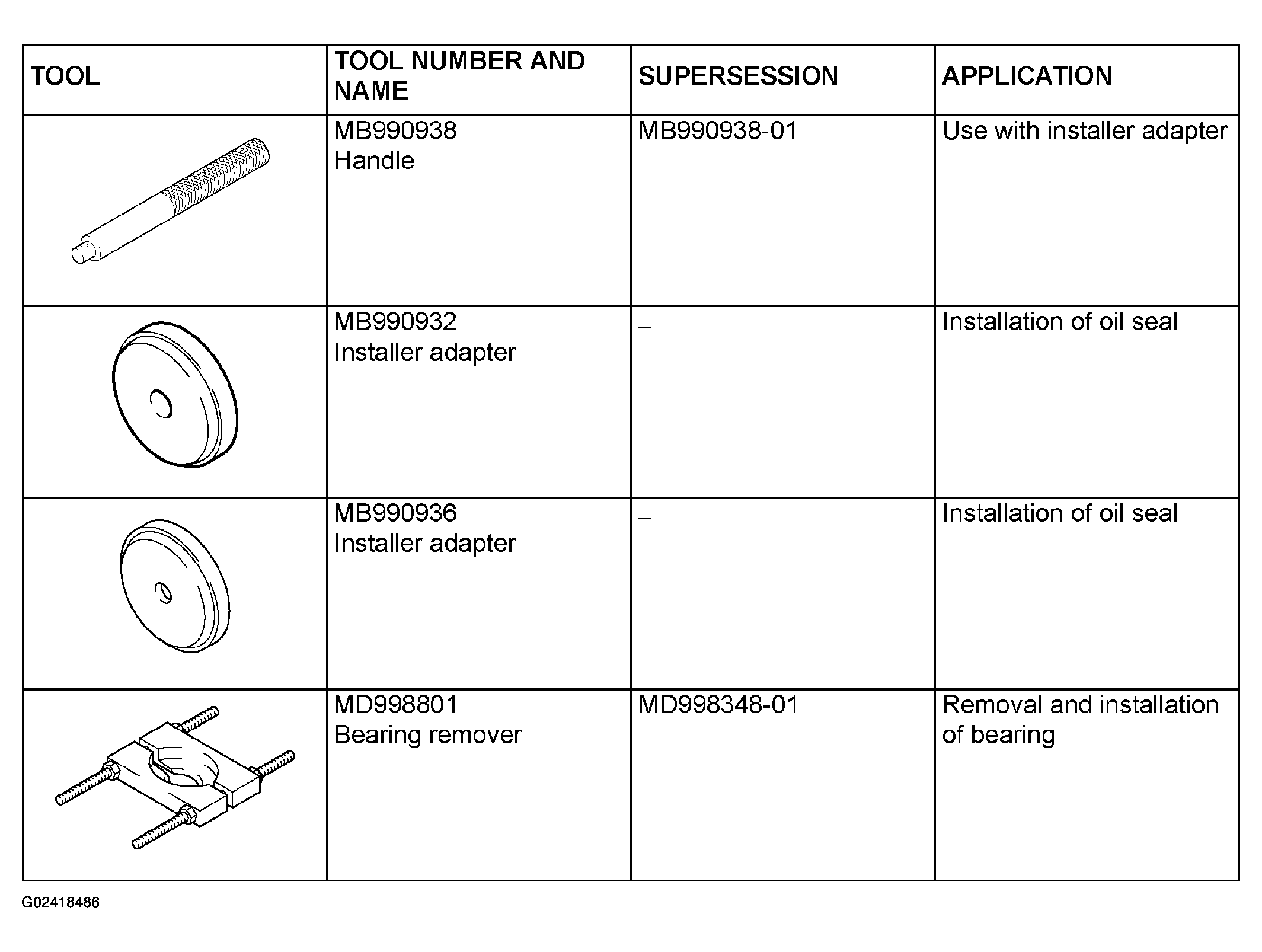

Fig 4: Identifying Special Tools (4 Of 6)

G02418486

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

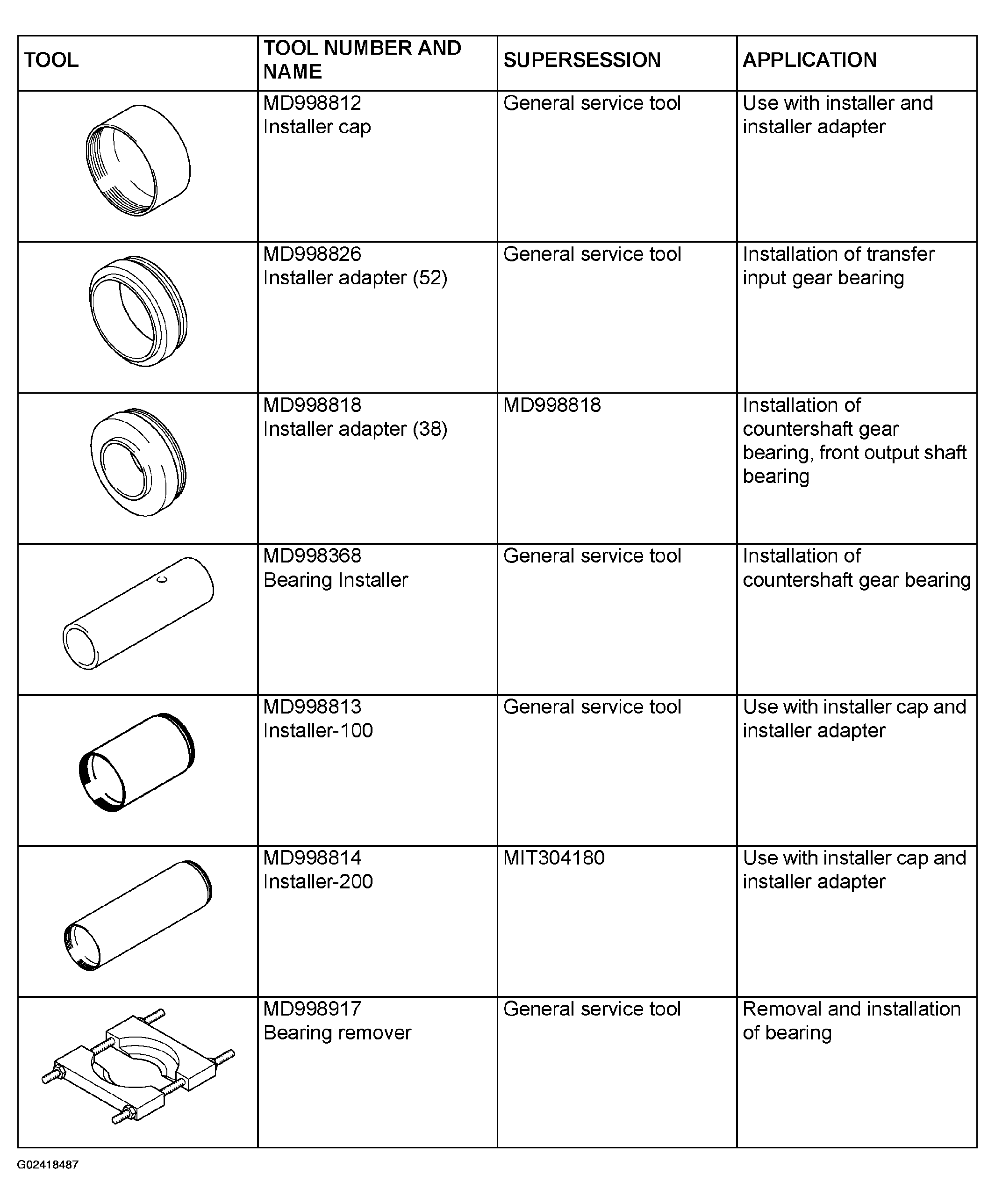

Fig 5: Identifying Special Tools (5 Of 6)

G02418487

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

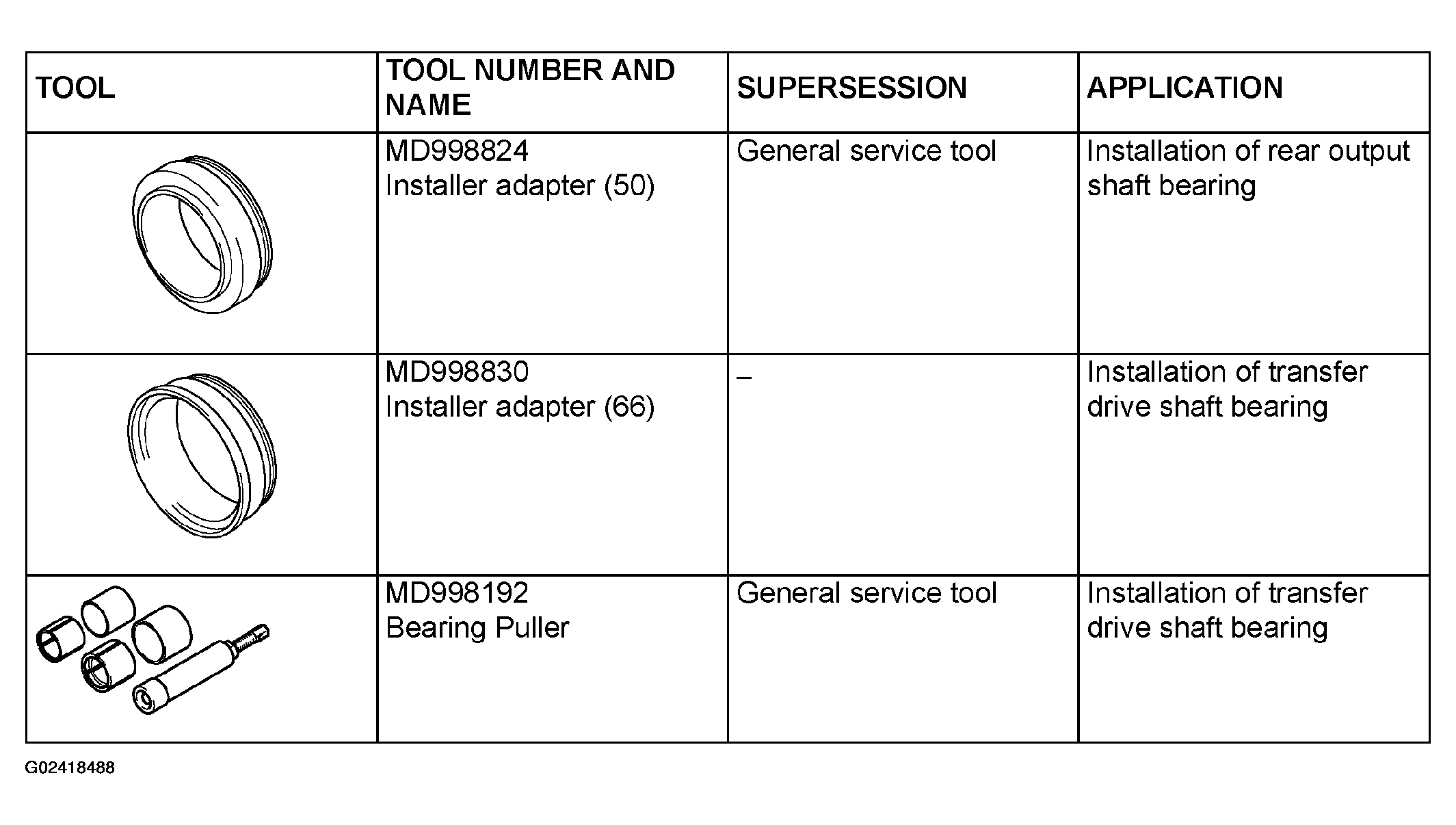

Fig 6: Identifying Special Tools (6 Of 6)

G02418488

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
