Home >> Mitsubishi >> 2005 >> Montero >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Overhaul >> Reverse And Overdrive Clutches >> Disassembly And Assembly >> Notes

Disassembly And Assembly: Notes

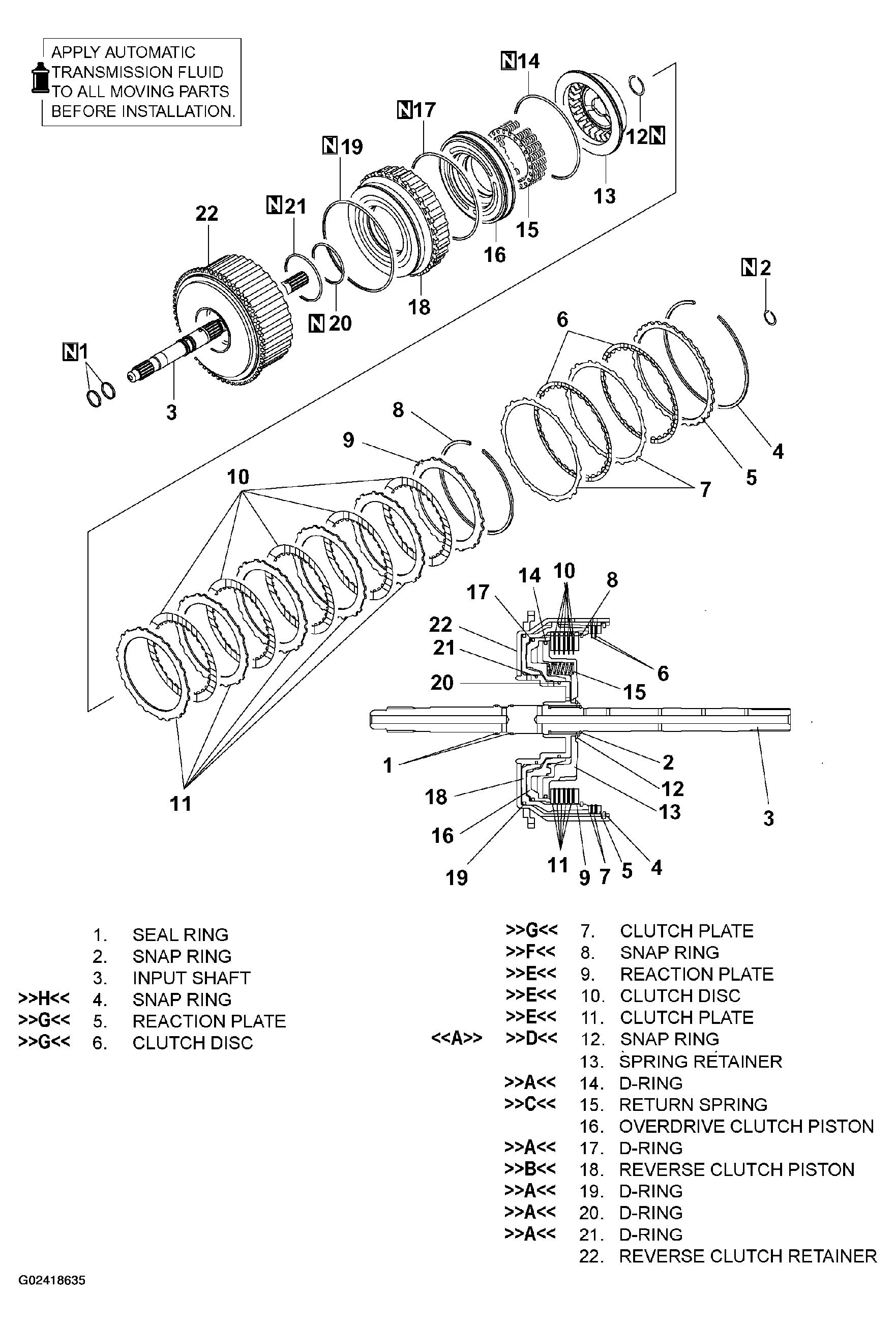

Fig 1: Exploded View Of Reverse And Overdrive Clutches
G02418635Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
