Removal And Installation

CAUTION: To prevent bushings from breakage, the parts indicated by * should be temporarily tightened, and then fully tightened with the vehicle on the ground in the unladen condition.

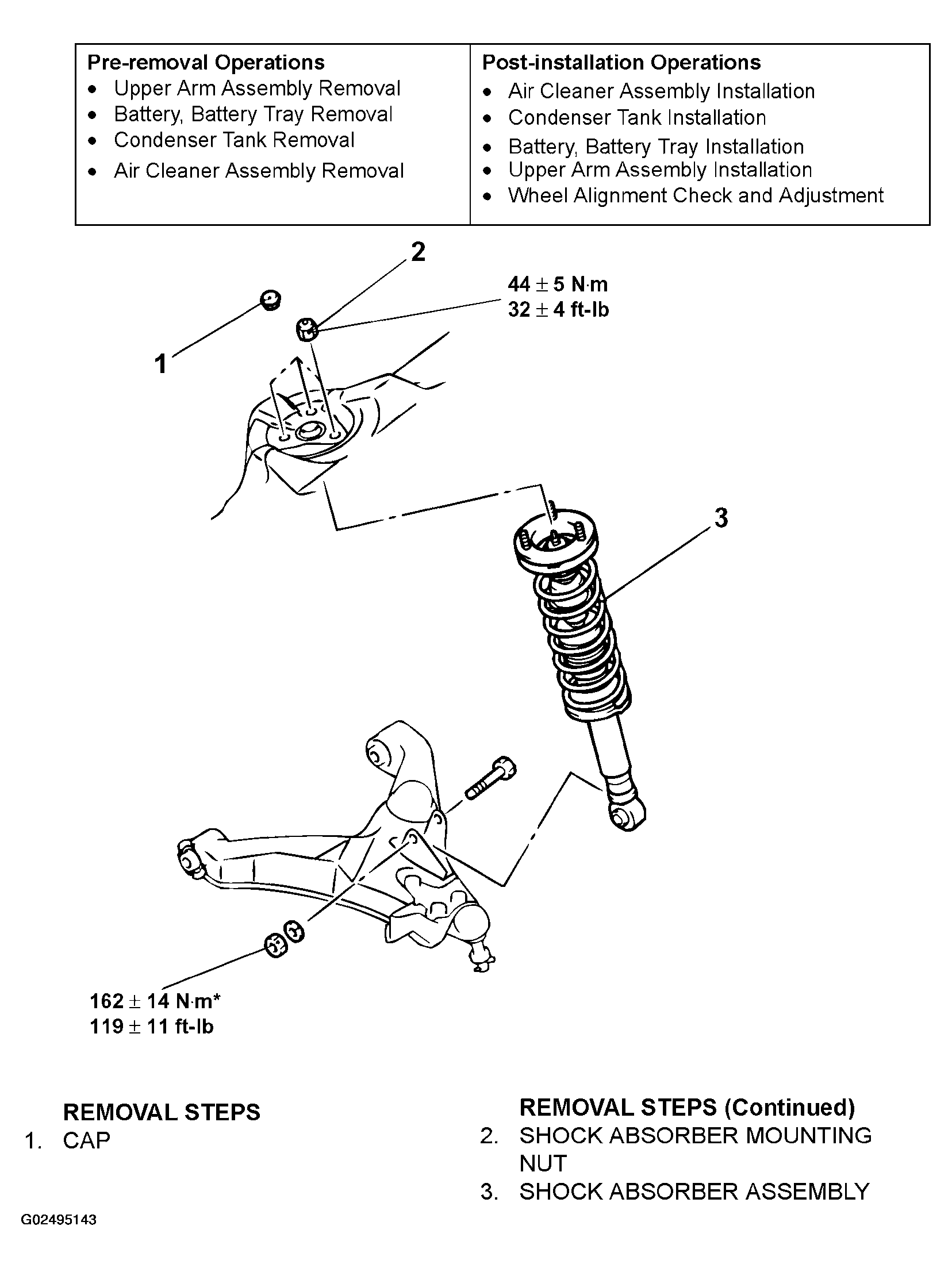

Fig 1: Identifying Shock Absorber Assembly Components
G02495143Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
