Disassembly And Assembly: Notes

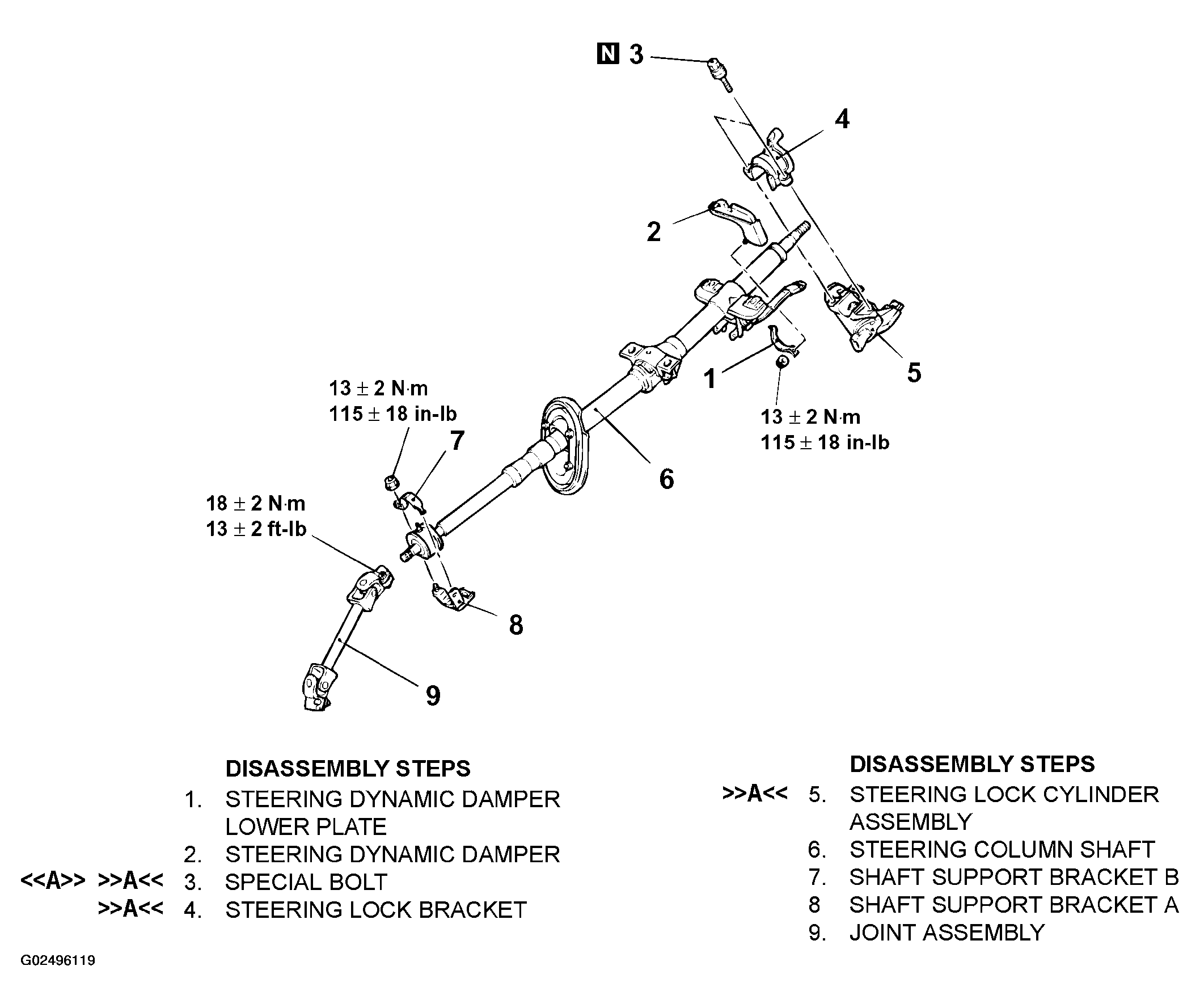

Fig 1: Identifying Steering Cover Shaft Assembly Components

G02496119

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
