Supplemental Restraint System (SRS): General Description: Schematic

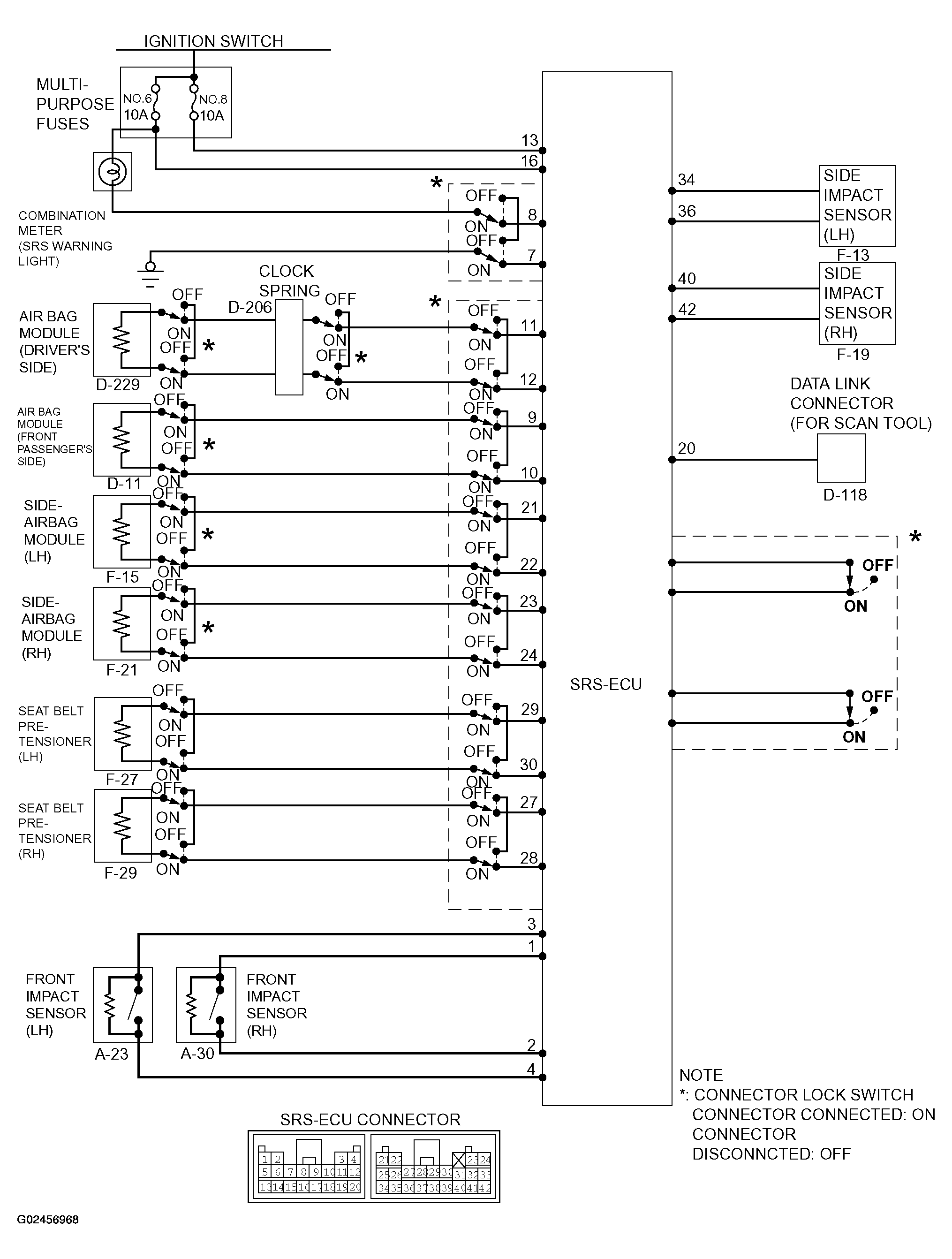

Fig 1: SRS Schematic

G02456968

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
