Scan Tool (Mut-III Sub Assembly)

CAUTION: Turn the ignition switch to the "LOCK" (OFF) position before disconnecting or connecting the scan tool.
NOTE: MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.

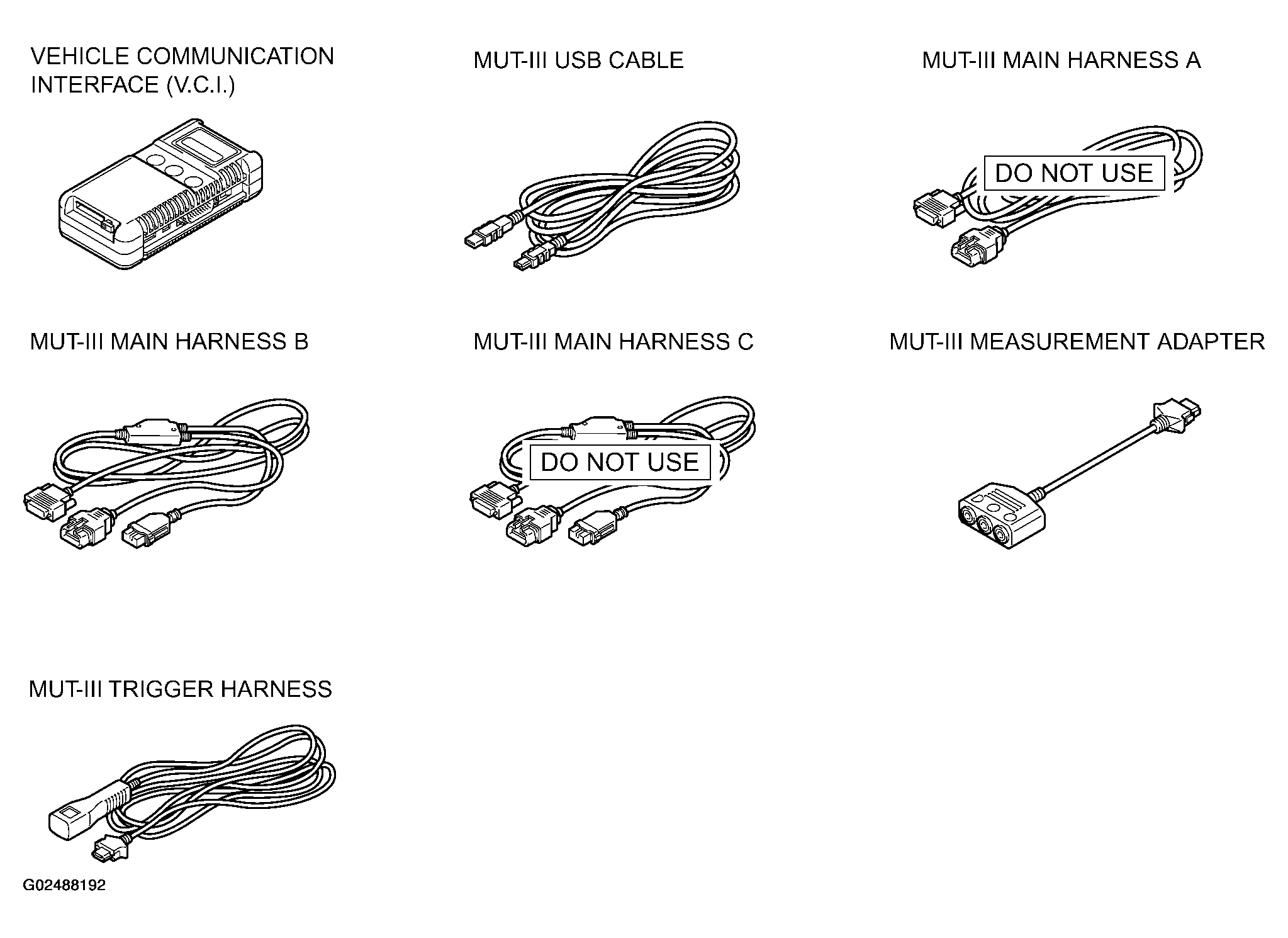

Fig 1: Identifying Scan Tools
G02488192Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
