Inspection Procedures Using An Oscilloscope

When there are inspection procedures using an oscilloscope, these are listed.

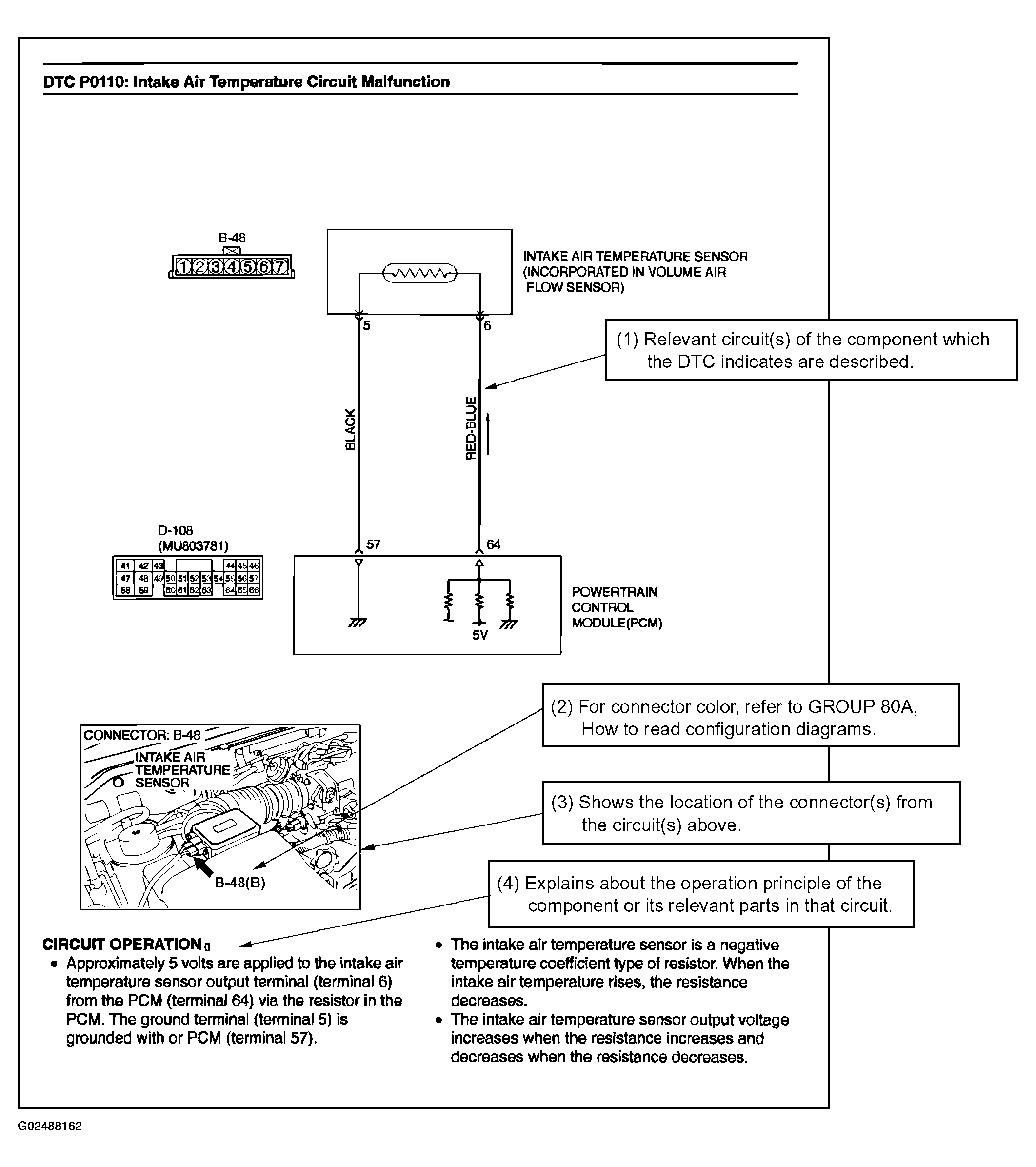

Fig 1: Intake Temperature Circuit
G02488162Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

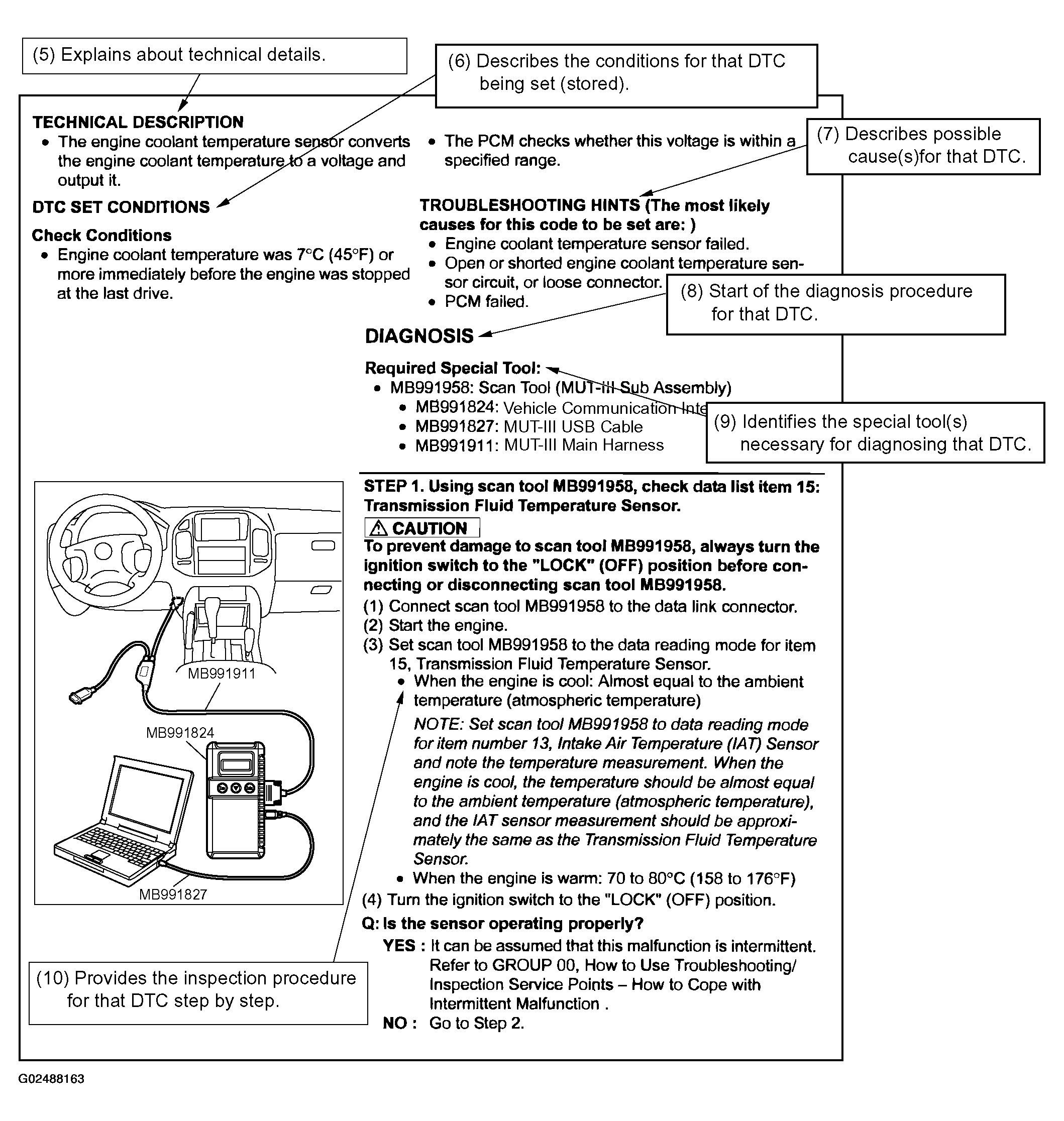

Fig 2: Connecting Special Tool To Data Link Connector
G02488163Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
