Body And Chassis
>>
General Data And Specifications
General Data And Specifications

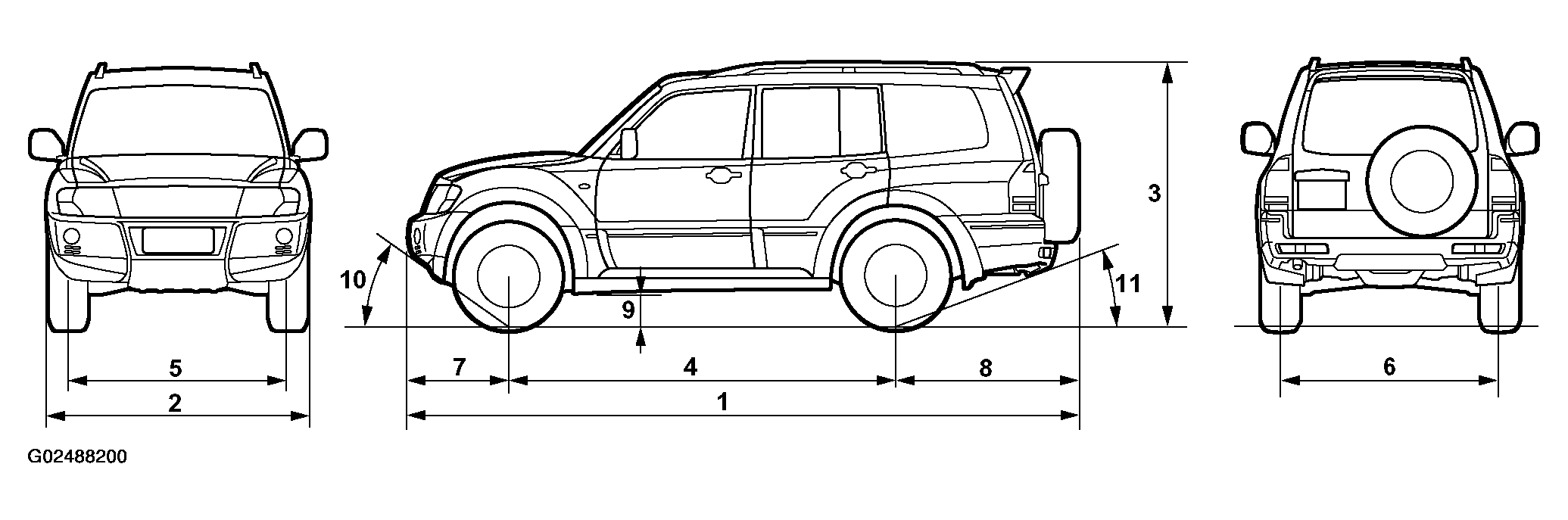

Fig 1: Identifying Vehicle Dimensions
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

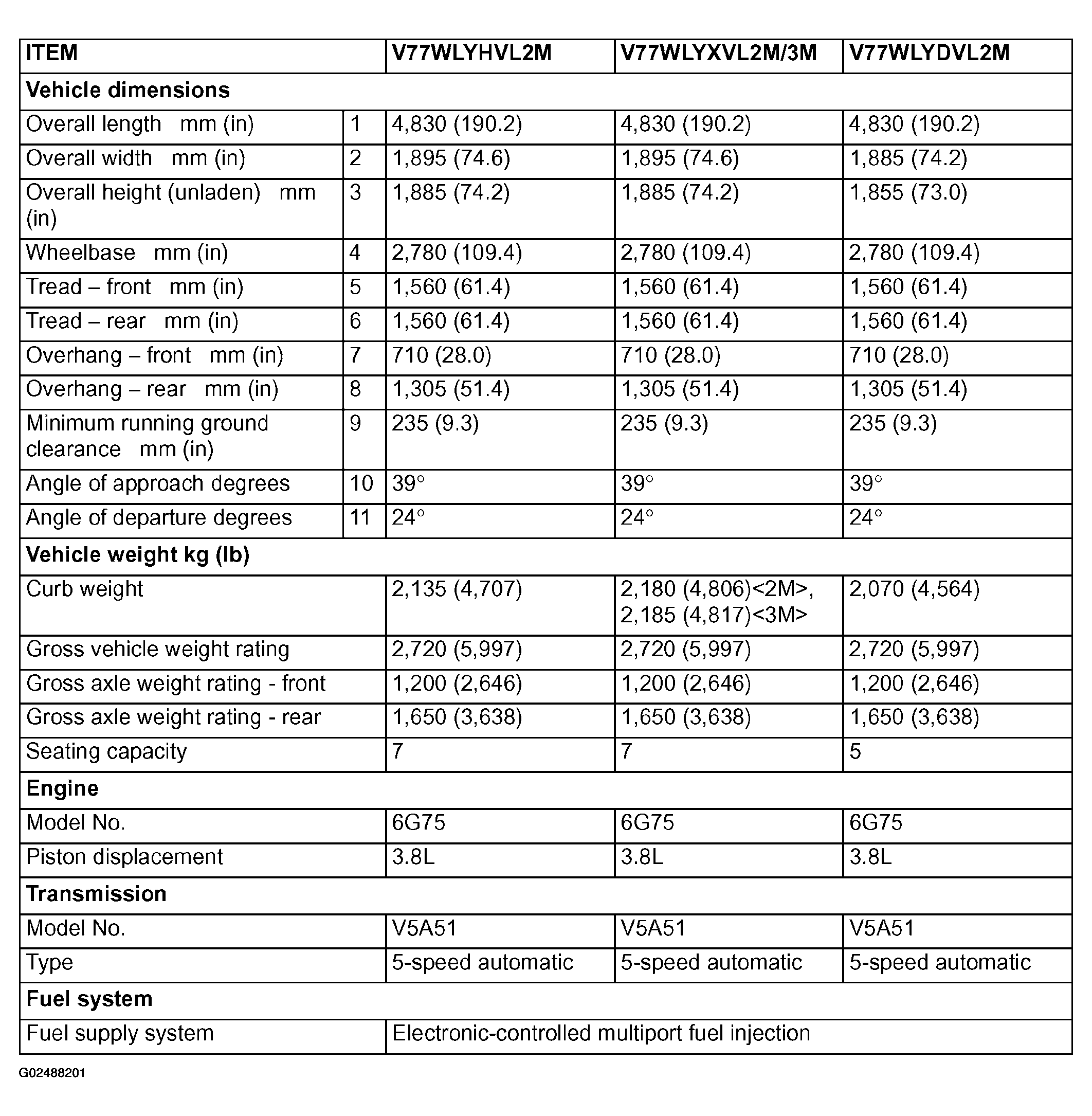

Fig 2: General Data And Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
