Removal And Installation

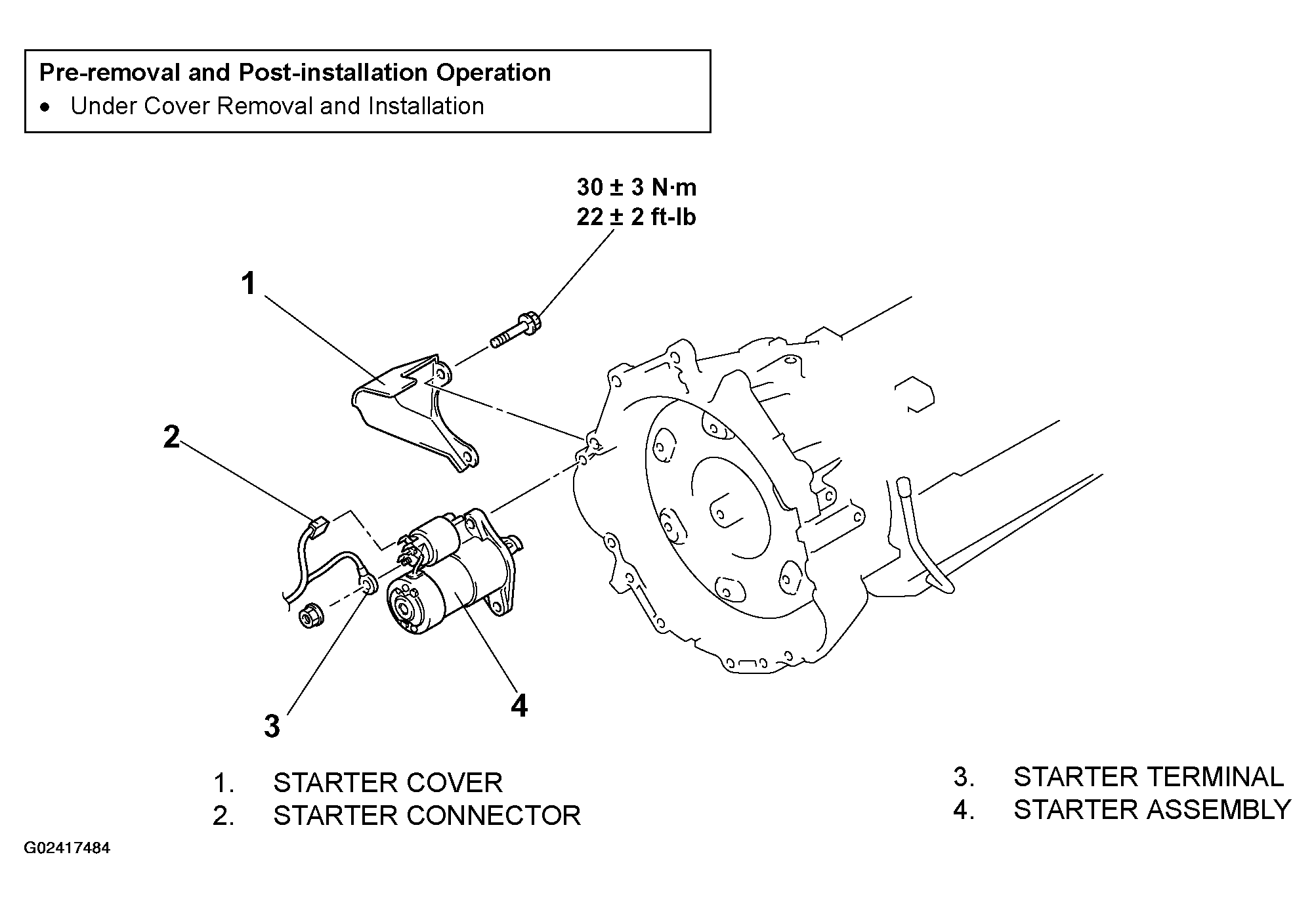

Fig 1: Removing & Installing Starter Motor Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
