DTC 67: Communication error in steering wheel sensor: Notes

CAUTION: If the diagnostic trouble code(s), which indicate a communication error in the steering wheel sensor, has been set, diagnose the CAN main bus line.

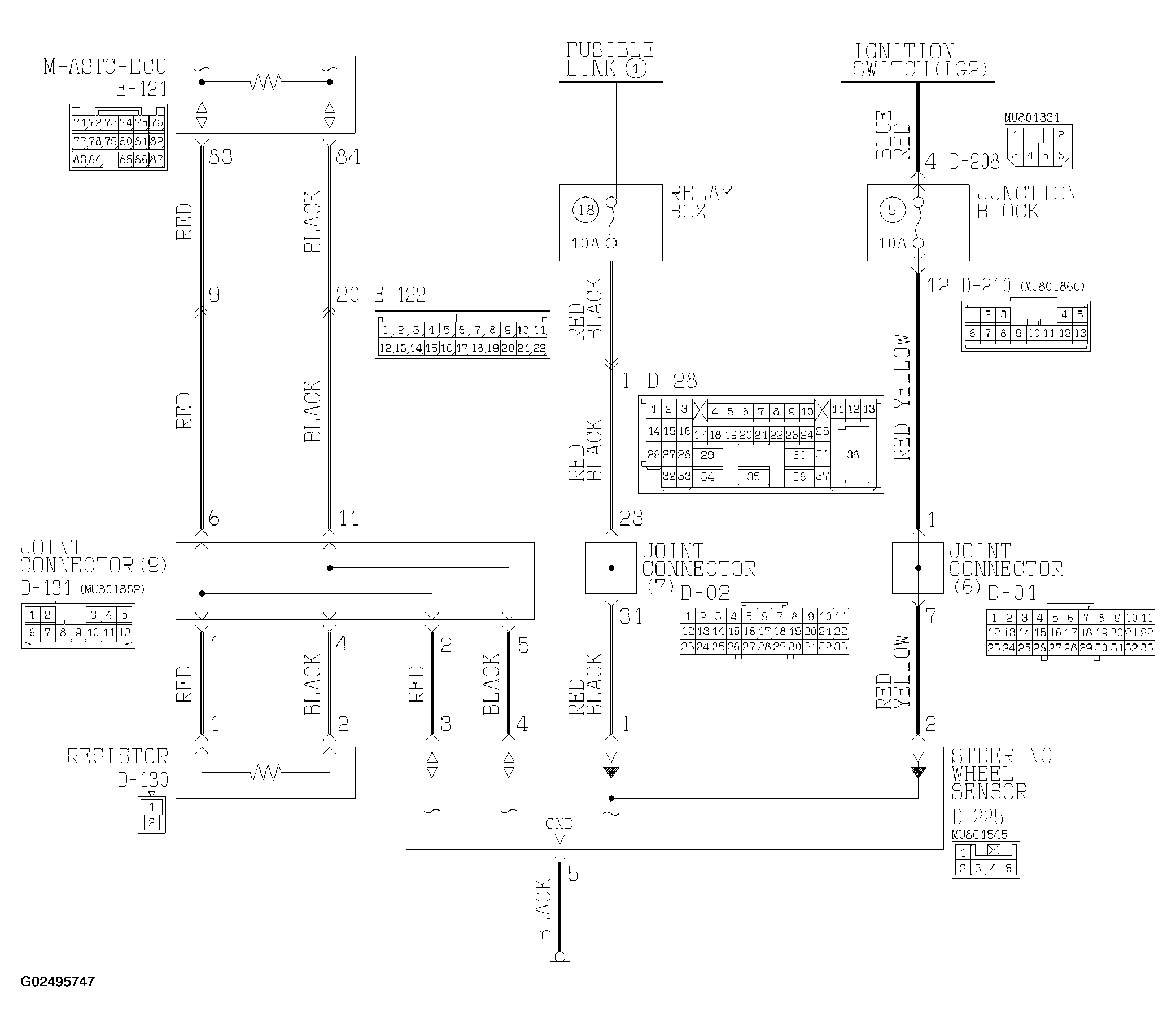

Fig 1: Steering Wheel Sensor Communication Circuit Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Steering Wheel Sensor Communication Circuit Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
