DTC 17: Defective active skid control switch: Notes

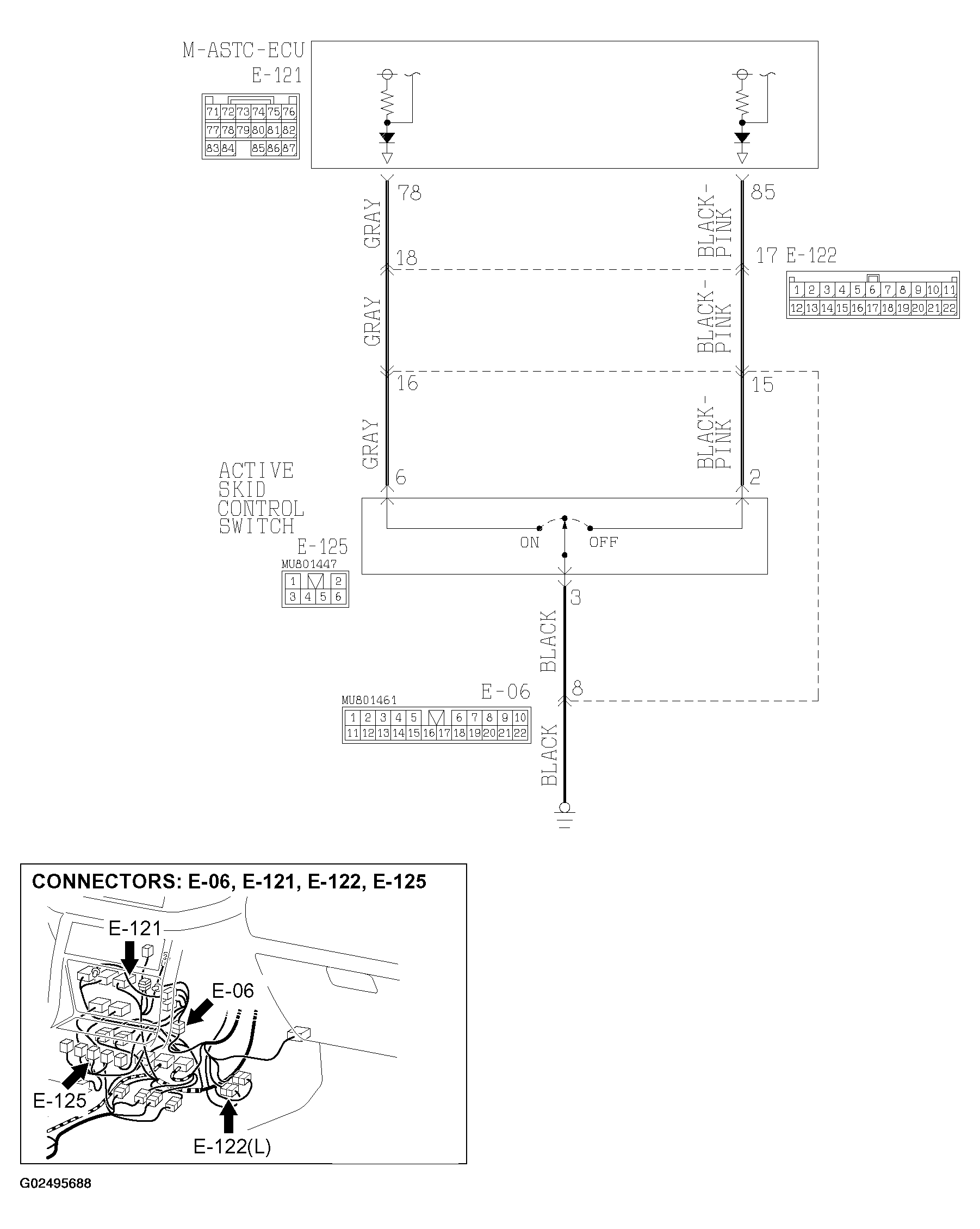

Fig 1: Active Skid Control Switch Circuit Diagram
G02495688Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
