Diagnostic Trouble Code Chart

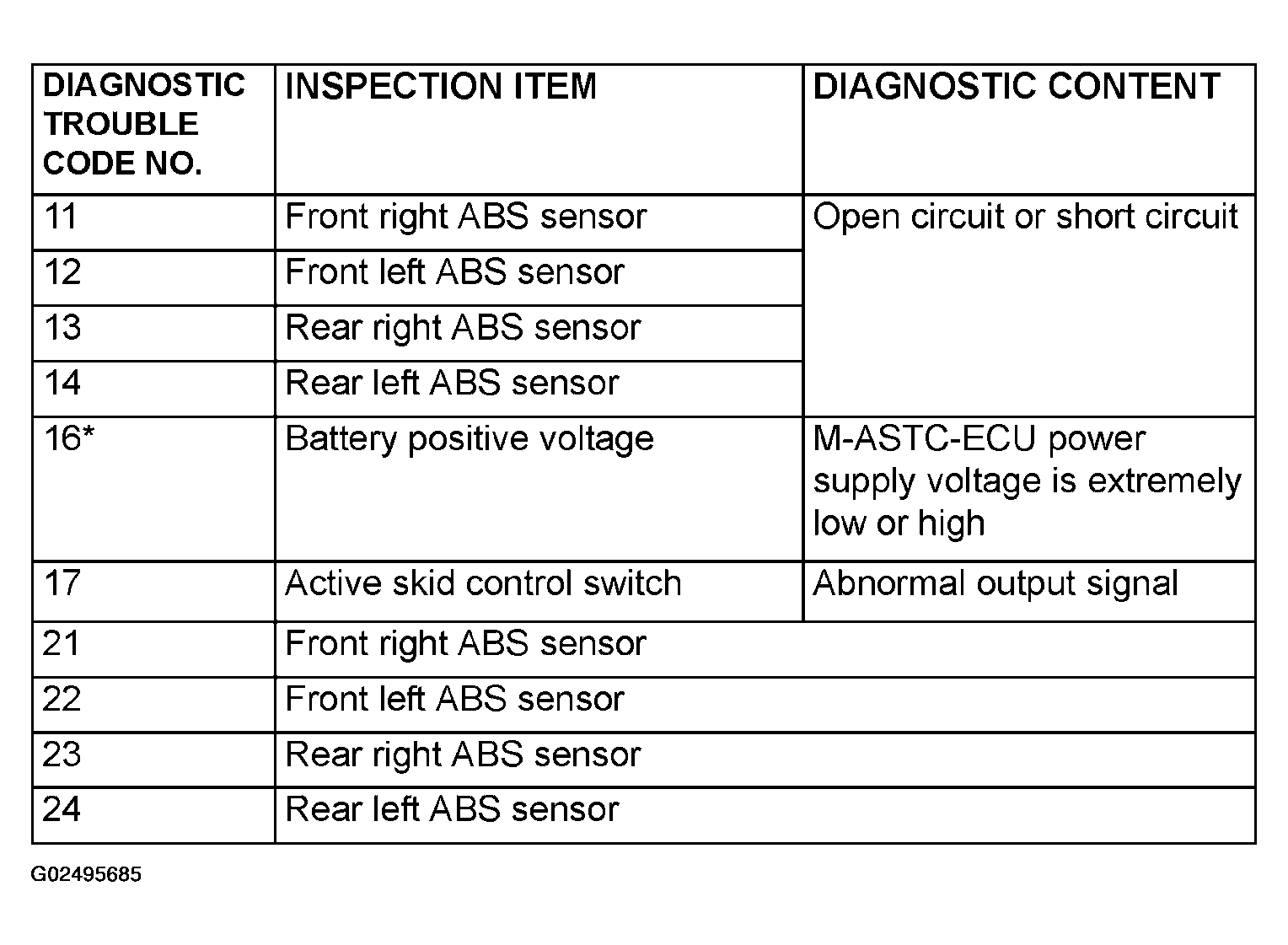

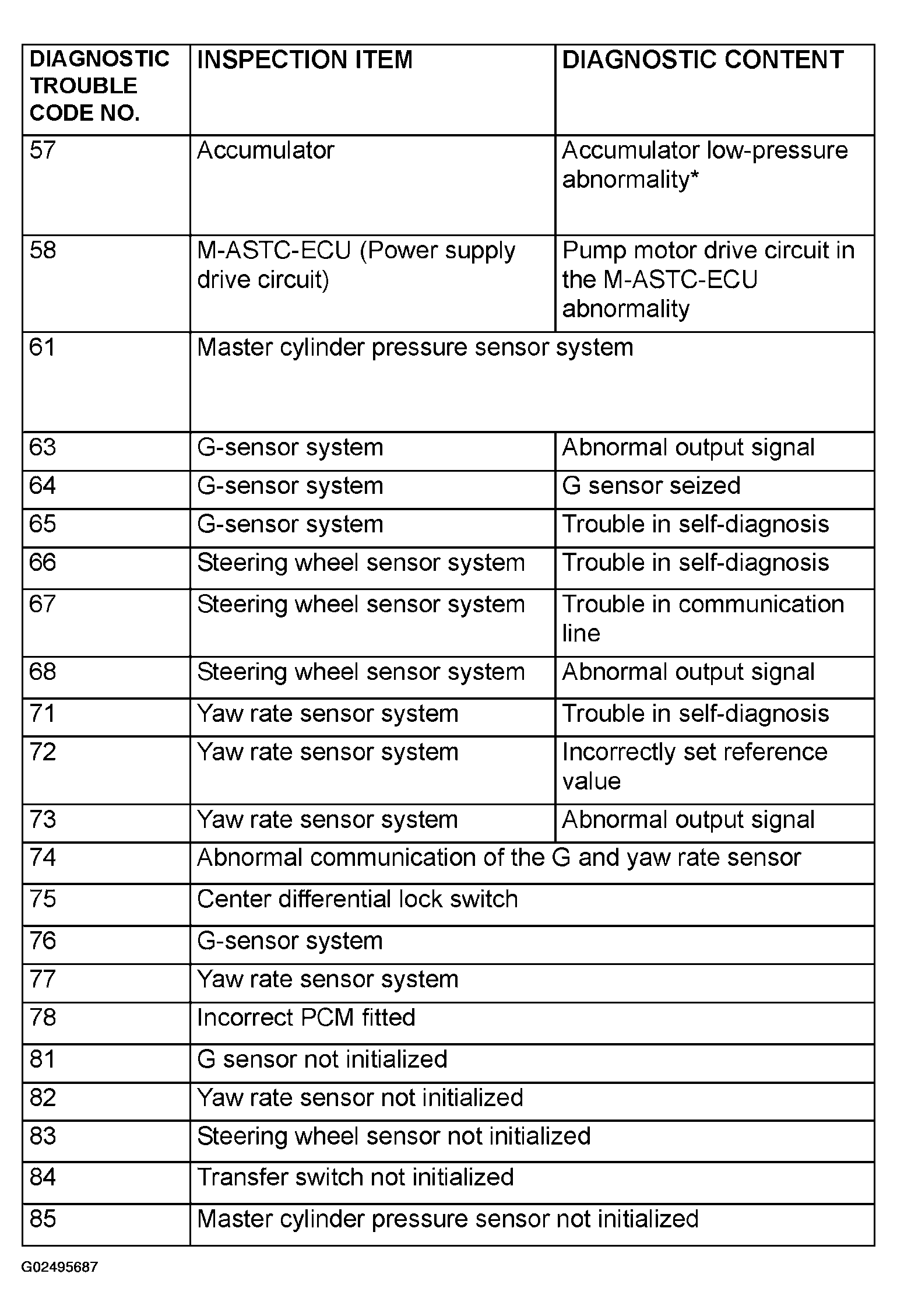

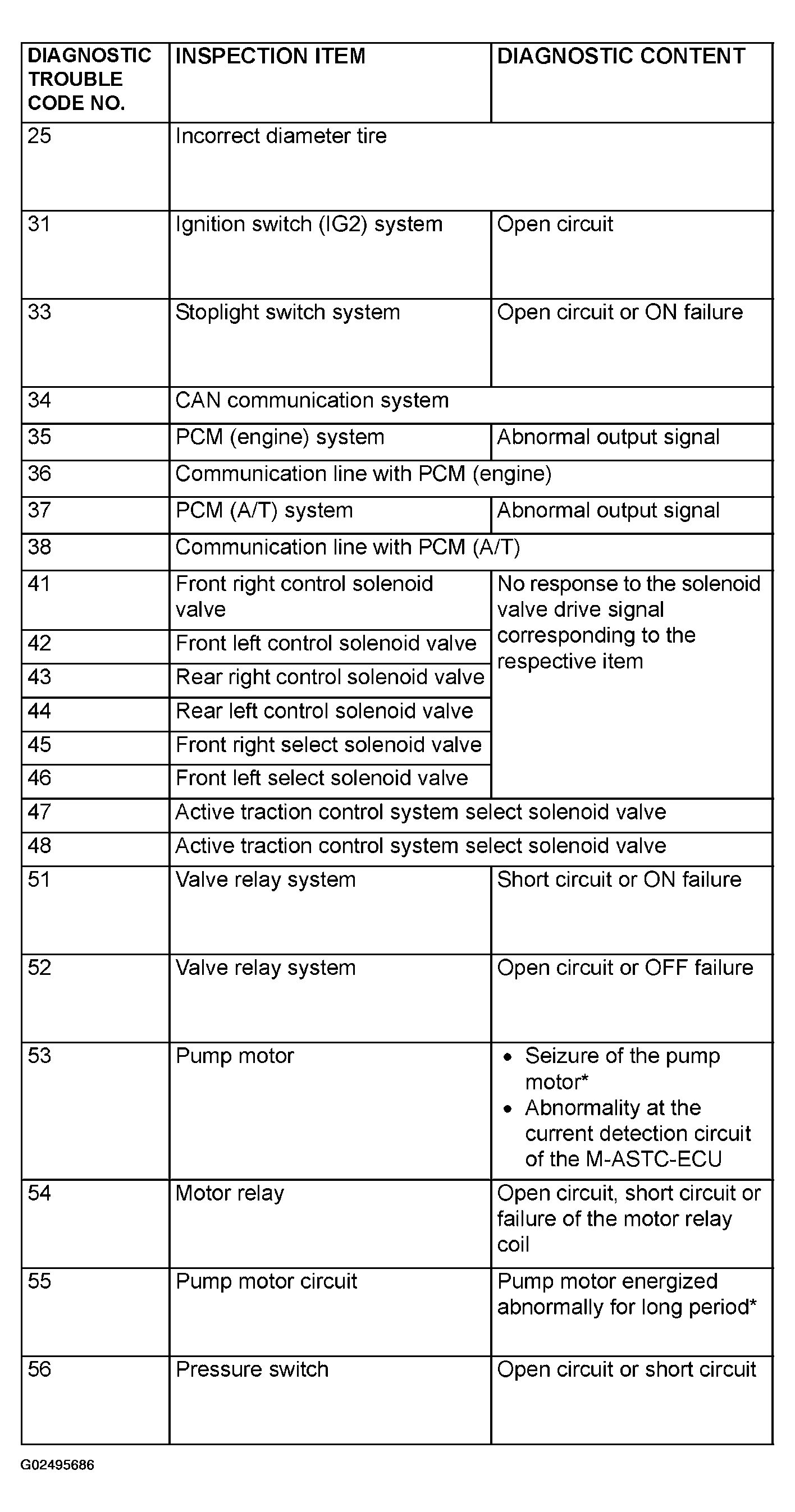

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 17 | Defective active skid control switch |
| DTC 34 | Defective CAN bus line |
| DTC 35, 37, 78 | Defective power control module |
| DTC 36, 38 | Communication error in power control module |
| DTC 47, 48 | Defective Cut Valve & Defective Pressure-increase Valve |
| DTC 63, 64, 65, 71, 72, 73, 76, 77 | Trouble in G and yaw rate sensor system |
| DTC 66, 68, 83 | Trouble in steering wheel sensor system |
| DTC 67 | Communication error in steering wheel sensor |
| DTC 74 | Communication error in G and yaw rate sensor |
| DTC 75 | Defective transfer switch |
| DTC 81, 82 | G sensor not initialized & Yaw rate sensor not initialized |
| DTC 83 | Steering wheel sensor not initialized |
| DTC 84 | Transfer switch not initialized |
| DTC 85 | Master cylinder pressure sensor not initialized |
Follow the inspection chart that is appropriate for the diagnostic trouble code.
