General Description
>>
Construction Diagram
>>
Notes
Construction Diagram: Notes

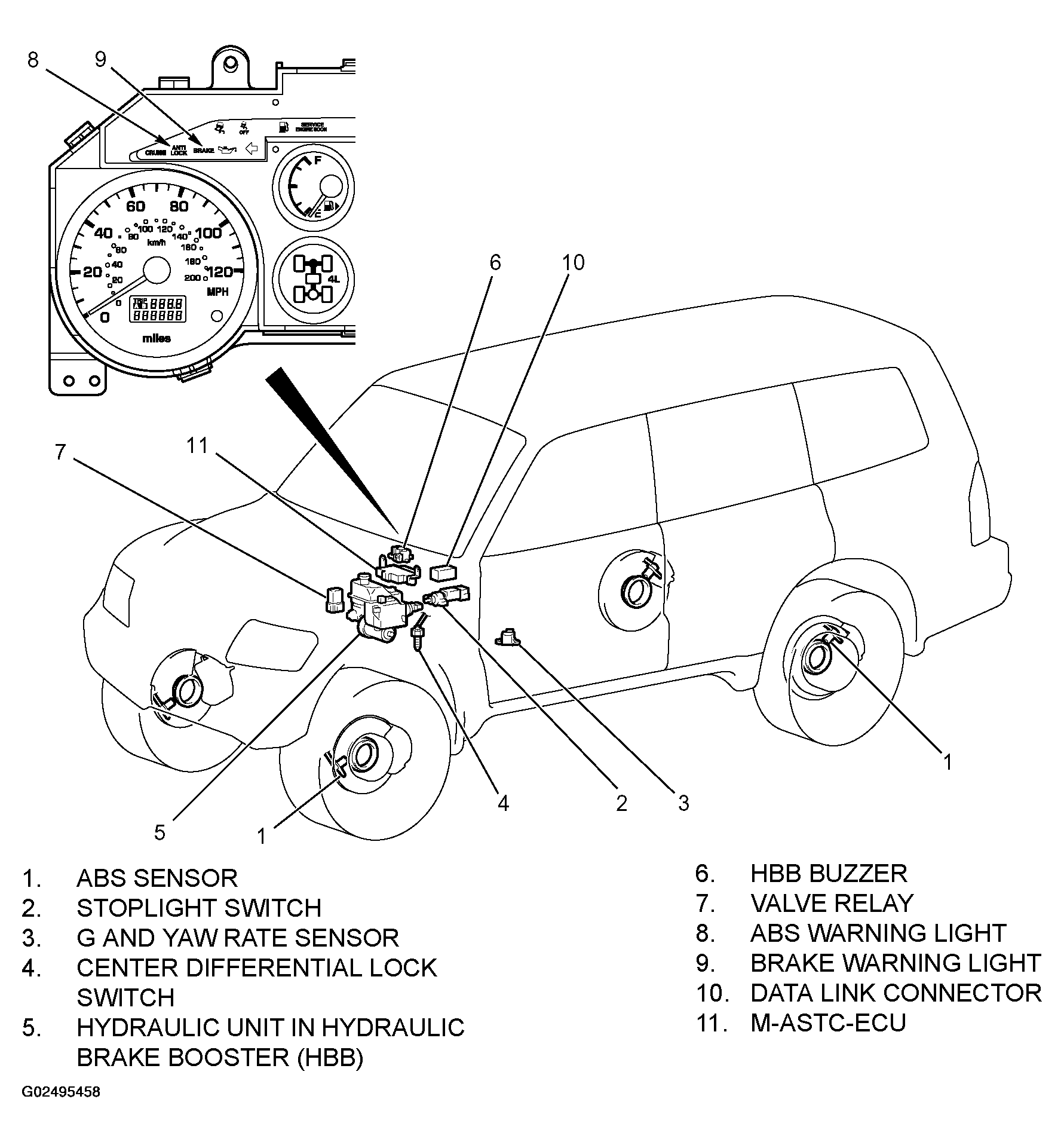

Fig 1: Identifying Anti-Lock Braking System (ABS) Construction Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
