DTC 33: Stoplight Switch System: Notes

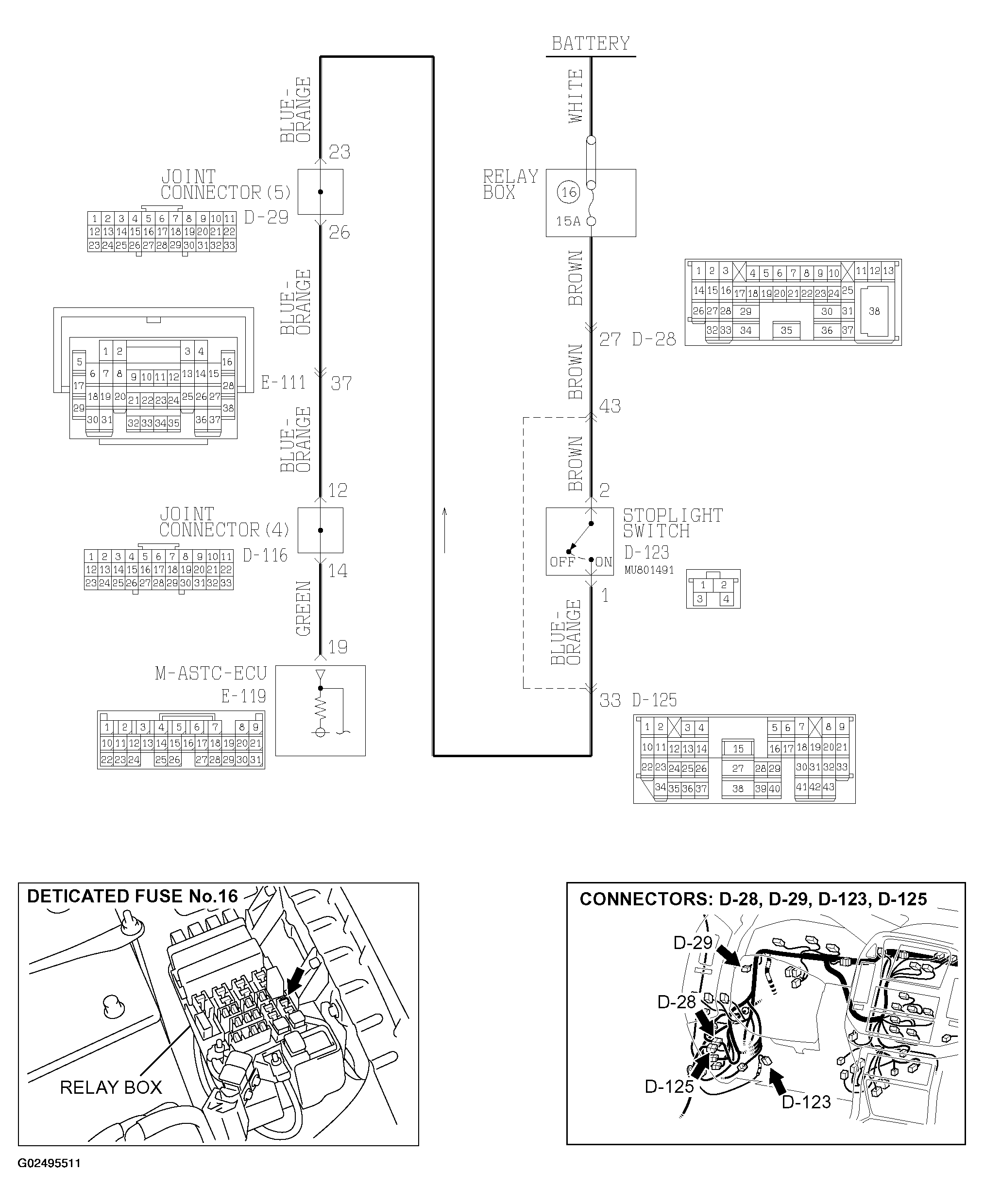

Fig 1: Stoplight Switch - Circuit Diagram (1 Of 2)
G02495511Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

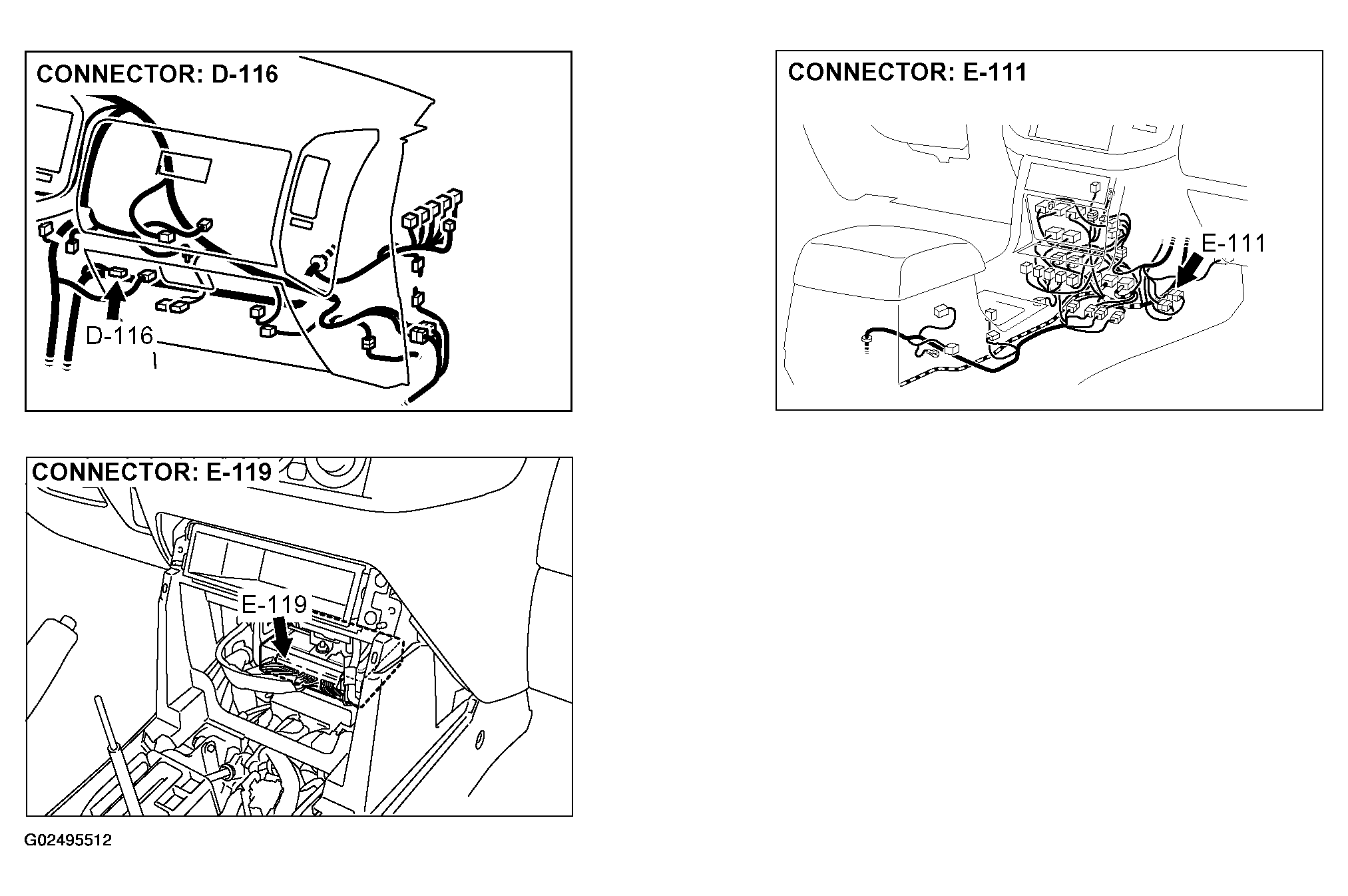

Fig 2: Stoplight Switch - Circuit Diagram (2 Of 2)
G02495512Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
