Removal And Installation: Notes

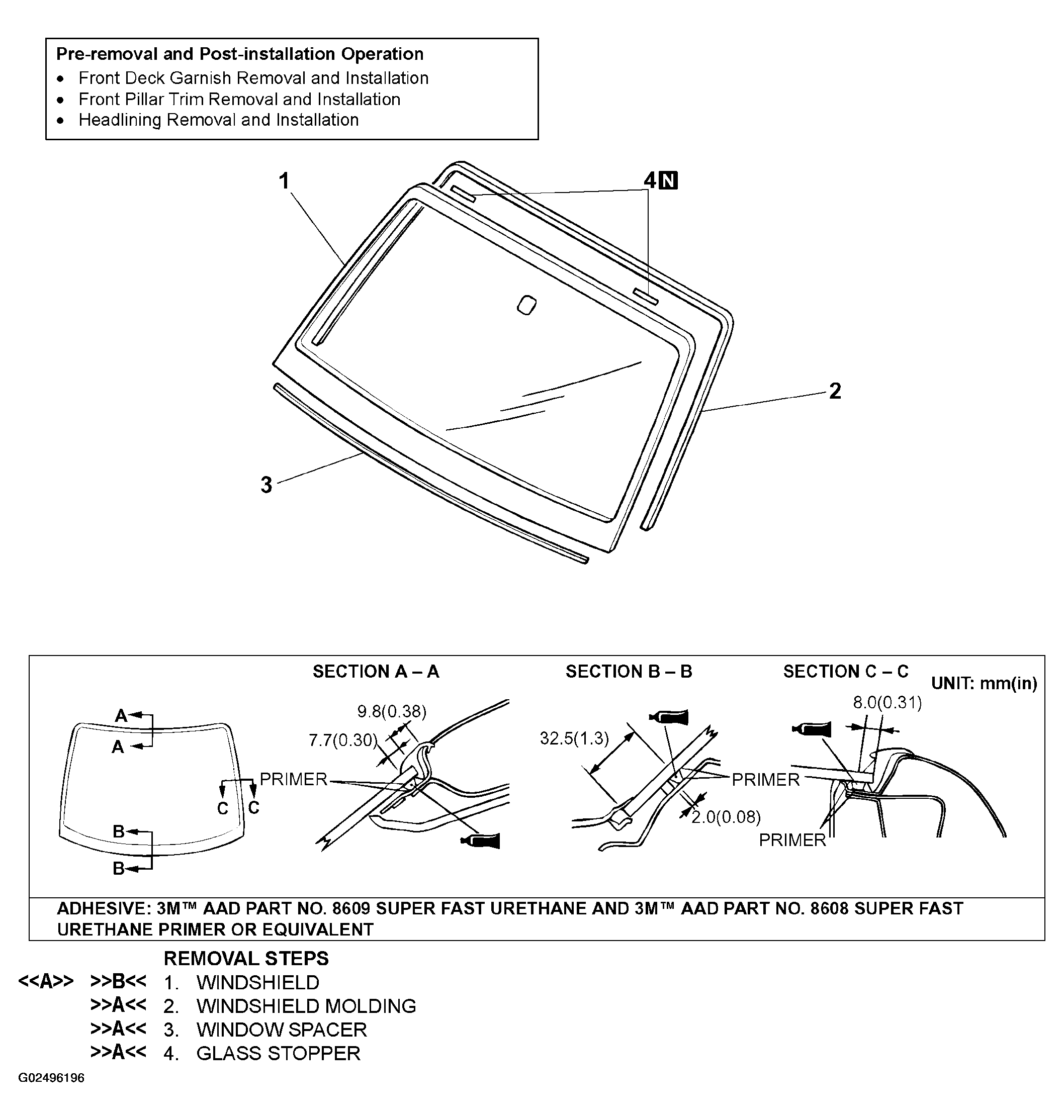

Fig 1: Removal Steps Of Windshield
G02496196Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
