Forward Driving

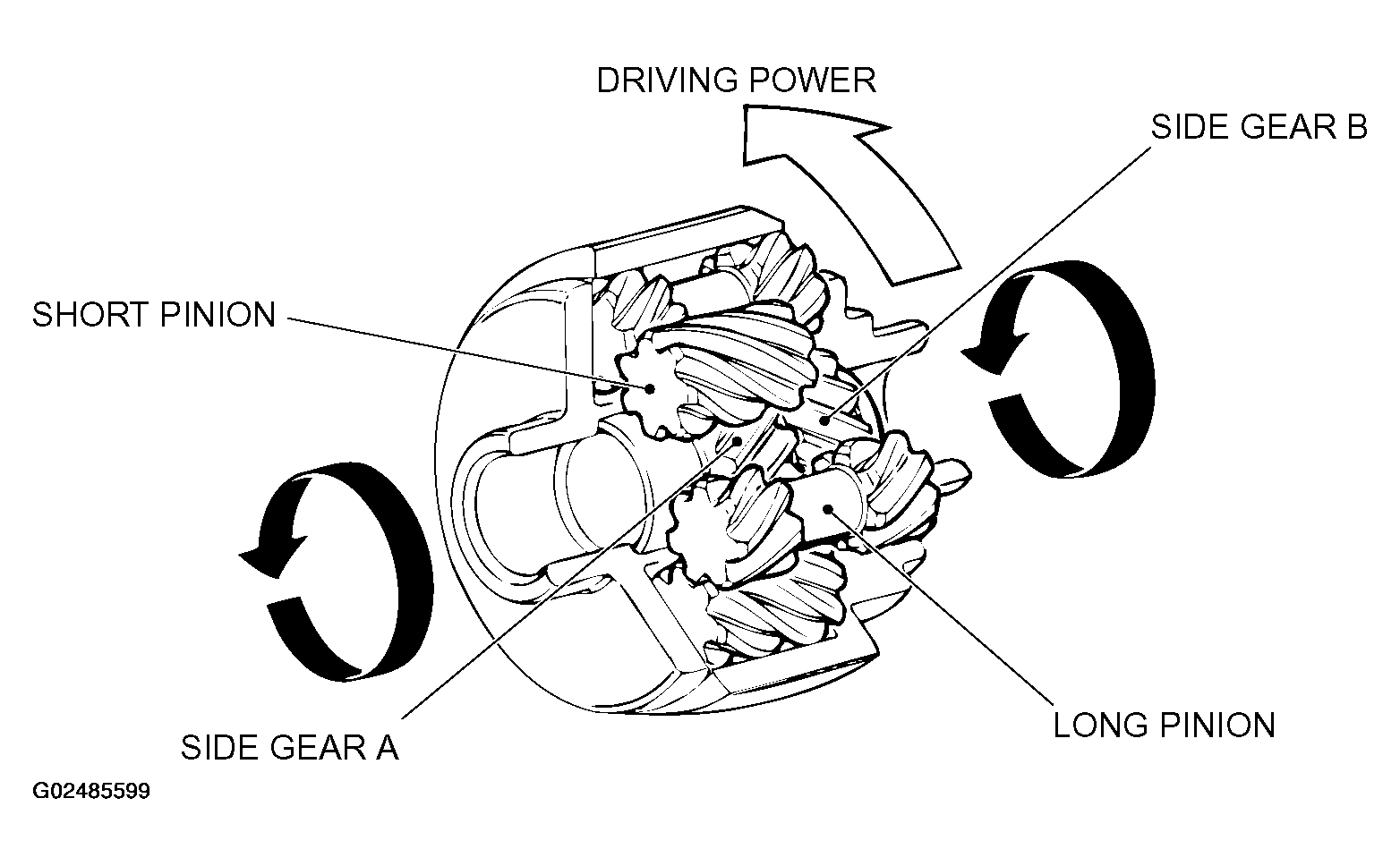

Fig 1: Identifying Power Flow (Forward Driving)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

During forward driving, as the differential case and drive shaft rotate at the same speed, they rotate at the assembly without the inside of the differential moving. The driving force at this time will be transmitted as follows.

• Differential case --> Long and short pinions --> Side gears A and B --> Drive shaft
