Pressure Sensor

Detects the pressure of the accumulator, and sends the signal to the AWD-ECU. The AWD-ECU controls the operations of the electric pump on the basis of this signal.

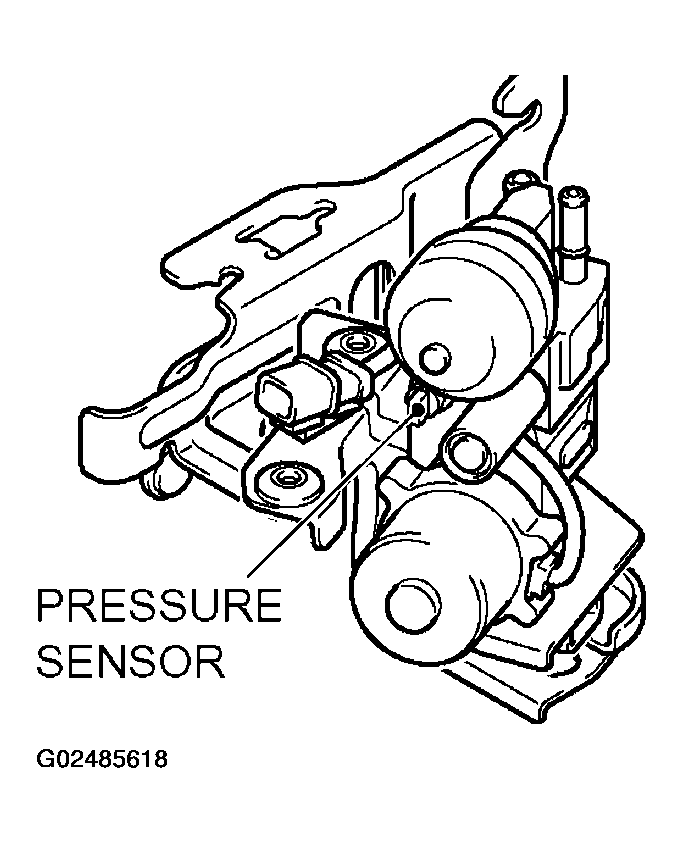

Fig 1: Identifying Pressure Sensor
G02485618Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
