Abs Sensor

Sensor for detecting each wheel speed, which is the same as conventional ABS sensors. For vehicle with ABS, the ABS sensor signal waveform-shaped by the ABS-ECU is input to the AWD-ECU.

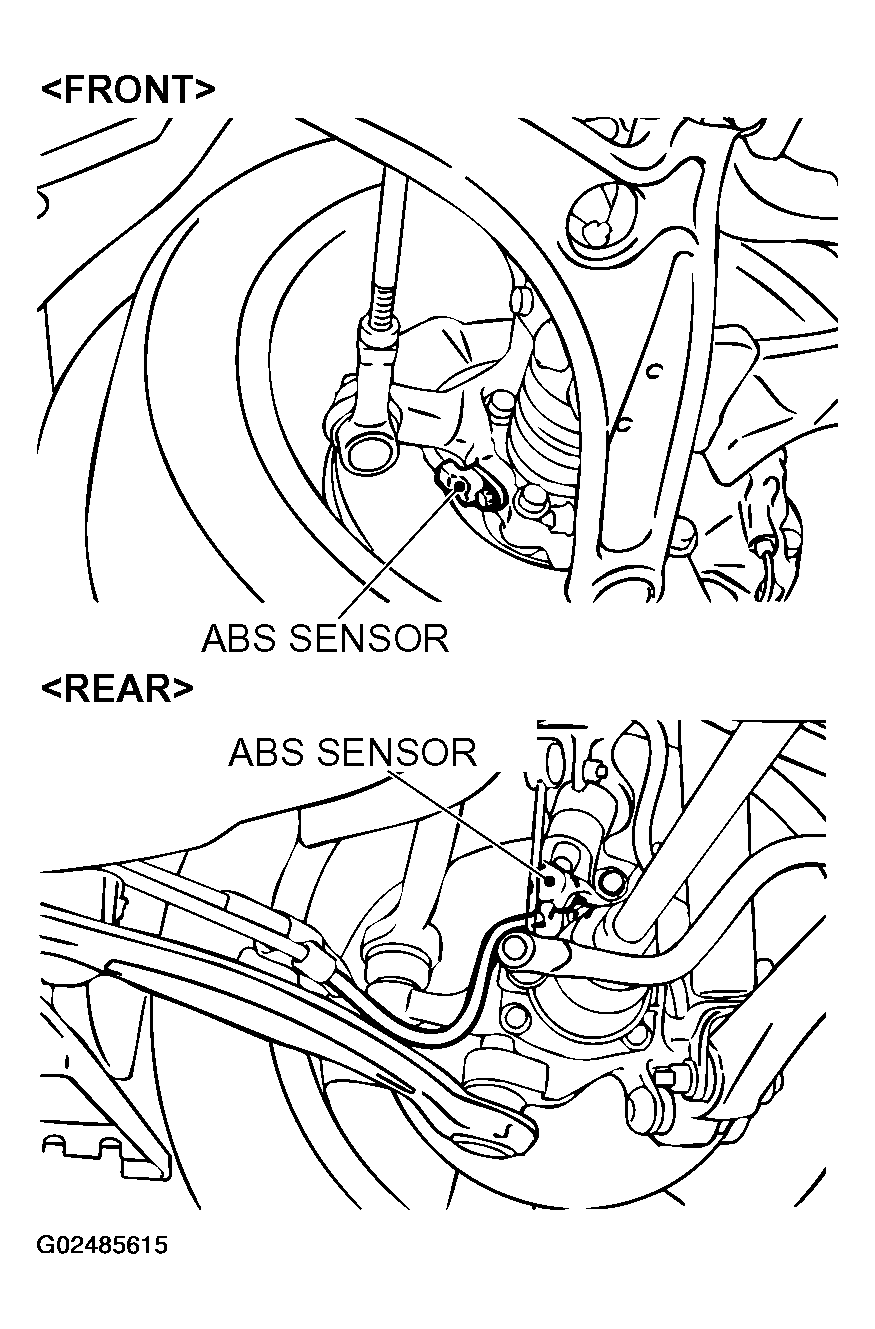

Fig 1: Identifying ABS Sensor
G02485615Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
