On-Vehicle Service - Evolution
>>
Manual Transaxle Diagnosis < ACD >
>>
Data List Reference Table
Data List Reference Table

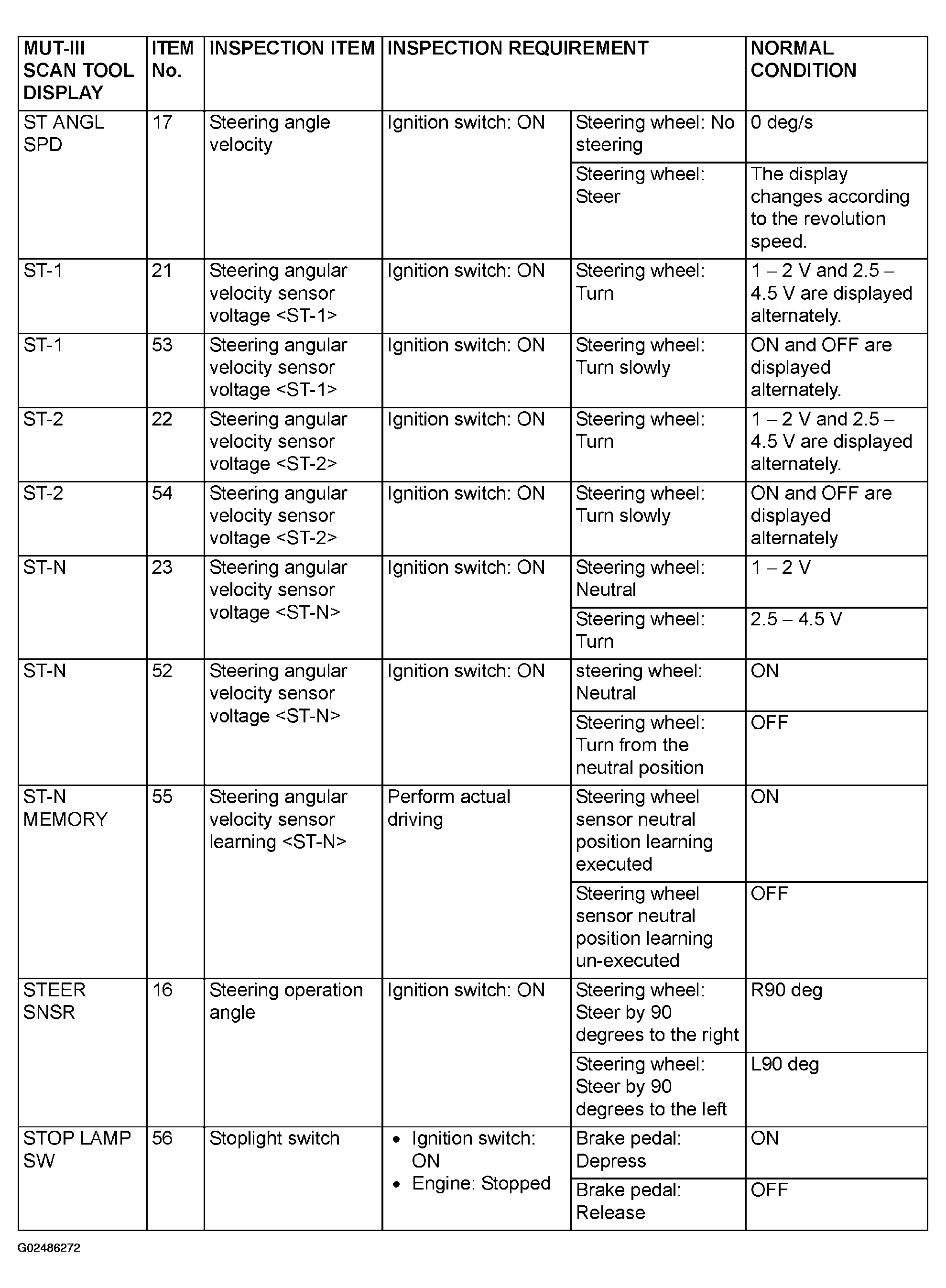

Fig 1: Data List Reference Chart (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

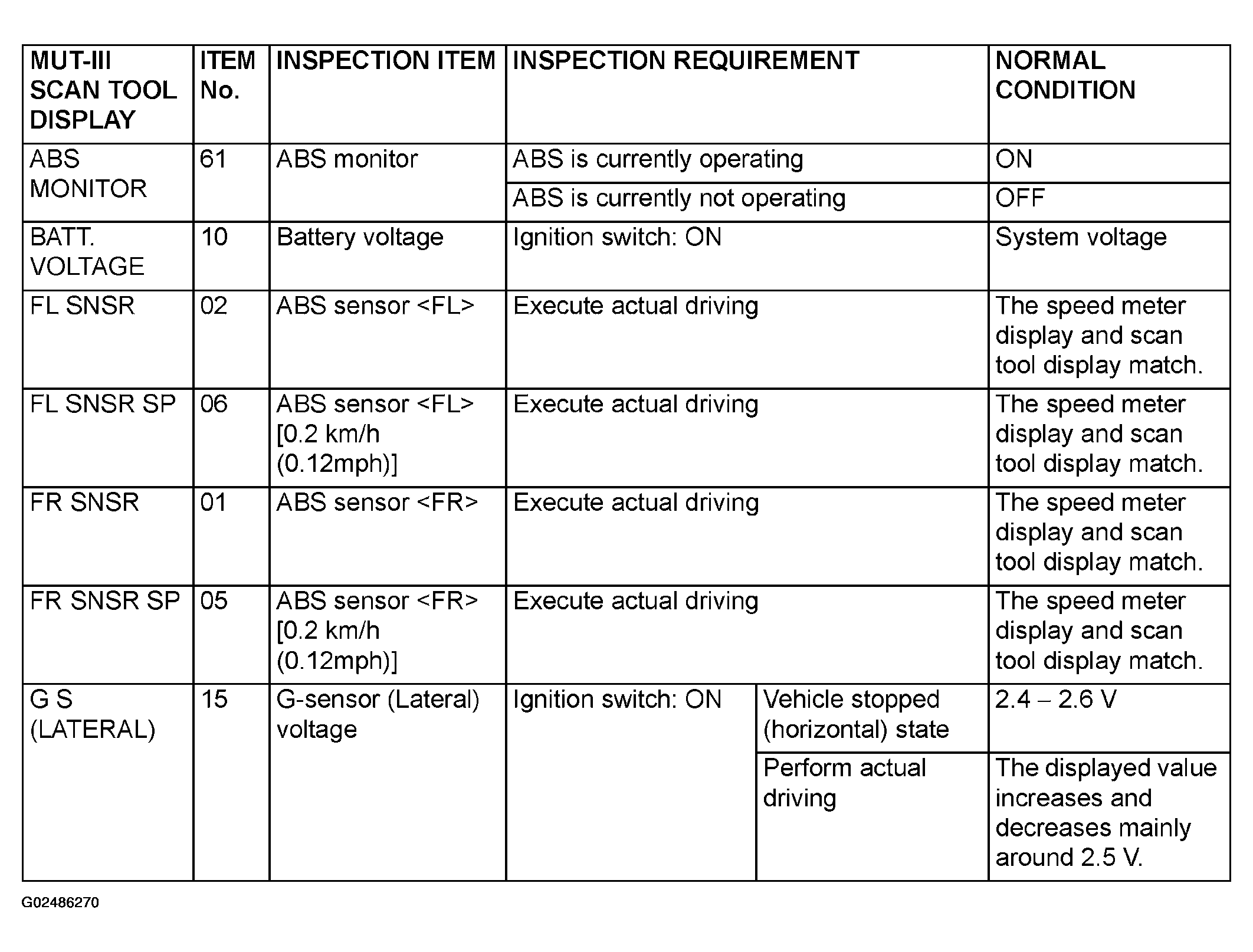

Fig 2: Data List Reference Chart (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

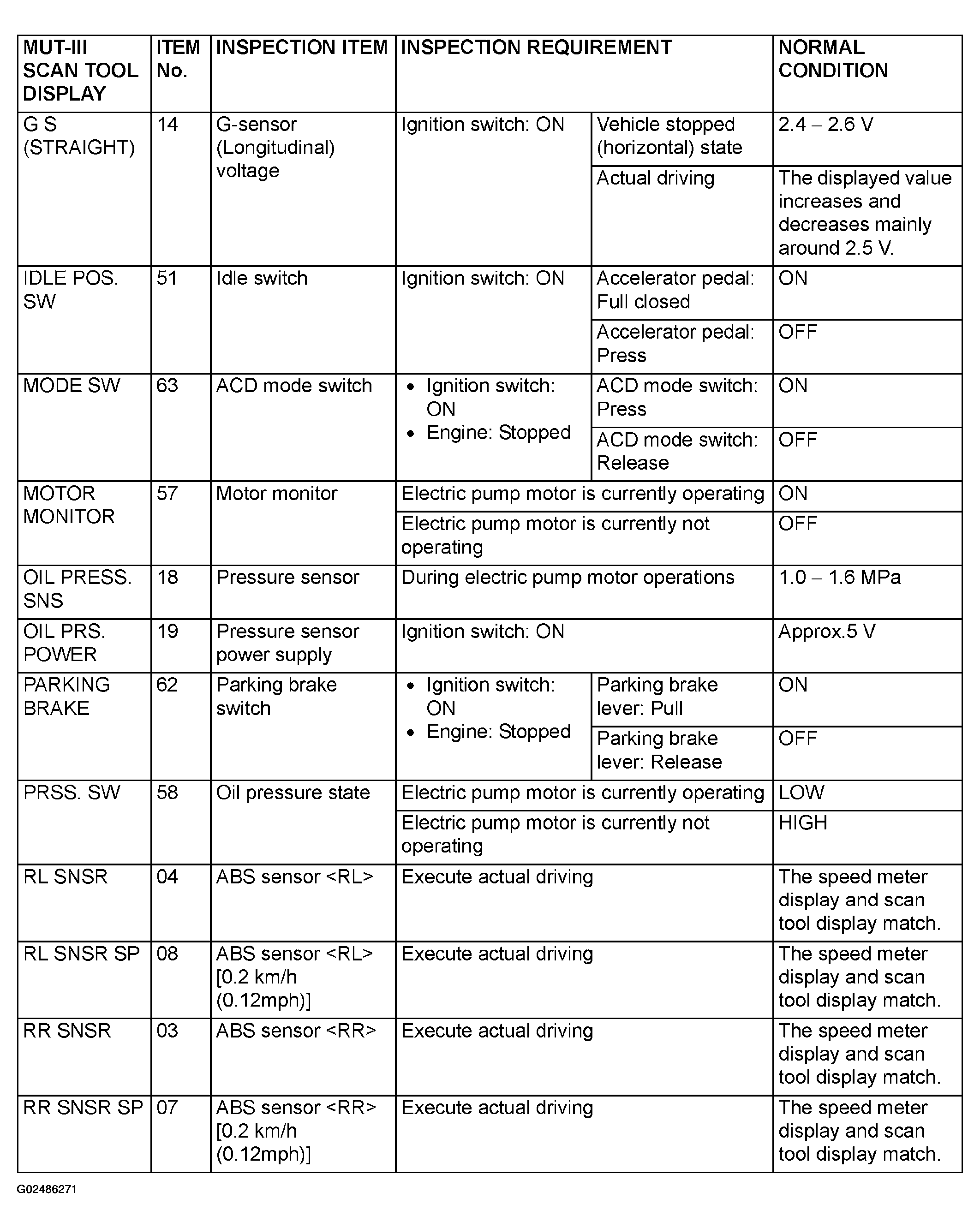

Fig 3: Data List Reference Chart (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

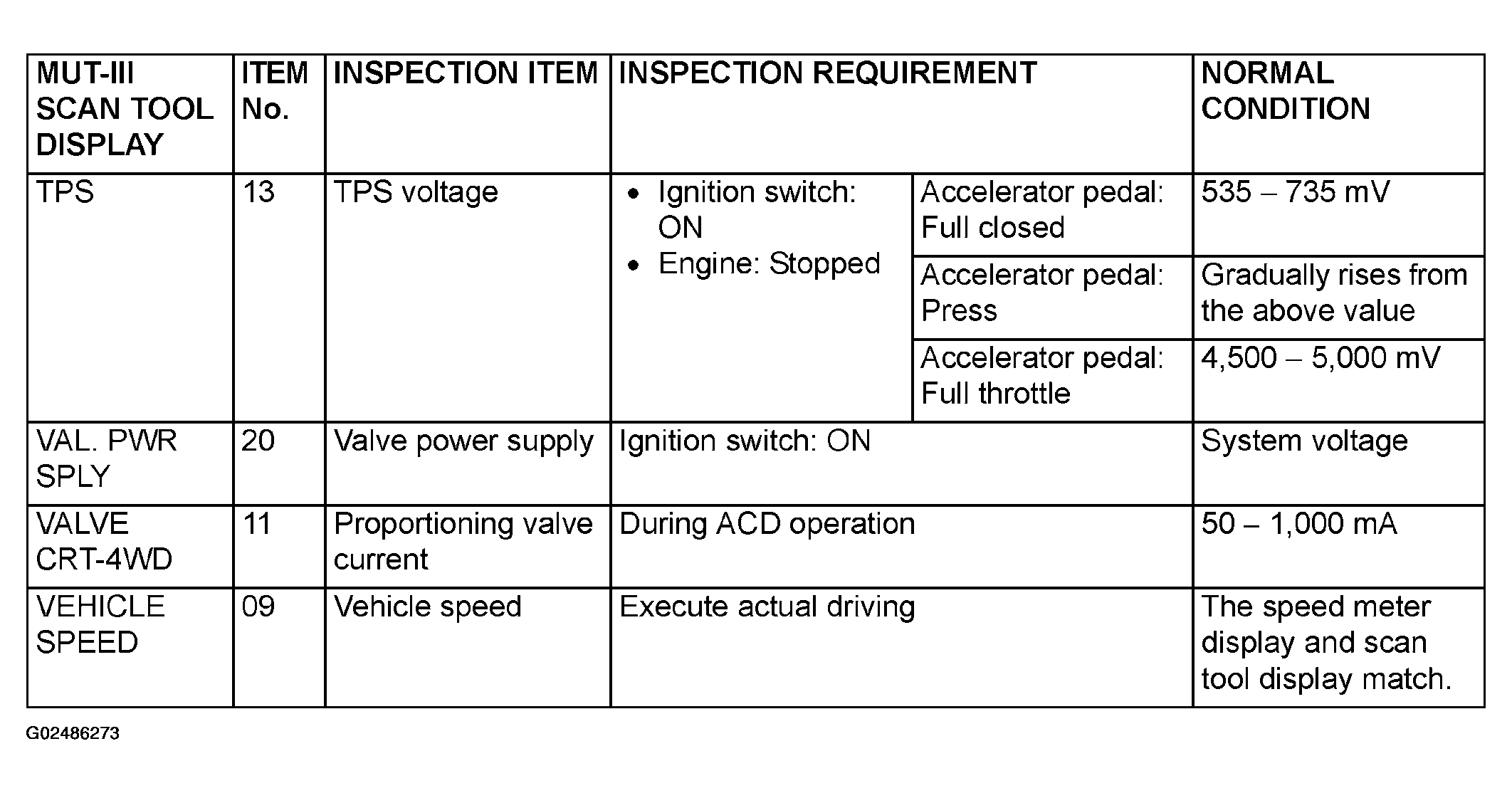

Fig 4: Data List Reference Chart (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
