Removal And Installation: Notes

WARNING: Before removing the steering wheel - driver's air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .

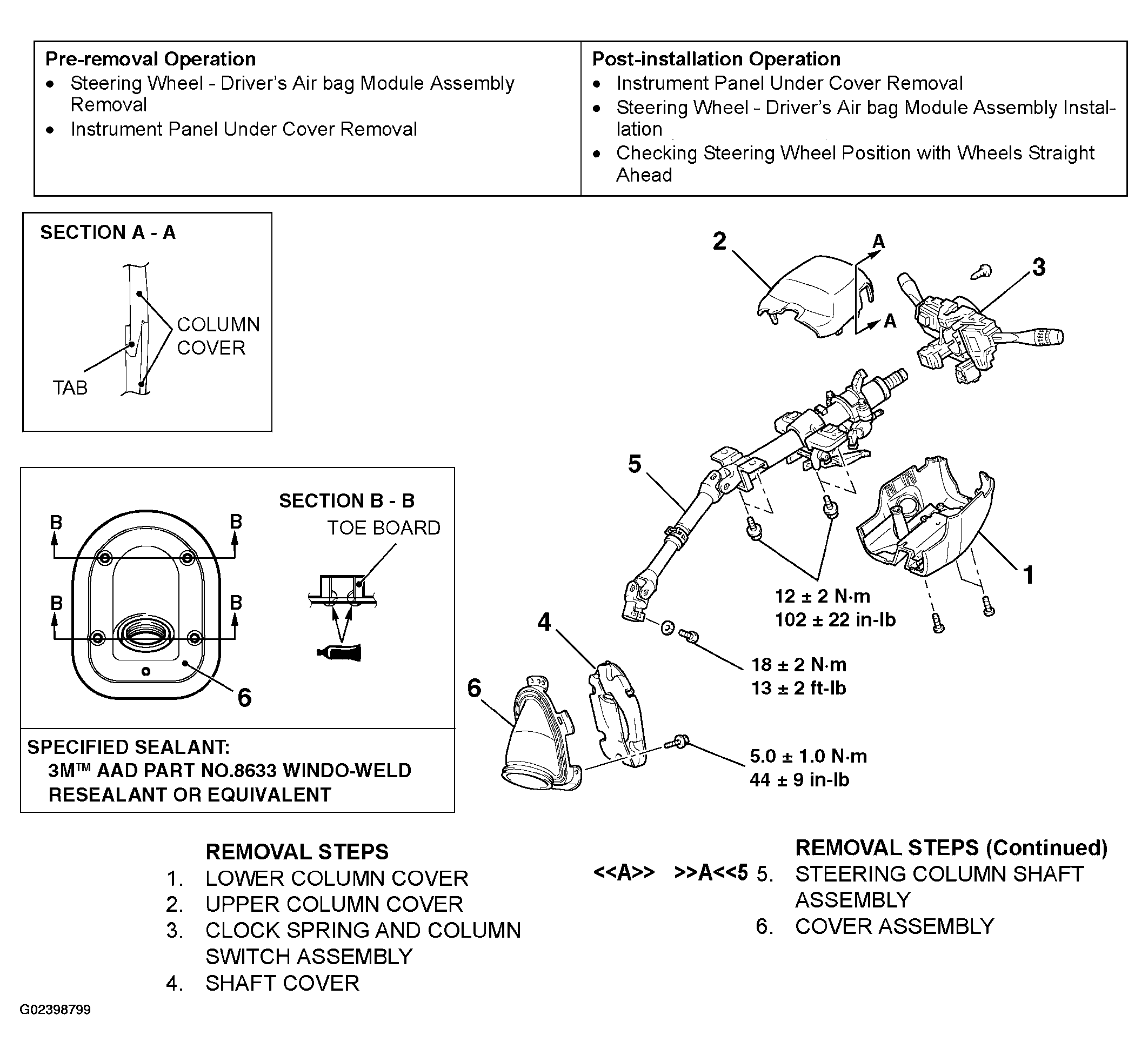

Fig 1: Removing/Installing Steering Shaft
G02398799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
