Disassembly And Assembly: Notes

WARNING: Do not move the tilt lever from the lock position until the installation has completed. If you move it accidentally, the steering column cannot be reinstalled correctly.

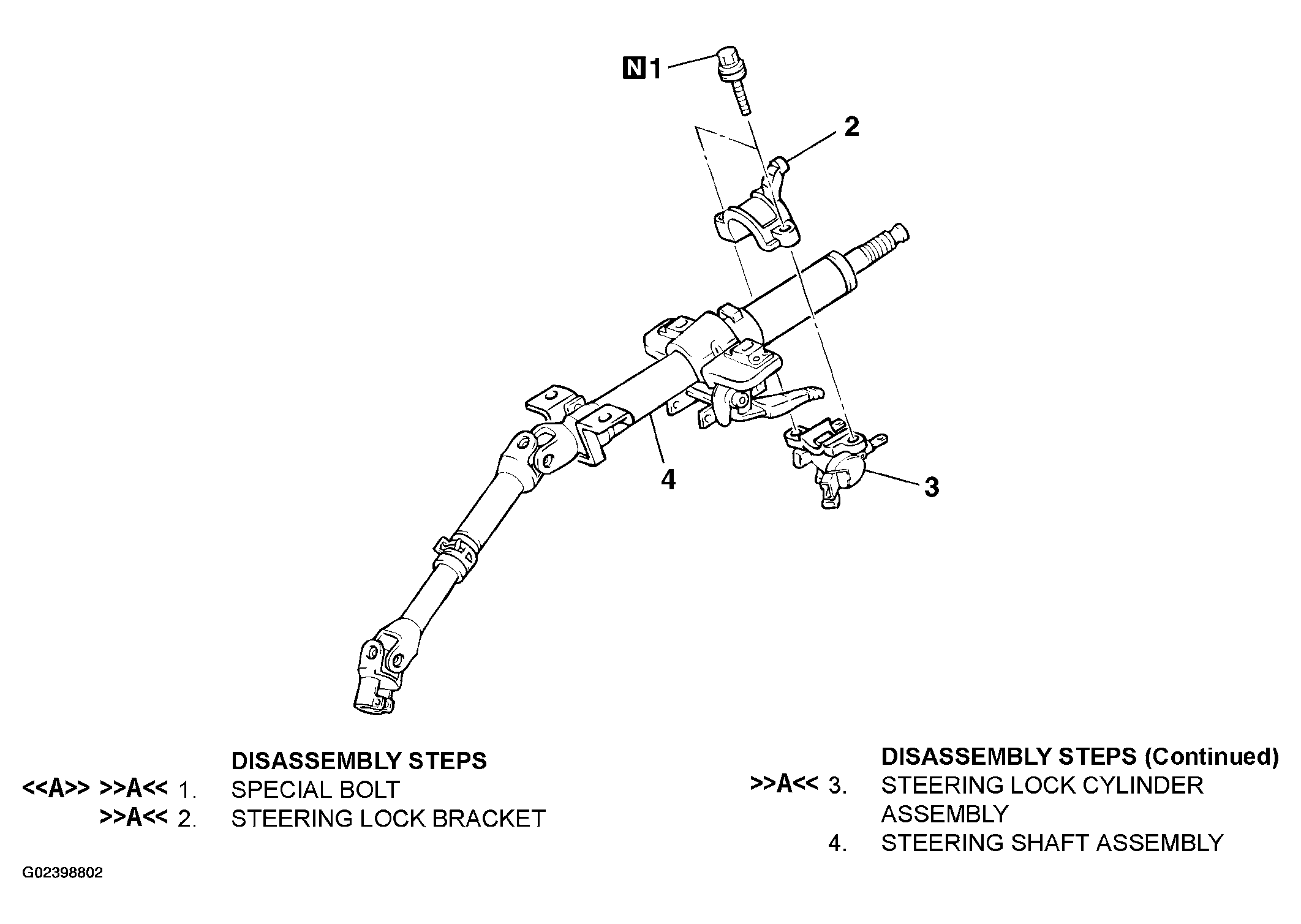

Fig 1: Removing Power Steering
G02398802Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
