Special Tools

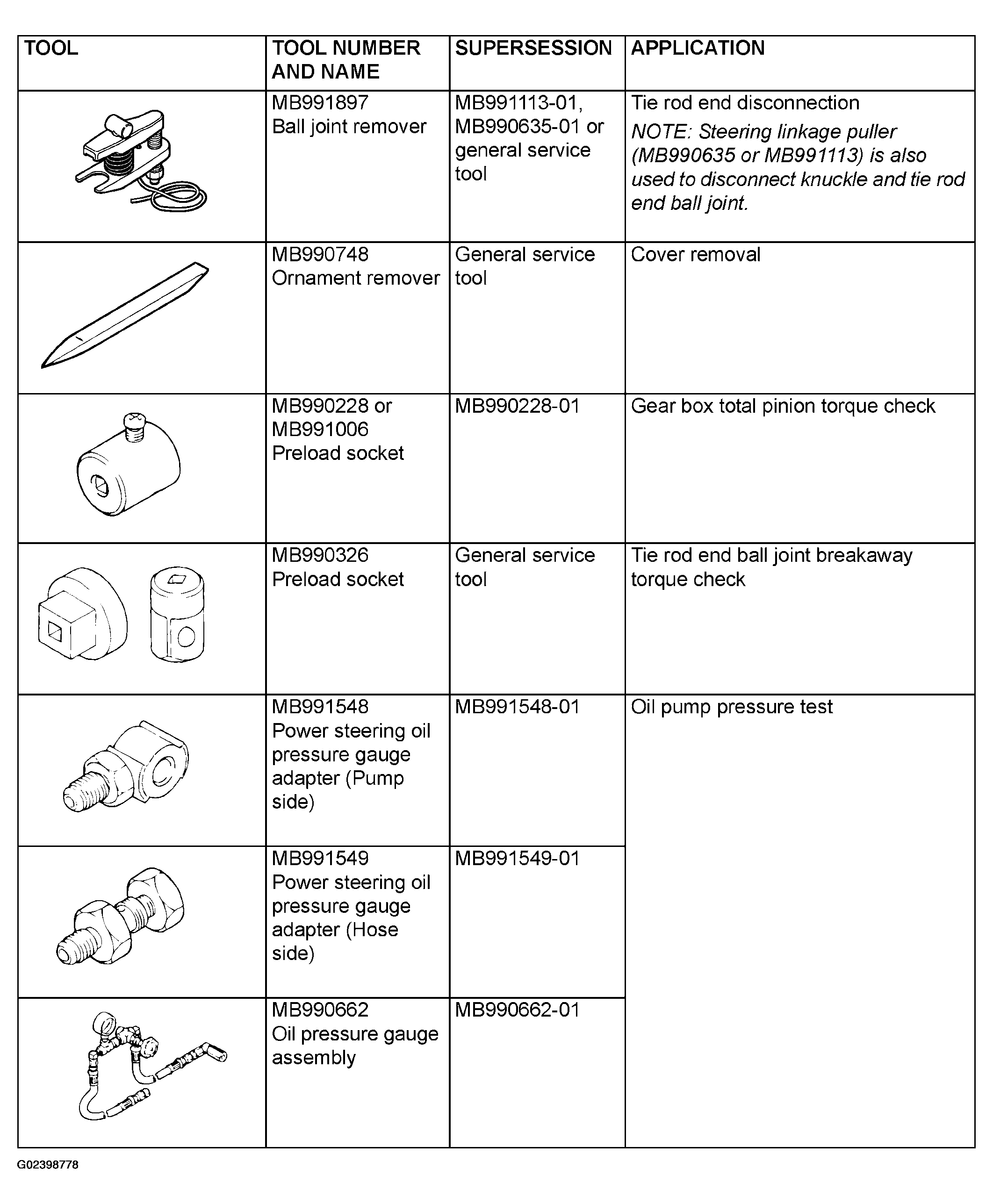

Fig 1: Identifying Special Tools (1 Of 3)
G02398778Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

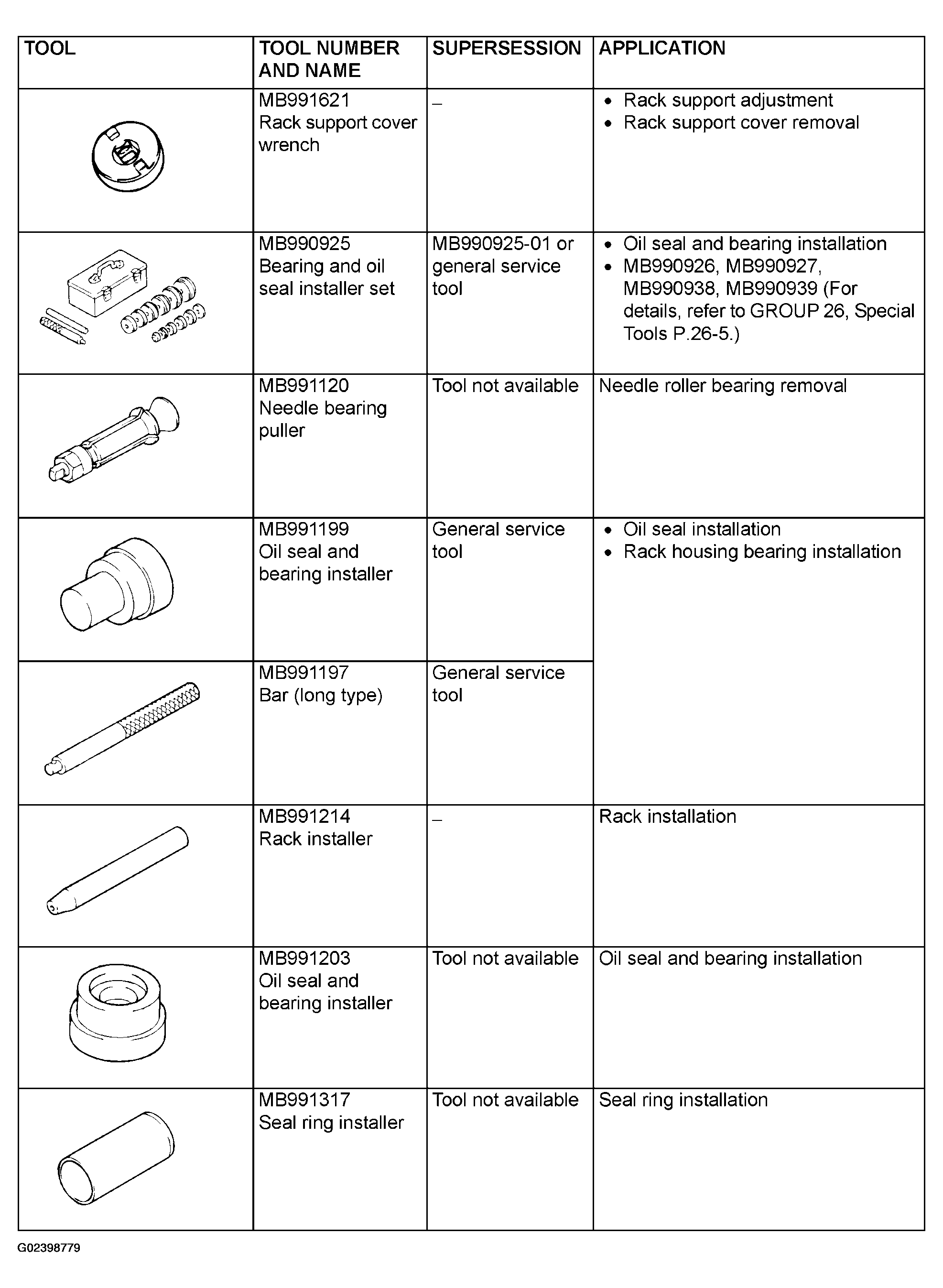

Fig 2: Identifying Special Tools (2 Of 3)
G02398779Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

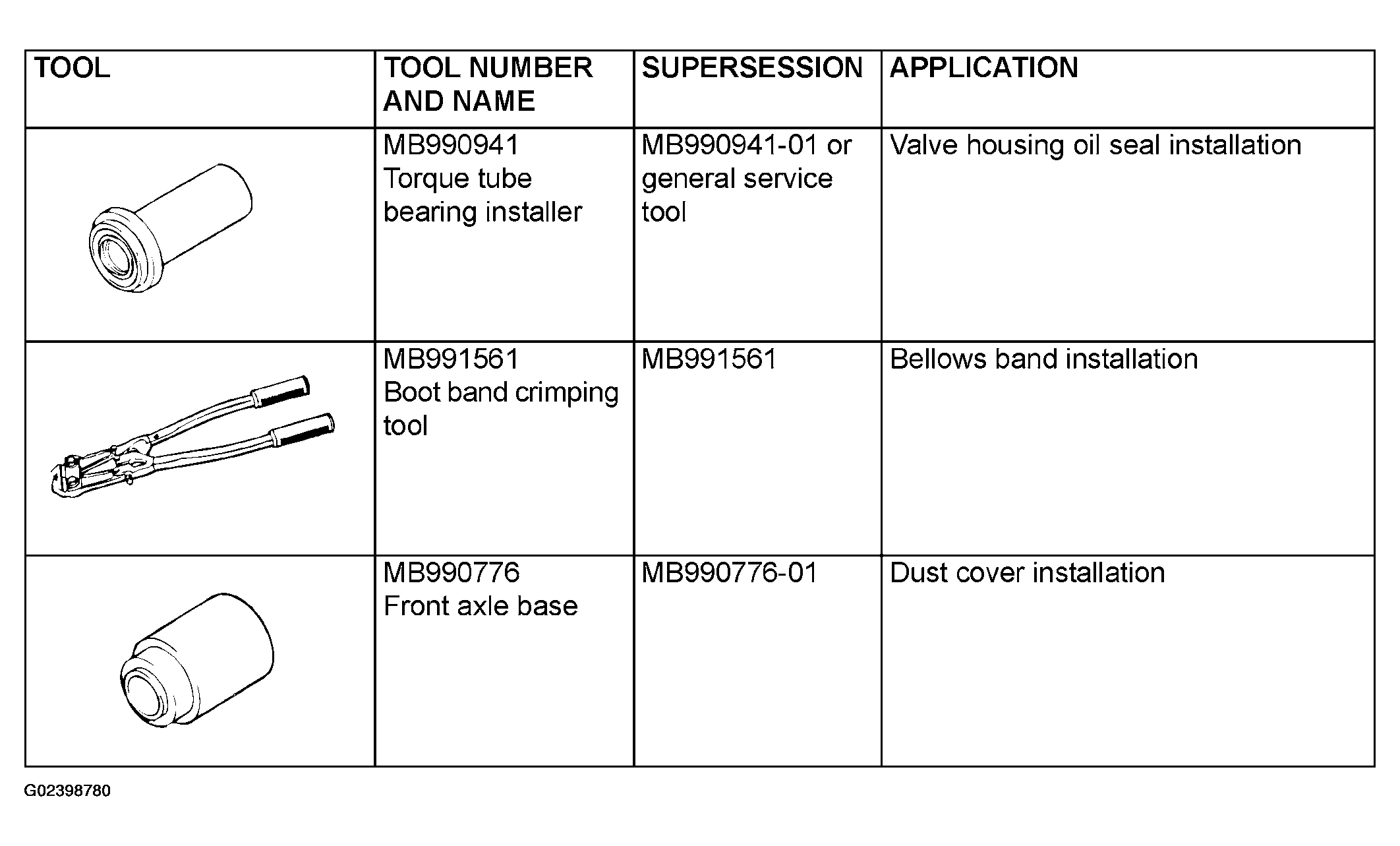

Fig 3: Identifying Special Tools (3 Of 3)
G02398780Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
