Removal And Installation: Notes

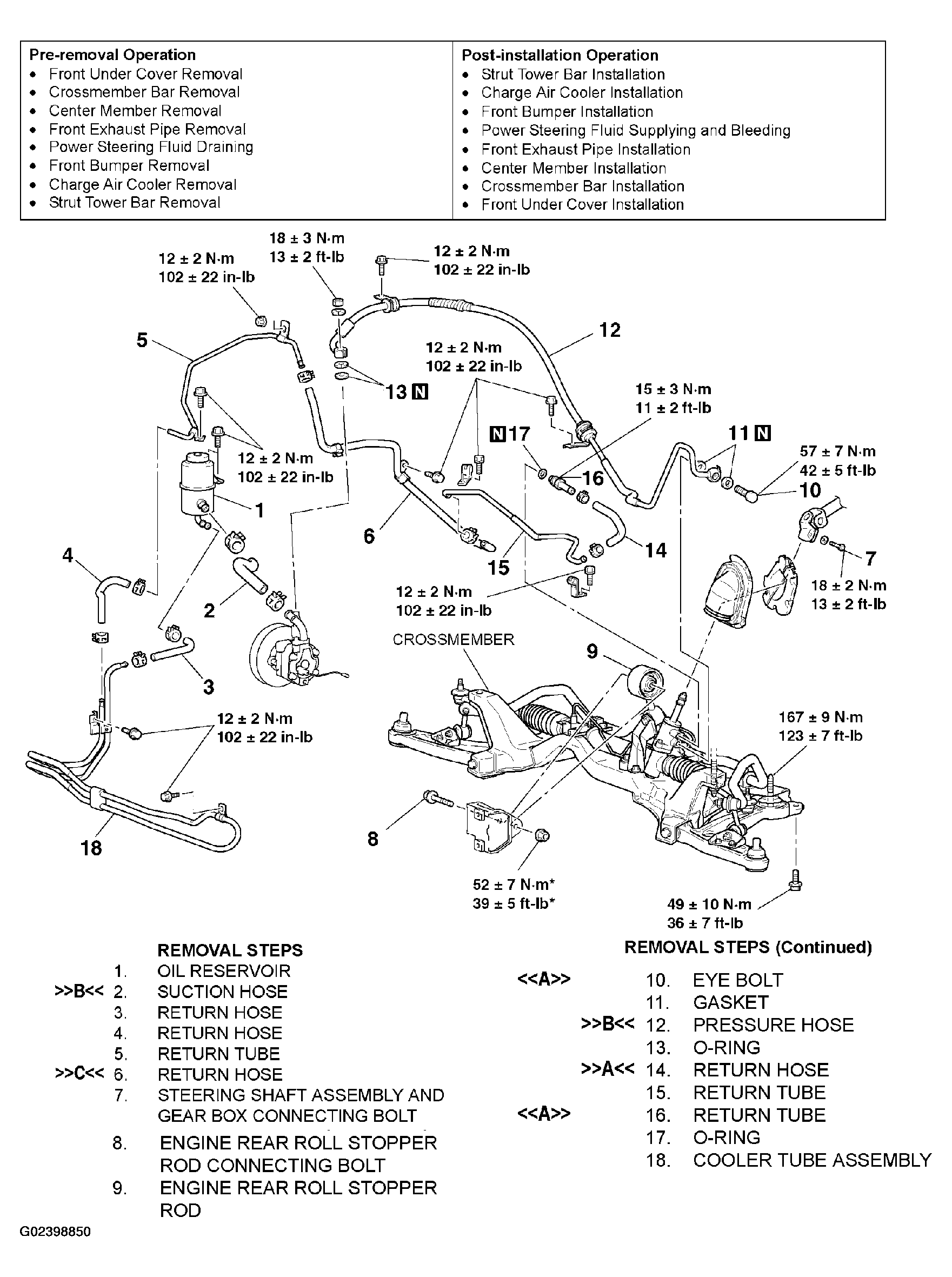

Fig 1: Removing/Installing Power Steering Hoses

G02398850

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
