<< A >> Rack Support Cover Removal

Using special tool MB991621, remove the rack support cover from the gear box.

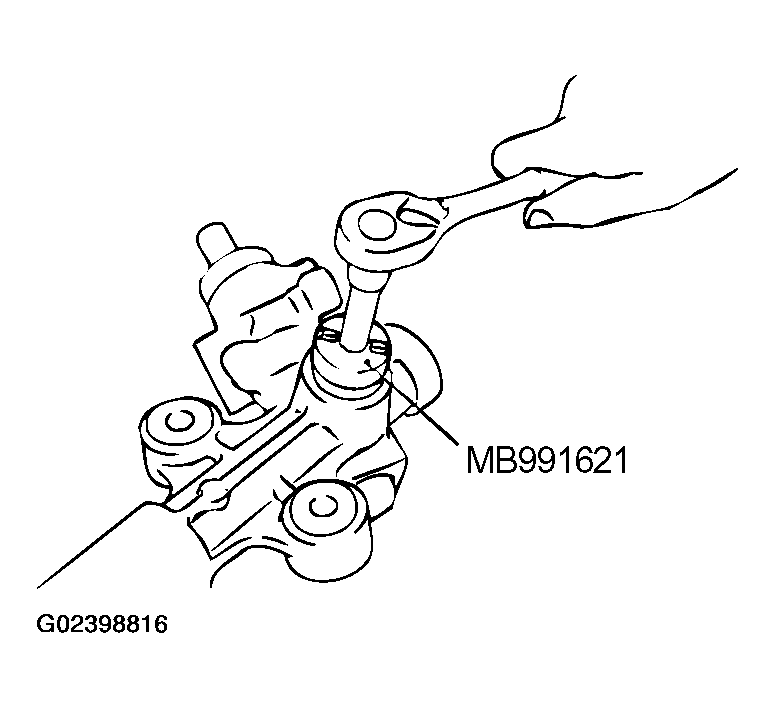

Fig 1: Removing Rack Support Cover From Gear Box
G02398816Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
