Front Impact Sensor

  1. Check the radiator support panel for distortion and rust.
  2. Check the front impact sensor for dents, cracks, deformation or rust.
  3. Check the front impact sensor wiring harness for binding, check the connector for damage, and check the terminals for deformation.

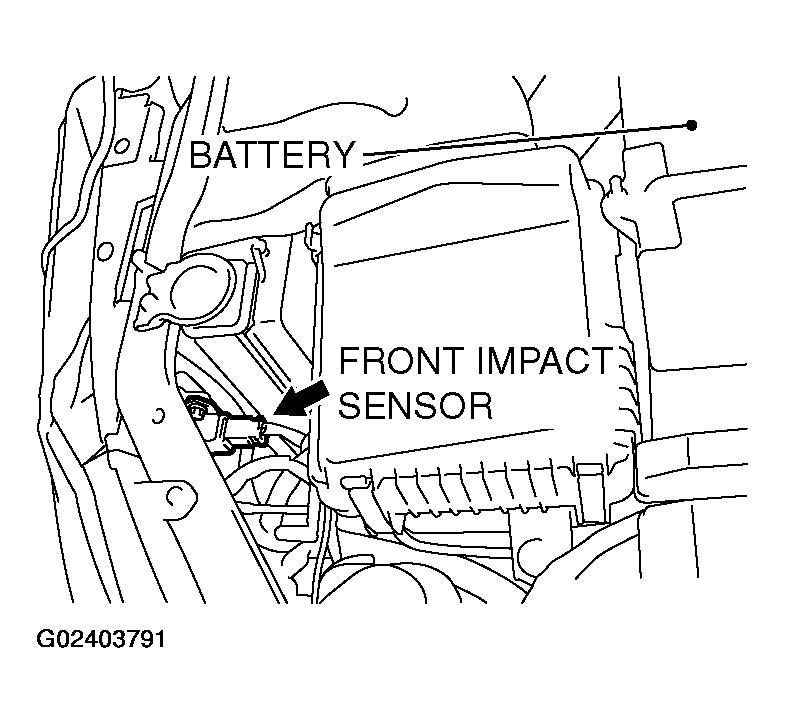

    Fig 1: Identifying Front Impact Sensor
    G02403791Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
